6.4.1.4 SIMOTION devices in the hardware catalog
You can find the SIMOTION devices in the corresponding directories of the hardware catalog
in HW Config.
With SIMOTION D, the SINAMICS version is selected in addition to the SIMOTION version.
The SIMOTION version determines whether one or more SINAMICS versions are available.
Adding interfaces
After you have inserted the SIMOTION device, the dialog for configuring the interfaces opens
Note
With SIMOTION D, the PROFIBUS subnet PROFIBUS Integrated DP master system is created
and configured automatically. The user may neither configure nor select it!

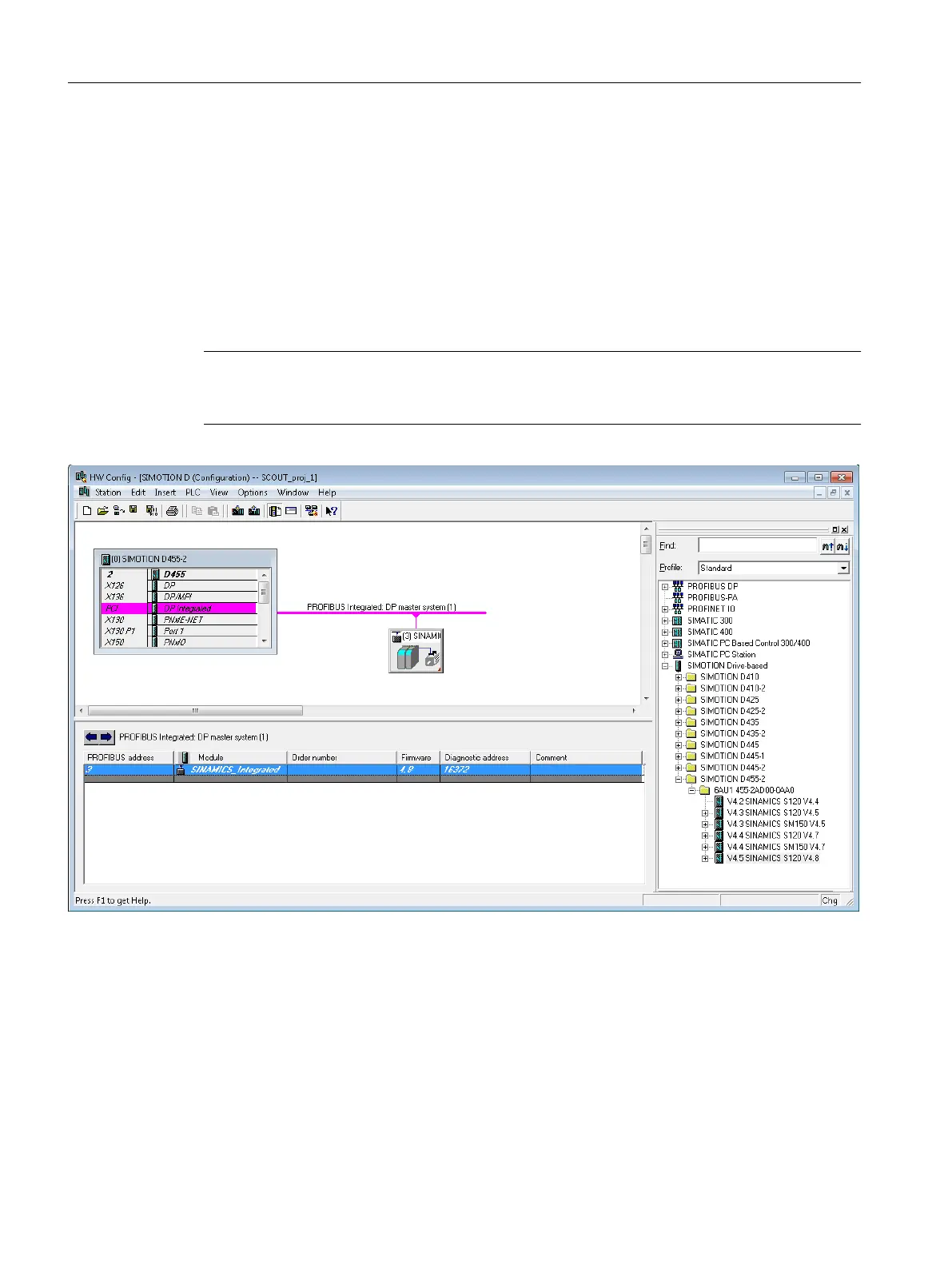

Figure 6-8 Hardware configuration of a D4x5
Detailed information on the configuration of the SIMOTION device is contained in the
corresponding documentation for the SIMOTION devices.
6.4.2 Selecting technology packages
The technology packages (e.g. TP CAM, TP PATH, DCBlib) are available in various versions
for installation purposes.
Configuring/parameterizing
6.4 Configuring devices
SIMOTION SCOUT
80 Configuration Manual, 11/2016
