3. Double-click Insert LAD/FBD program.
The Insert LAD/FBD program dialog opens.

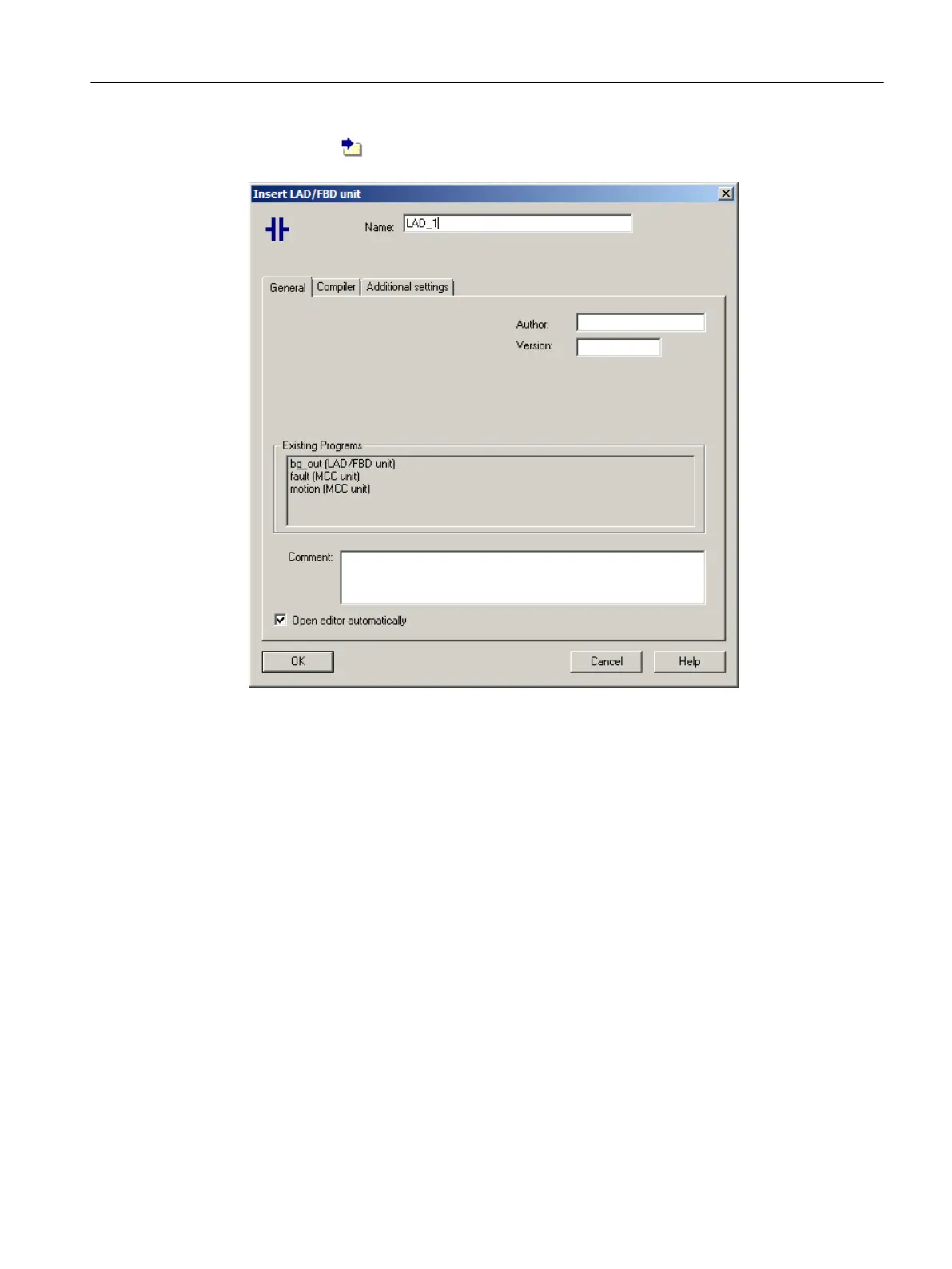

Figure 6-35 Inserting the LAD/FBD program
4. Assign a name, LAD_1 in the example. The name must be unique throughout the project.
5. Select the creation type Program.
6. Click OK to confirm.
Configuring/parameterizing
6.6 Programming the SIMOTION application
SIMOTION SCOUT
Configuration Manual, 11/2016 123
