Programming and Operating Manual (Milling)
138 6FC5398-4DP10-0BA1, 01/2014
Programming example1: Rigid tapping

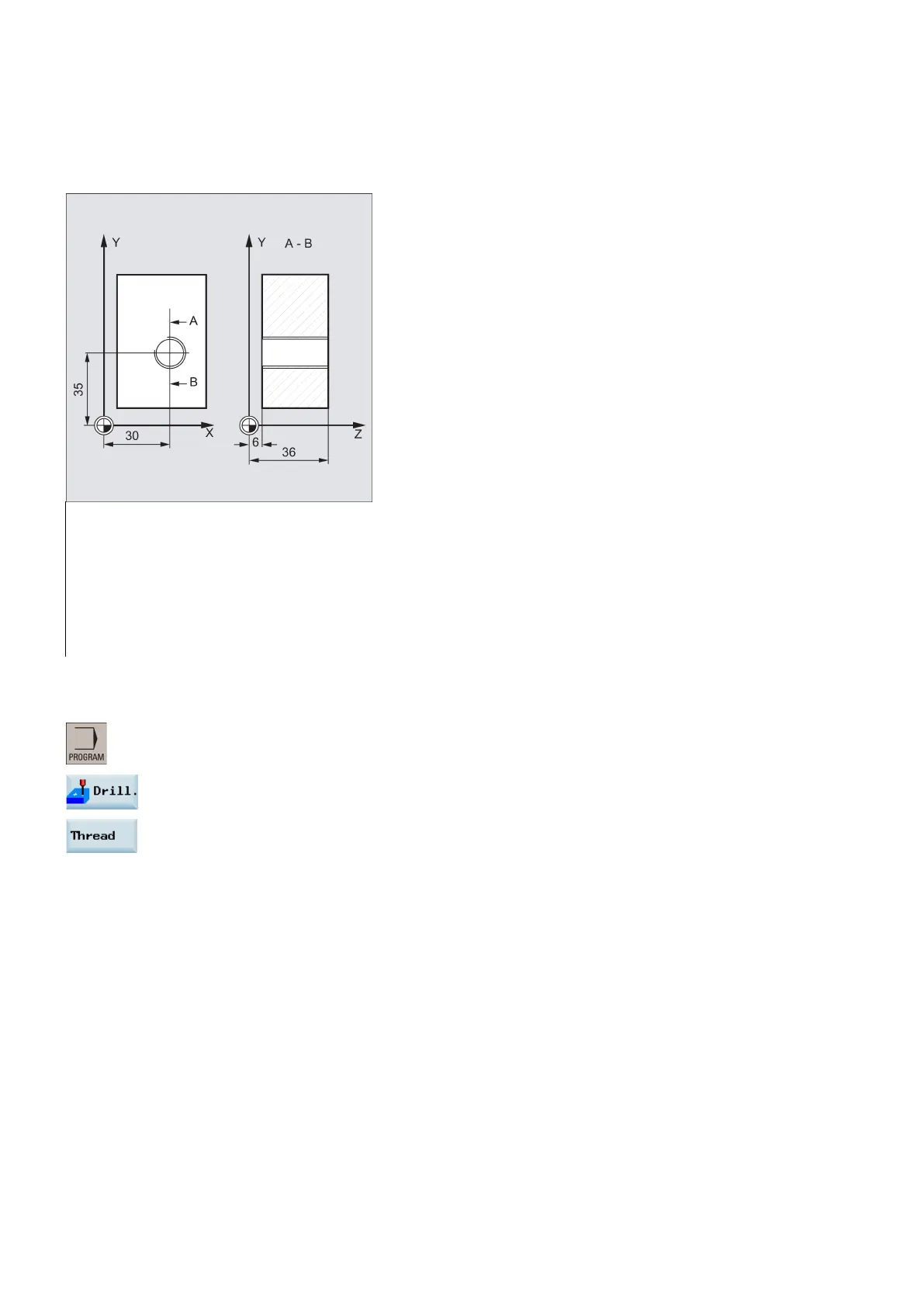

A thread is tapped without compensating chuck at position X30 Y35 in the XY plane; the tapping axis is the Z axis. No dwell
time is programmed; the depth is programmed as a relative value. The parameters for the direction of rotation and for the
lead must be assigned values. A metric thread M5 is tapped.
; Specification of technology values
; Approach drilling position
N30 CYCLE84(20,0,3,-15,,1,3,6,,0,500,500,3,0,0,0,5,0) Cycle call; parameter PIT has been
omitted; no value is entered for the
absolute depth or the dwell time; spindle
stop at 90 degrees; speed for tapping is
200, speed for retraction is 500
Programming example 2: Rigid tapping
Proceed through the following steps:
Select the desired operating area.
Open the vertical softkey bar for available drilling cycles.
Press this softkey from the vertical softkey bar.
To Next Page
