Programming and Operating Manual (Milling)
6FC5398-4DP10-0BA1, 01/2014
135

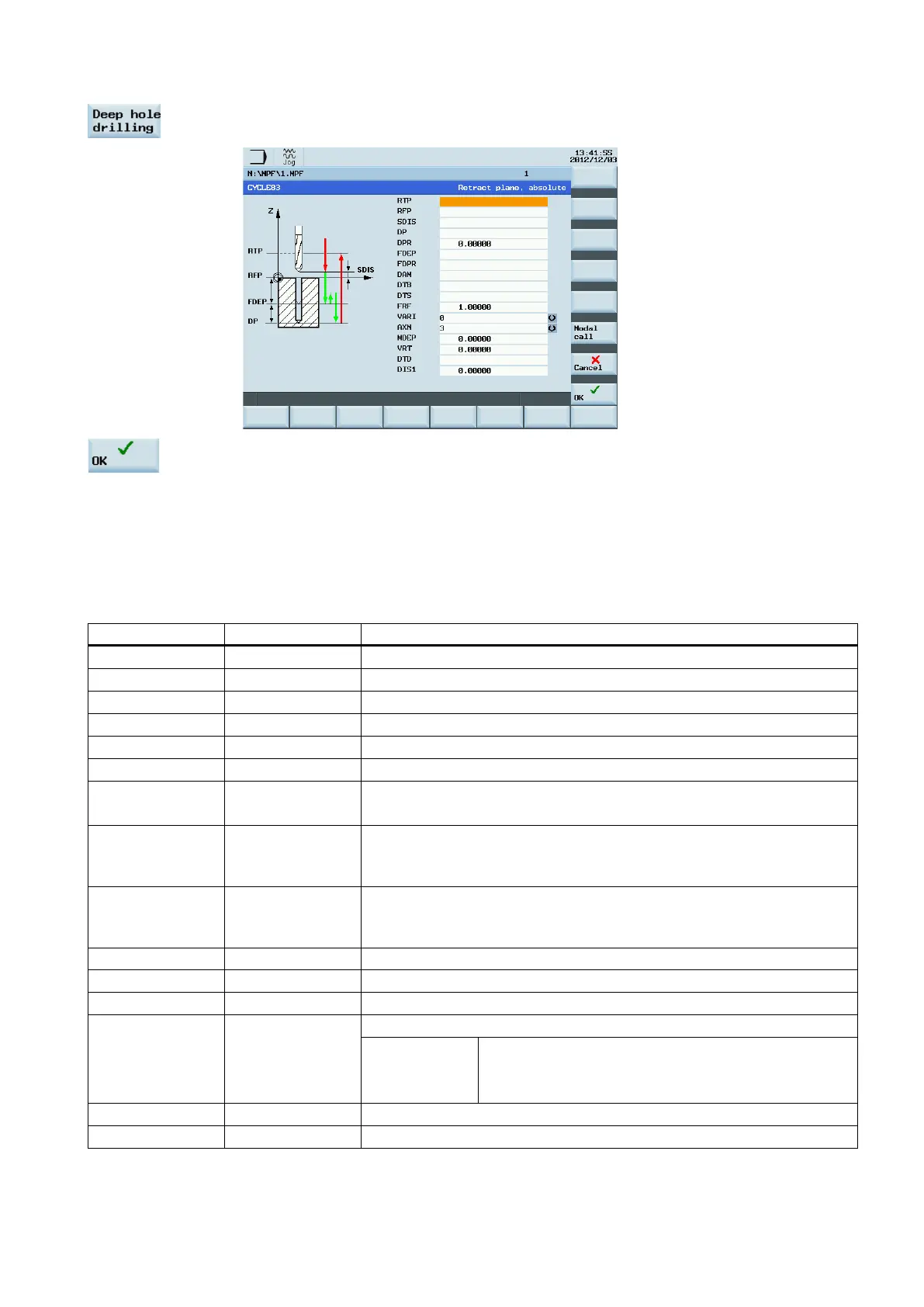

Press this softkey to open the window for CYCLE83. Parameterize the cycle as desired.
Confirm your settings with this softkey. The cycle is then automatically transferred to the program
editor as a separate block.
Rigid tapping - CYCLE84
Programming
CYCLE84 (RTP, RFP, SDIS, DP, DPR, DTB, SDAC, MPIT, PIT, POSS, SST, SST1, AXN, 0, 0, VARI, DAM, VRT)
RTP REAL Retraction plane (absolute)
RFP REAL Reference plane (absolute)
SDIS REAL Safety clearance (enter without sign)
DP REAL Final drilling depth (absolute)
DPR REAL Final drilling depth relative to the reference plane (enter without sign)
DTB REAL Dwell time at thread depth (chip breakage)
SDAC INT Direction of rotation after end of cycle
Values: 3, 4 or 5 (for M3, M4 or M5)
MPIT REAL Thread lead as a thread size (signed):
Range of values 3 (for M3) to 48 (for M48); the sign determines the direction
of rotation in the thread
PIT REAL Thread lead as a value (signed)
Range of values: 0.001 ... 2000.000 mm); the sign determines the direction of
rotation in the thread
POSS REAL Spindle position for oriented spindle stop in the cycle (in degrees)
SST REAL Speed for tapping
SST1 REAL Speed for retraction
AXN INT Tool axis
Values
1)
: 1: 1st axis of the current plane
2: 2nd axis of the current plane
3: 3rd axis of the current plane
PSYS INT Internal parameter; only the default value 0 is possible
PSYS INT Internal parameter; only the default value 0 is possible
