Programming and Operating Manual (Milling)
6FC5398-4DP10-0BA1, 01/2014
15

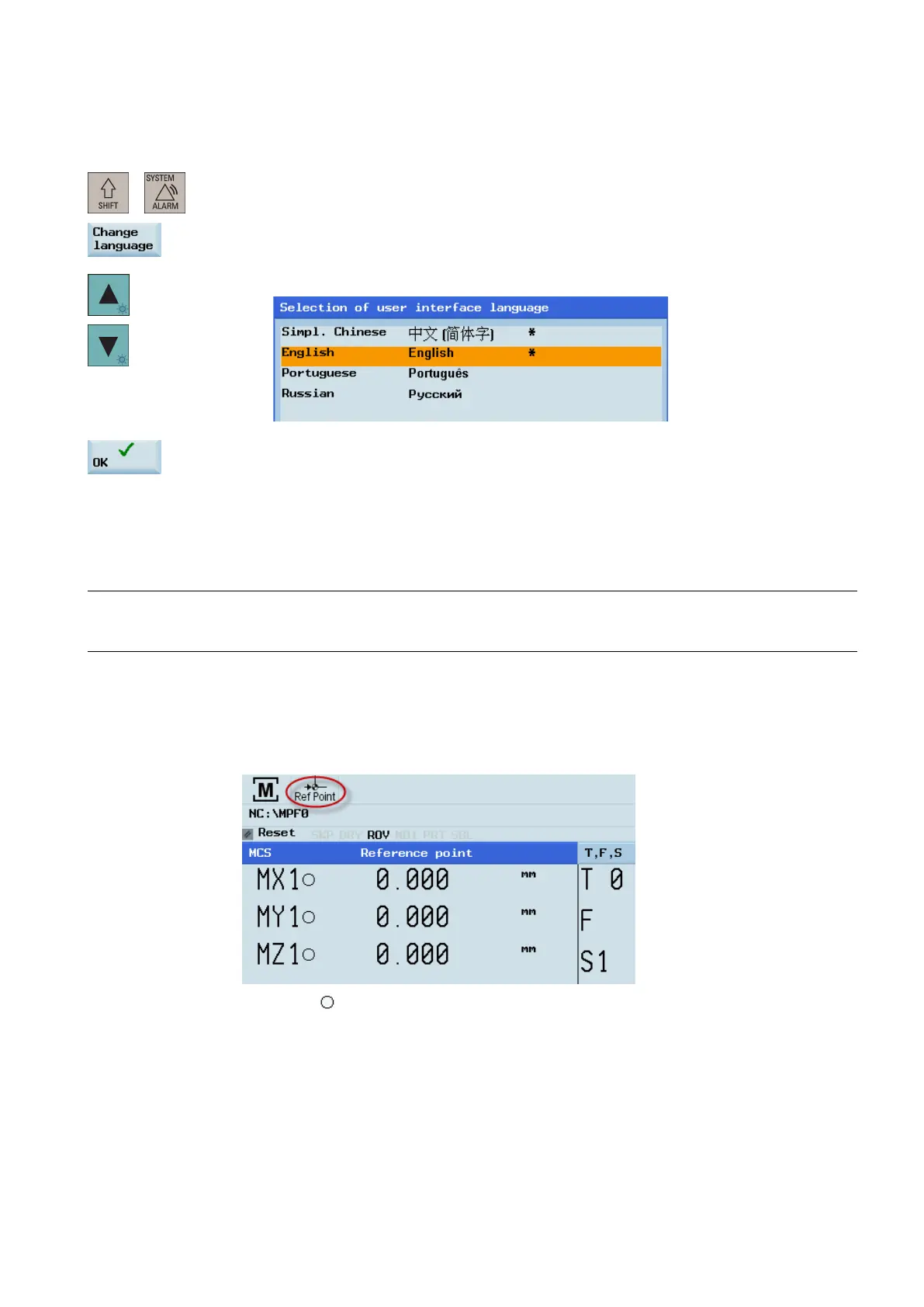

Setting user interface language
Operating sequence
+
1. Select the desired operating area.
2. Press this softkey to open the user interface language selection window.
3. Use the cursor keys to select the desired language.
4. Press this softkey to confirm your selection.
The HMI (Human Machine Interface) is automatically restarted when a new language is
selected.
Turning on, reference point approach
When turning on/off the CNC and the machine, also observe the machine tool manufacturer's documentation, since turning
on and reference point approach are machine-dependent functions.
1. Switch on the power supply for the control system and the machine.
2. Release all emergency stop buttons on the machine.
By default, the control system is in the "REF POINT" window after booting.
The symbol shown on the screen indicates that the axis is not yet referenced. If an axis is not
referenced, the symbol is always visible in the current (machining) operating area.
