Programming and Operating Manual (Milling)
218 6FC5398-4DP10-0BA1, 01/2014
CYCLE71( 50.00000, 1.00000, 2.00000, 0.00000, 0.00000, 0.00000, 50.00000, -50.00000,
,1.00000, 40.00000, ,0.10000, 300.00000, 11, )
S4000 M3
CYCLE71( 50.00000, 0.10000, 2.00000, 0.00000, 0.00000, 0.00000, 50.00000, -50.00000,
,1.00000, 40.00000, ,0.00000, 250.00000, 32, )
T2 D2 ;ENDMILL
M6
S3500 M6
CYCLE72( "SUB_PART_2", 50.00000, 0.00000, 2.00000, -5.00000, 2.00000, 0.10000, 0.10000,
300.00000, 300.00000, 11, 42, 1, 4.00000, 300.00000, 1, 4.00000)
T4 D1 ;ENDMILL D10
M6
S4000 M3
G0 X55 Y-15
G0 Z2
G1 F300 Z-8
G42 G1 Y-15 X50
G1 X44 Y-2 RND=2
G1 Y0 X 22
G40 Y30
Subroutine name: SUB_PART_2
Subroutine content:
G17 G90
G0 X3 Y3
G2 X3.27 Y-40.91 I=AC(-52.703) J=AC(-19.298)
G3 X46.27 Y-47 I=AC(38.745) J=AC(54.722)
G1 X42 Y-8
X3 Y3

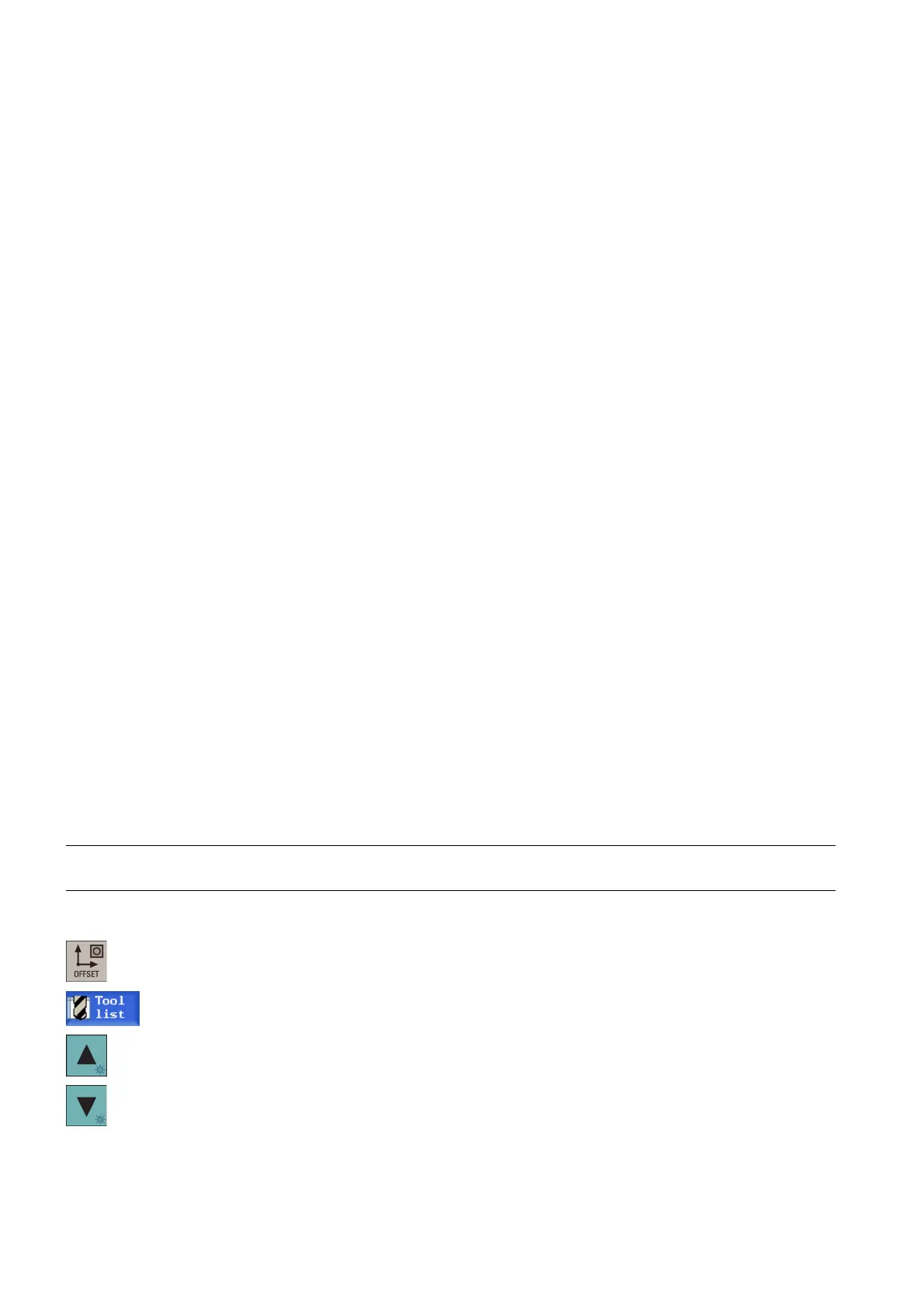

Creating a new cutting edge
You can load the machine with a maximum of 128 cutting edges and create a maximum of nine cutting edges for each tool.
Select the desired operating area.
Open the tool list window.
Select the tool to which you desire to add a cutting edge.
To Next Page
