1.2
Machine control panels
1.2.1
Overview
Elements on the MCP (Machine Control Panel) front
The SINUMERIK 808D MCP is available in the following variants:
● Horizontal MCP variant
● Vertical MCP variant with a reserved slot for the handwheel
● Vertical MCP variant with an override switch for the spindle

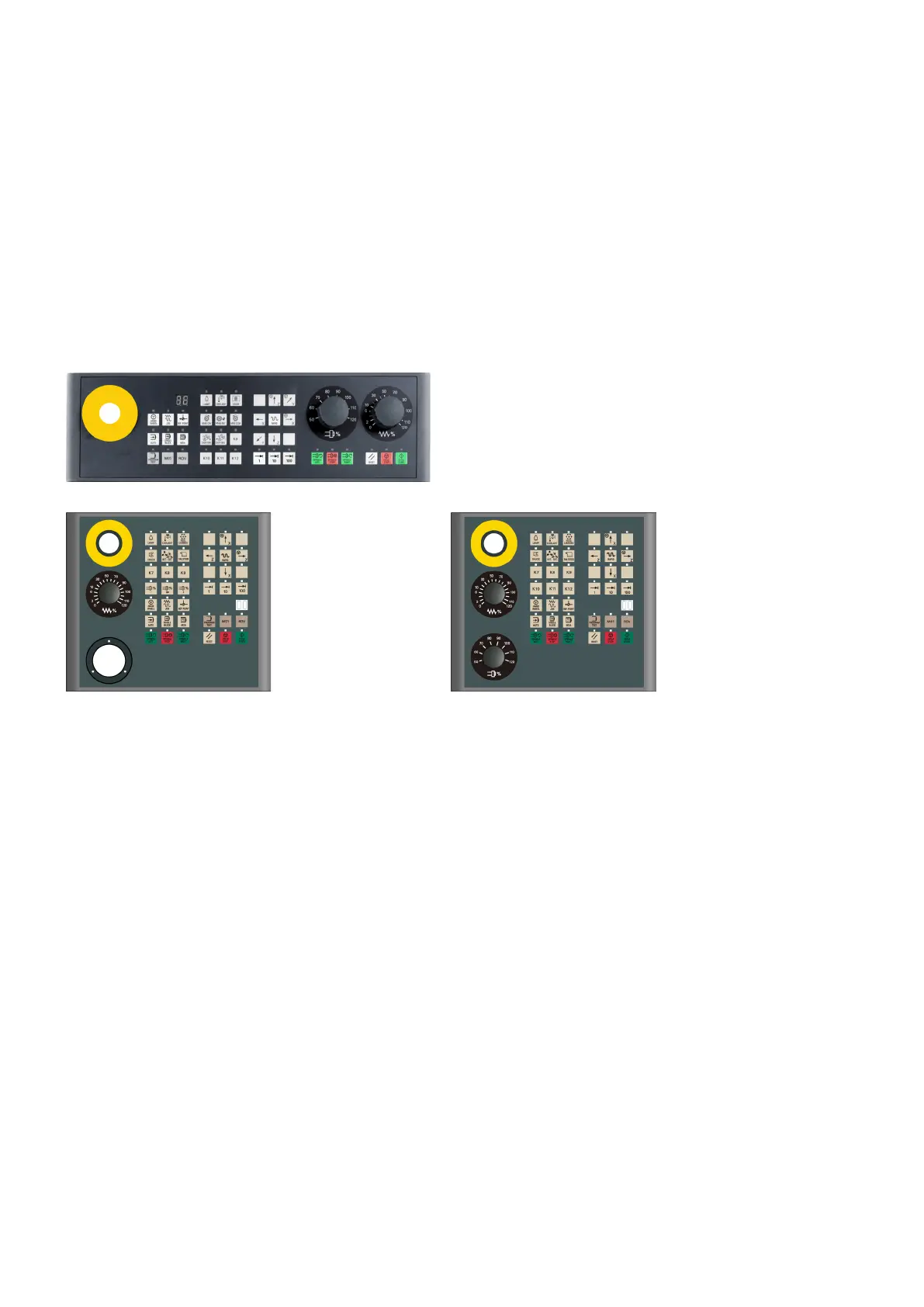

Horizontal MCP
Vertical MCP with reserved handwheel slot Vertical MCP with spindle override switch
