Siemens SINUMERIK 808D ADVANCED Programming And Operating Manual

Programming and Operating Manual (Milling)
8 6FC5398-4DP10-0BA1, 01/2014
1.1.2
Control elements on the PPU
Elements on the PPU (Panel Processing Unit) front

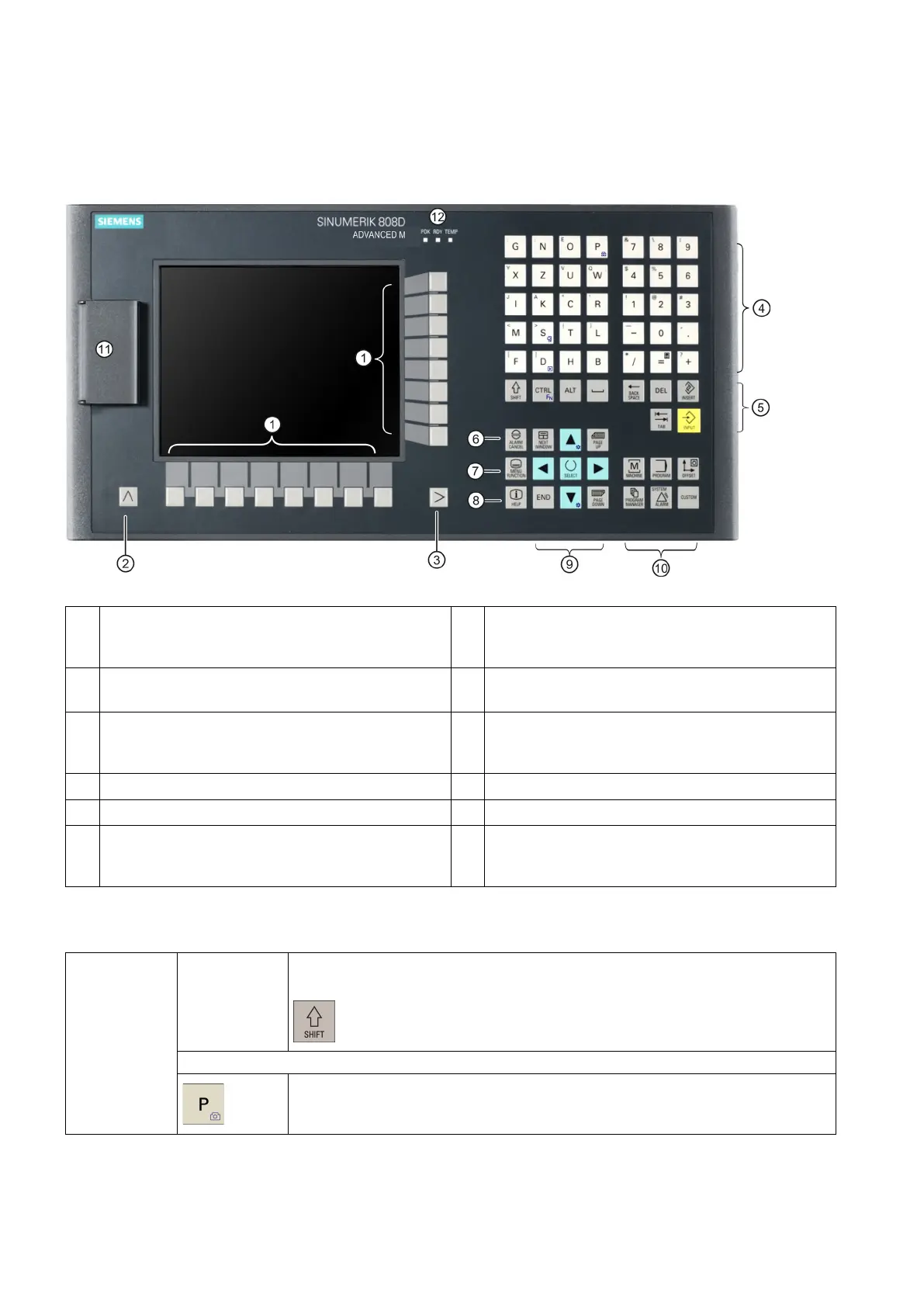

The following illustration uses PPU161.2 as an example to show control elements available on the PPU:
①
Vertical and horizontal softkeys
Calls specific menu functions
⑦
On-board wizard key
Provides step-by-step guides on basic commissioning
and operation procedures
②
Return key
Returns to the next higher-level menu
⑧
Help key
Calls help information
③
Menu extension key
Opens the next lower-level menu or navigate between
the menus of the same level
⑨
Cursor keys
*
④
Alphabetic and numeric keys
*
⑩
Operating area keys
*
⑤
Control keys
*
⑪
USB interface
*
⑥
Alarm cancellation key
Cancels alarms and messages that are marked with
this symbol
⑫
Status LEDs
*
* For more information, refer to the table below.
Further information
Alphabetic and
numeric keys
To enter the upper character on an alphabetic/numeric key, keep the following key
pressed:
The icons on the following keys are available only with PPU161.2 and PPU160.2.
The icon on the key is a hint that you can press both <CTRL> and this key as
shortcuts for capturing screens.
