Programming and Operating Manual (Milling)
232 6FC5398-4DP10-0BA1, 01/2014

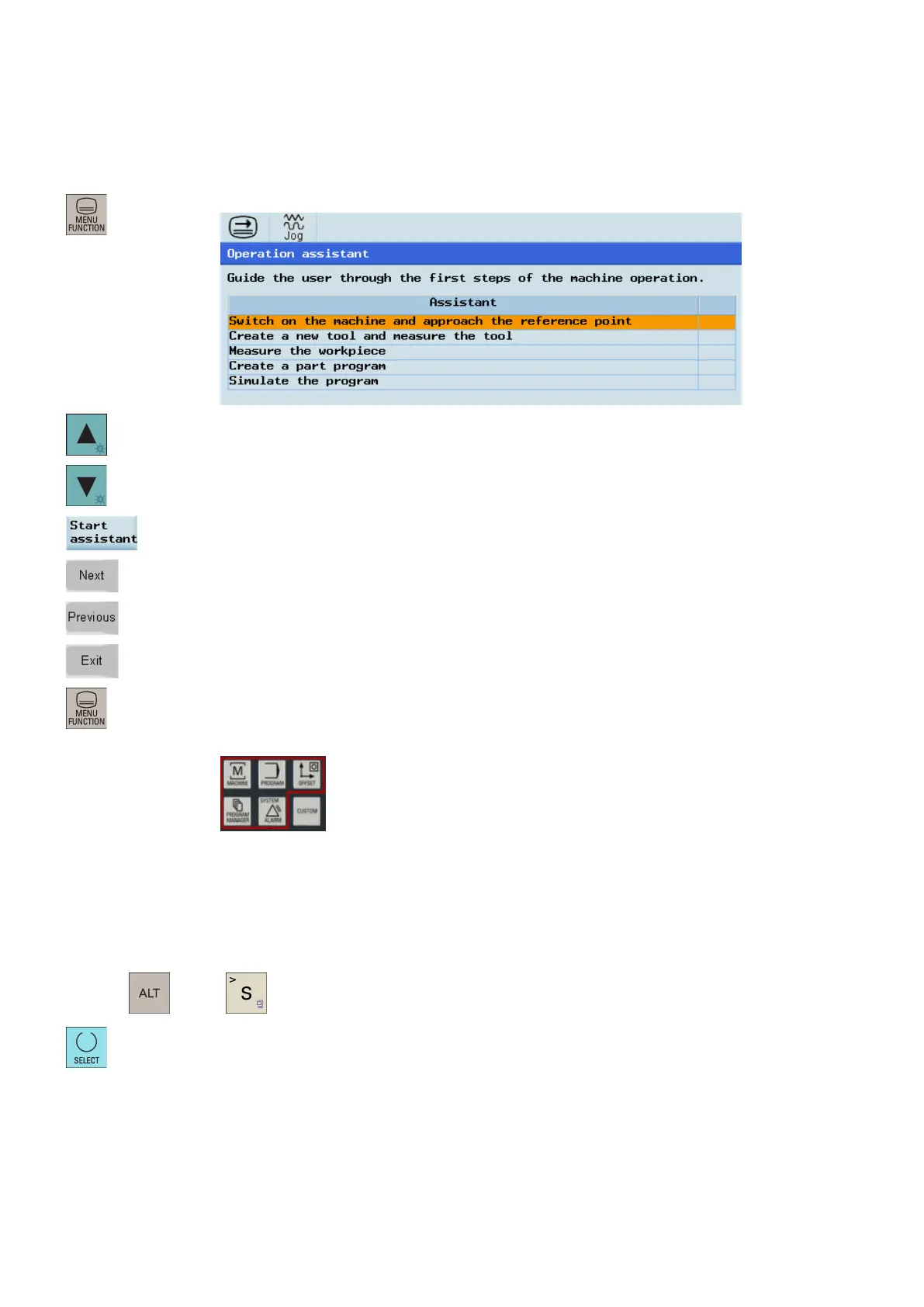

The operation wizard provides step-by-step guides on basic commissioning and operation procedures.
Press this key on the PPU to call the operation wizard.
Select a step of the machining operation with cursor keys.
Press this softkey to start the onboard assistant.
Press this softkey to enter the next page.
Press this softkey to enter the previous page.
Press either key to return to the main screen of the operation wizard.
Press one of the following five operating area keys to exit the main screen of the operation wizard.
Editing Chinese characters
The program editor and PLC alarm text editor both allow you to edit the simplified Chinese characters on the Chinese variant
of the HMI.
Editing simplified Chinese characters
Press the key and key to switch the editor on or off.
Press this key to toggle between different input methods.
Press the numeric keys (1 to 9) on the PPU to select the desired characters.
To Next Page
