Siemens SINUMERIK 808D ADVANCED - Deep-Hole Drilling - CYCLE83

Programming and Operating Manual (Milling)
130 6FC5398-4DP10-0BA1, 01/2014
N10 G0 G17 G90 F200 S300 M3
; Specification of technology values
N20 D1 T10 Z110
; Approach retraction plane
N30 X24 Y15
; Approach drilling position
N40 CYCLE82 (110, 102, 4, 75, , 2) ; Cycle call with absolute final drilling
depth and safety clearance
N50 M02
; End of program

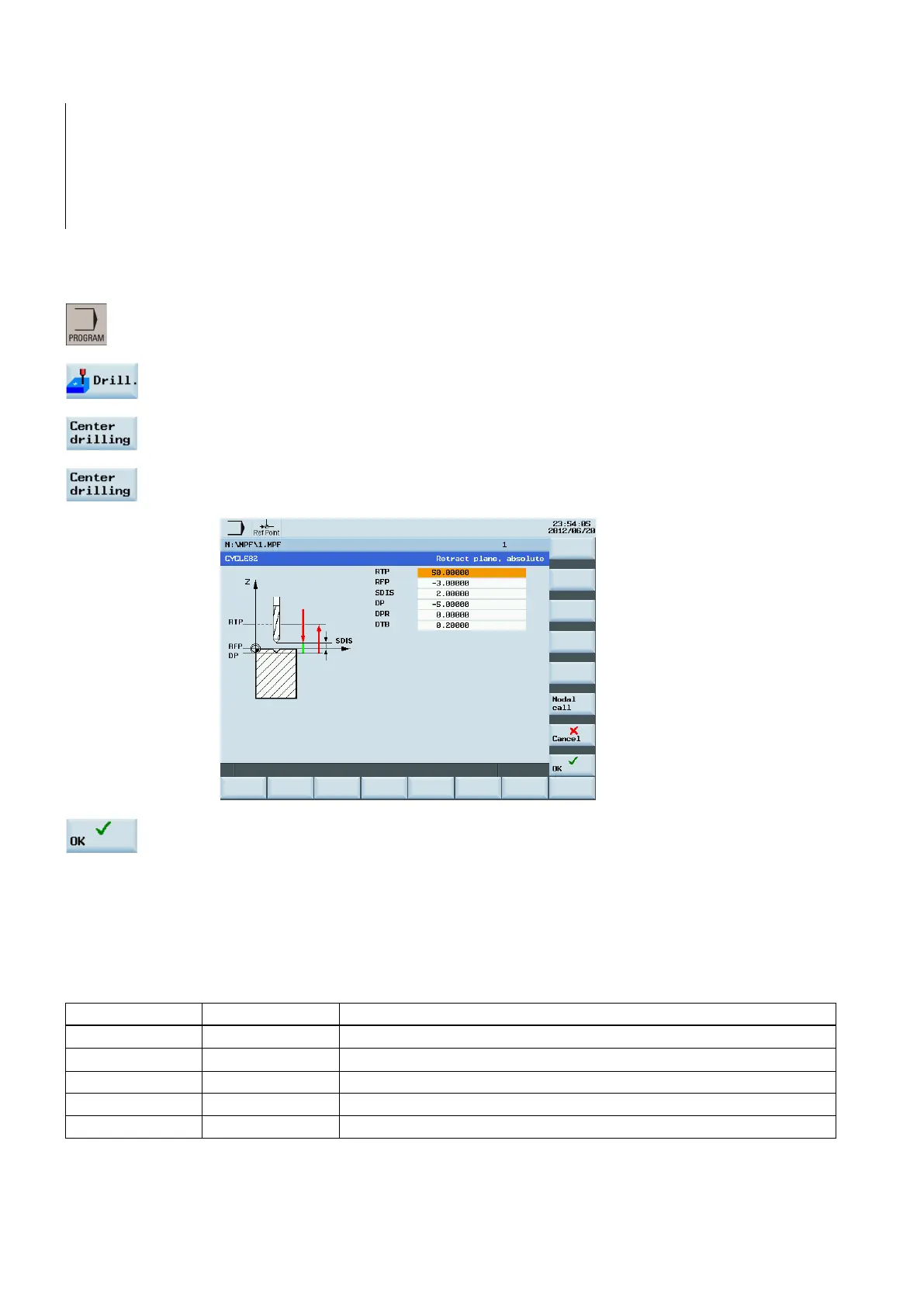

Programming example2: Drilling_counterboring
Proceed through the following steps:
1. Select the desired operating area.
2. Open the vertical softkey bar for available drilling cycles.
3. Press this softkey from the vertical softkey bar.
4. Press this softkey to open the window for CYCLE82. Parameterize the cycle as desired.
5. Confirm your settings with this softkey. The cycle is then automatically transferred to the program
editor as a separate block.
9.4.5
Deep-hole drilling - CYCLE83
Programming
CYCLE83 (RTP, RFP, SDIS, DP, DPR, FDEP, FDPR, DAM, DTB, DTS, FRF, VARI, AXN, MDEP, VRT, DTD, DIS1)
Parameters
Parameter
Data type
Description
RTP REAL Retraction plane (absolute)
RFP REAL Reference plane (absolute)
SDIS REAL Safety clearance (enter without sign)
DP REAL Final drilling depth (absolute)
DPR REAL Final drilling depth relative to the reference plane (enter without sign)
