Programming and Operating Manual (Milling)
160 6FC5398-4DP10-0BA1, 01/2014

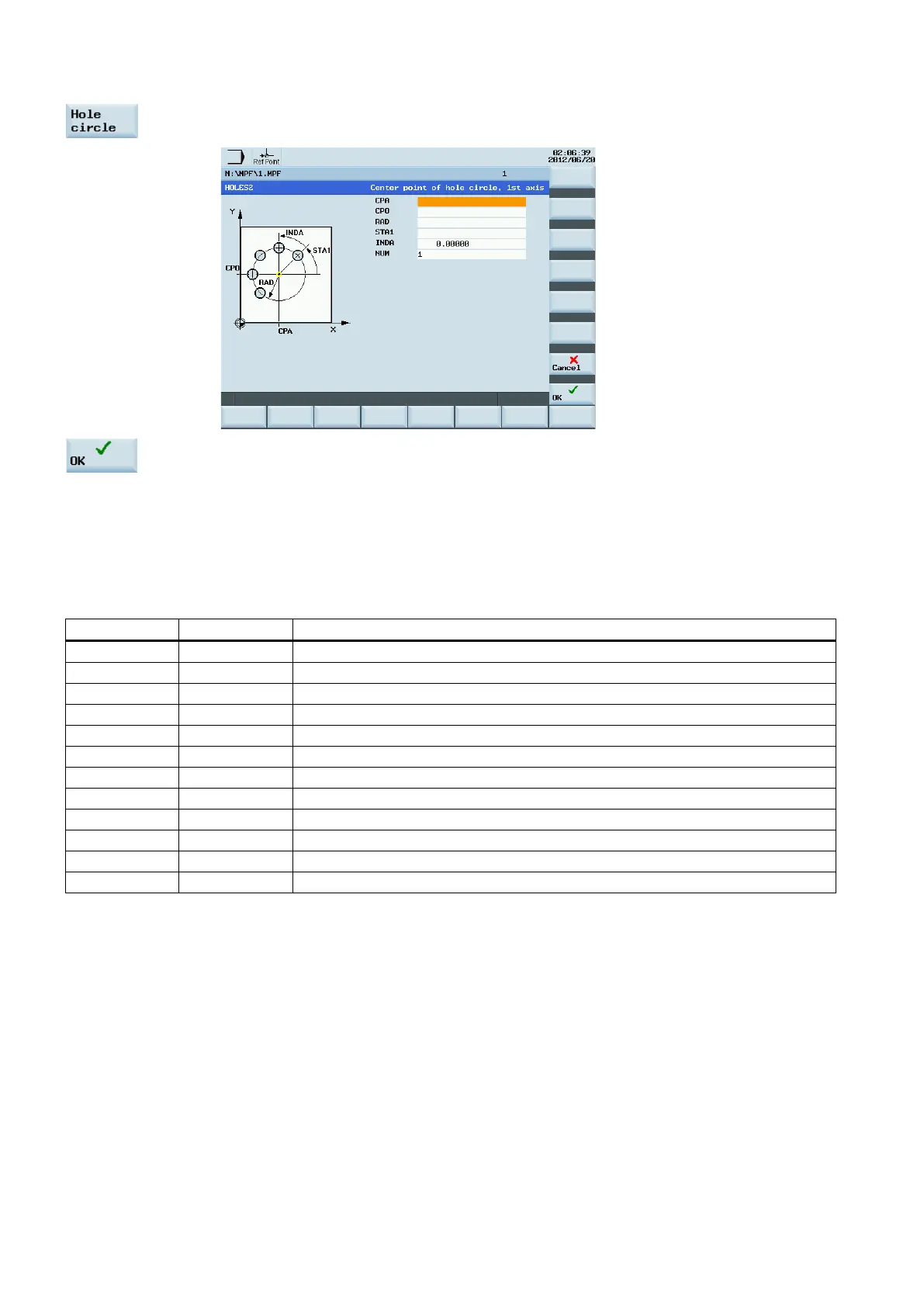

Press this softkey to open the window for this cycle. Parameterize the cycle as desired.
Confirm your settings with this softkey. The cycle is then automatically transferred to the program
editor as a separate block.
Arbitrary positions - CYCLE802
Programming
CYCLE802 (111111111, 111111111, X0, Y0, X1, Y1, X2, Y2, X3, Y3, X4, Y4)
PSYS INT Internal parameter, only the default value 111111111 is possible
PSYS INT Internal parameter, only the default value 111111111 is possible
X0 REAL First position in the X axis
Y0 REAL First position in the Y axis
X1 REAL Second position in the X axis
Y1 REAL Second position in the Y axis
X2 REAL Third position in the X axis
Y2 REAL Third position in the Y axis
X3 REAL Fourth position in the X axis
Y3 REAL Fourth position in the Y axis
X4 REAL Fifth position in the X axis
Y4 REAL Fifth position in the Y axis
