7. Enter the tool radius data and confirm your settings.

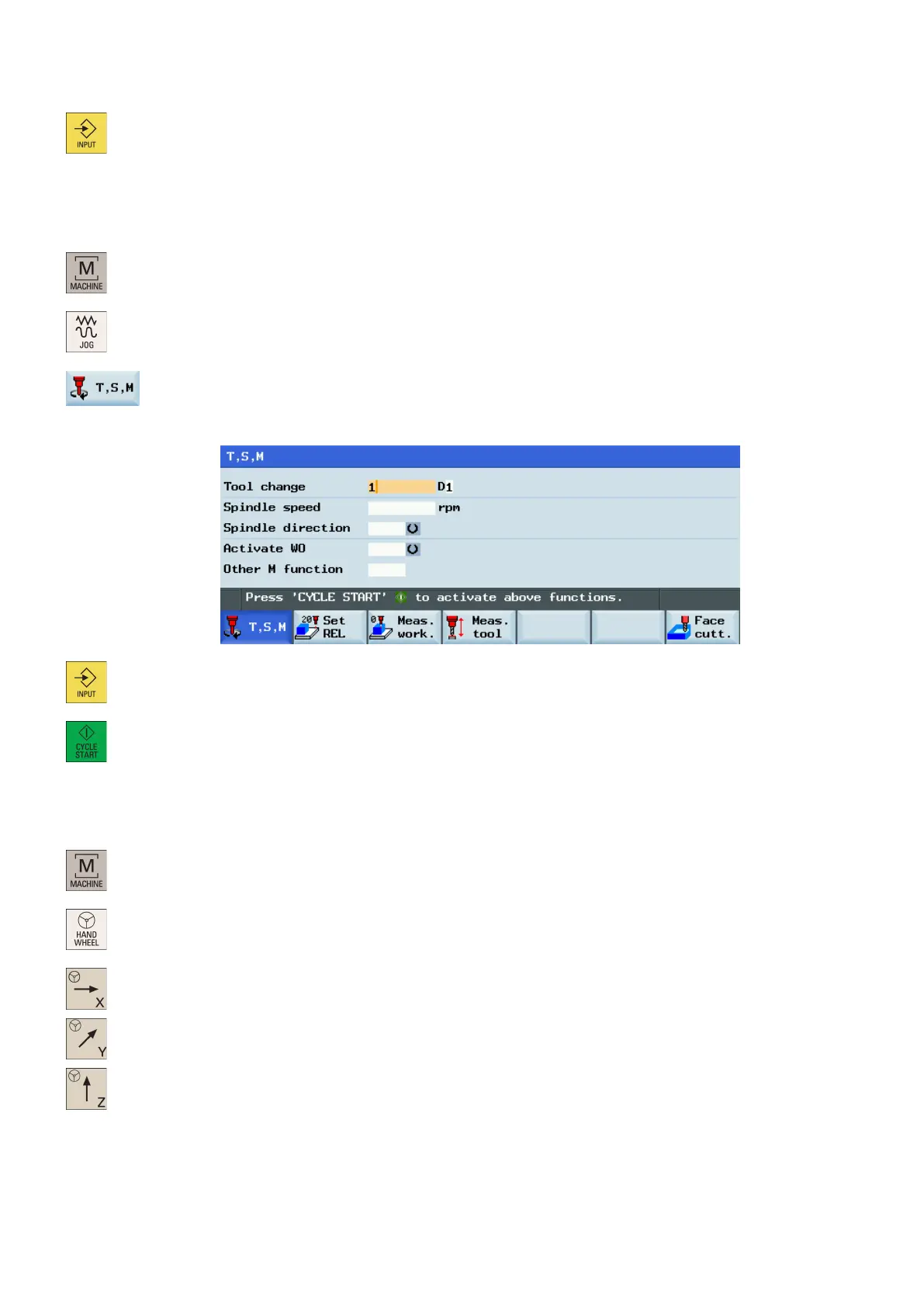

Activating the tool
Operating sequence
1. Select the desired operating area.
2. Switch to "JOG" mode.
3. Open the "T, S, M" window.
4. Enter the desired tool number (for example, 1) in the "T, S, M" window.
5. Use this key or move the cursor to confirm your entries.
6. Press this key on the MCP to activate the tool.
Assigning the handwheel
Method 1: Assigning through the MCP
1. Select the desired operating area.
2. Press this key on the MCP to control the axis movement with external handwheels.
3. Press the desired axis traversing key with the handwheel icon. The handwheel is assigned.
