Programming and Operating Manual (Milling)
6FC5398-4DP10-0BA1, 01/2014
21

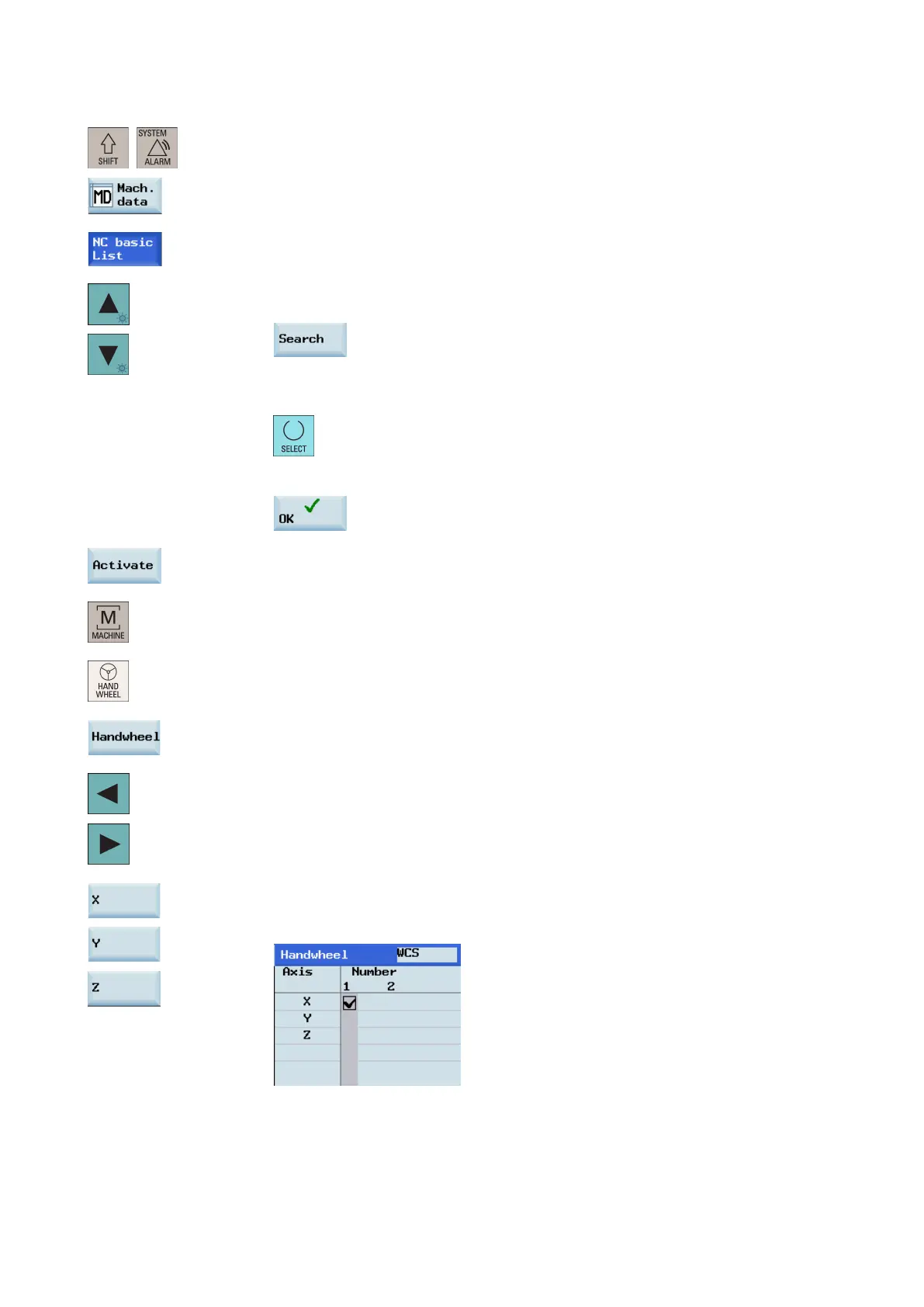

Method 2: Assigning through the PPU
+
1. Select the desired operating area.
2. Open the machine data window.
3. Press this softkey to open the basic machine data list.
4. Use the cursor keys or the following softkey to search for the general machine data "14512
USER_DATA_HEX[16]".
5. Select "Bit7" by using the following key and cursor keys:
Press the following softkey to confirm your input.
6.
Press this vertical softkey to activate the value change. Note that the control system restarts to
accept the new value.
7. After the control system has booted, select the desired operating area.
8. Press this key on the MCP.
9. Press this vertical softkey to open the handwheel assignment window.
10. Select the desired handwheel number with the cursor left/right key.
11. Press the relevant axis softkey for handwheel assignment or deselection.
The symbol "☑" that appears in the window indicates a handwheel has been assigned to the
specific axis.
