Workpiece clamping - settable work offset: G54 to G59, G500, G53, G153
Functionality
The settable work offset specifies the position of the
on the machine (offset of the workpiece zero with
respect to the machine zero). This offset is determined upon clamping of the workpiece into the machine and must be
entered in the corresponding data field by the operator. The value is activated by the program by selection from six possible
groupings: G54 to G59.
Workpiece clamping at an angle is possible by entering the angles of rotation around the machine axes. These rotation
portions are activated with the offset G54 to G59.
G54 to G59 ; 1. to 6th settable work offset
G500 ; Settable work offset OFF - modal
G53 ; settable work offset OFF, non-modal, also suppresses programmable offset
G153 ;settable work offset OFF, non-modal; additionally suppresses base frame

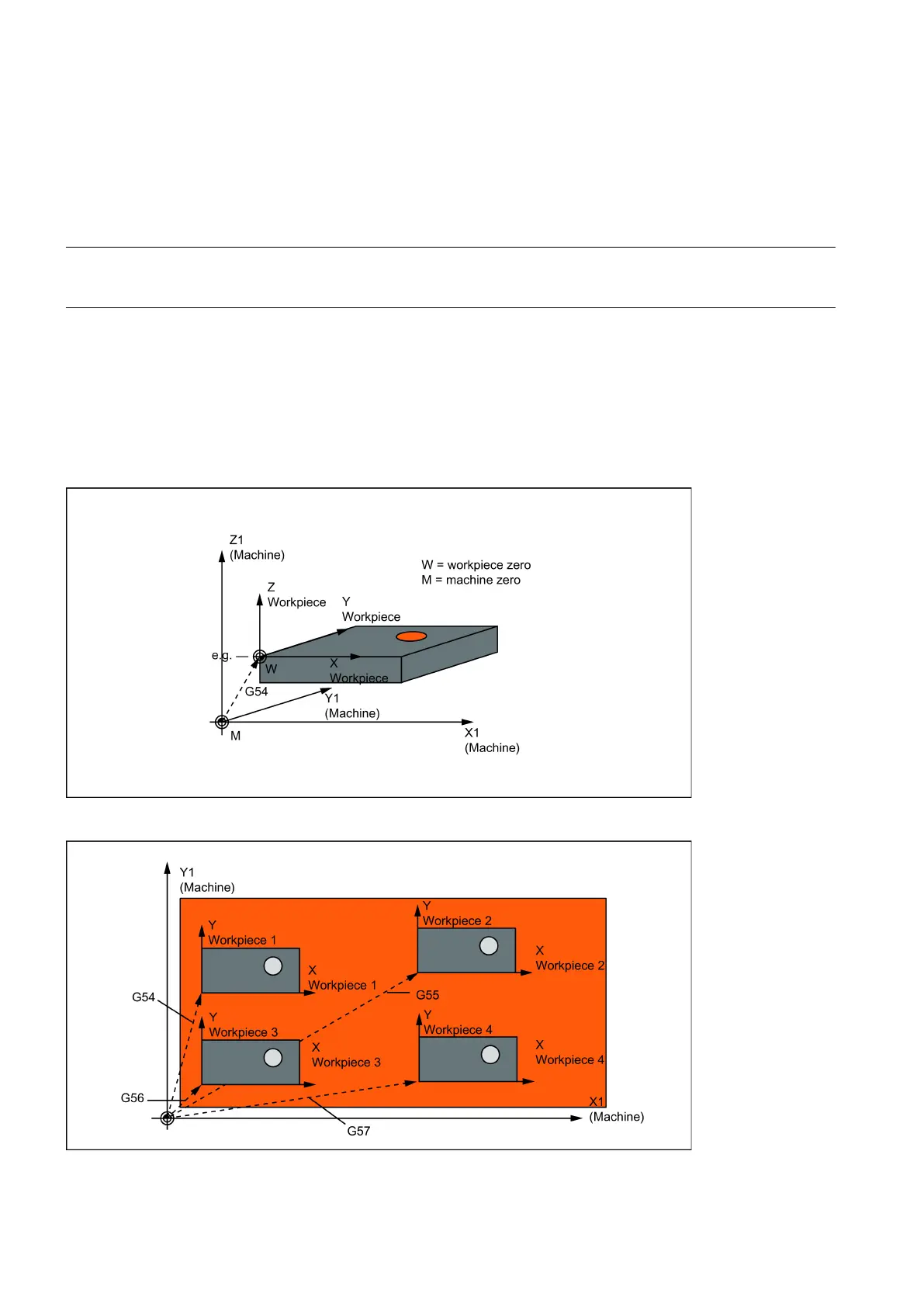

See the following illustration for settable work offset:
See the following illustration for various workpiece clamping positions when drilling/milling:
