MIRROR X0 Y0 Z0 ; Programmable mirroring, clears old instructions for offset, rotation, scaling factor,
mirroring
AMIRROR X0 Y0 Z0 ; Programmable mirroring, additive to existing instructions
MIRROR ; Without values: clears old instructions for offset, rotation, scaling factor, mirroring
The instructions that contain MIRROR or AMIRROR each require a separate block. The axis value has no influence. A
value, however, must be specified.
Any active tool radius compensation (G41/G42) is reversed automatically when mirroring.
The direction of rotation of the circle G2/G3 is also reversed automatically when mirroring.
See the following illustration for example for mirroring with the tool position shown:

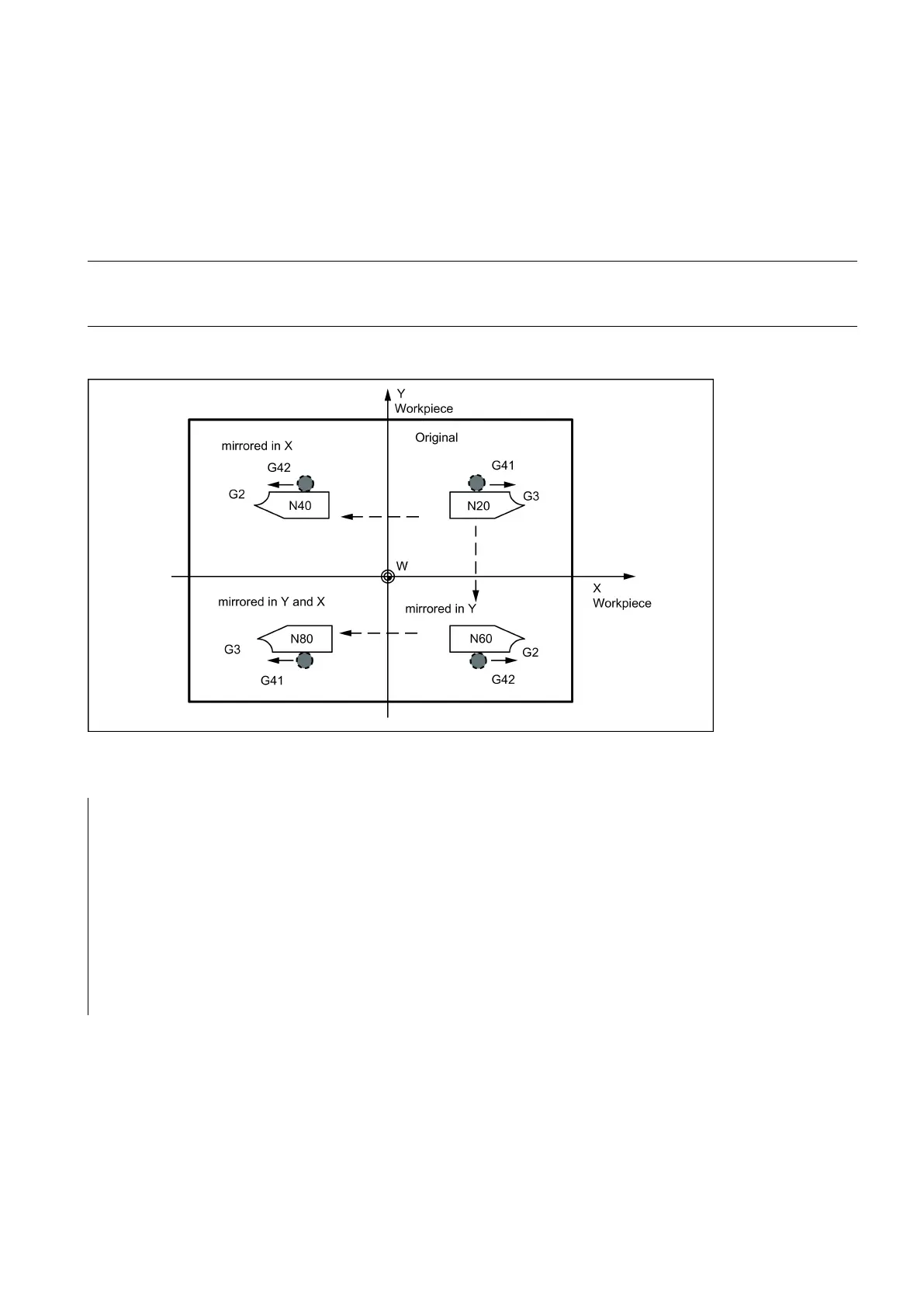

Mirroring in different coordinate axes with influence on an active tool radius compensation and G2/G3:
; X/Y plane, Z standing vertically on it
; Programmed contour with G41
; Mirroring once more, but now in X
Subroutine call - see Section "Subroutine technique (Page 110)".
