Select the program file that you would like to execute.
Press this vertical softkey to start executing the selected program.
To clear the current file list, press the following softkey:
Automatic machining
Overview
The machine must have been set up for "AUTO" mode according to the specifications of the machine manufacturer. You can
perform such operations as program start, stop, control, block search, and real-time simulation, etc.

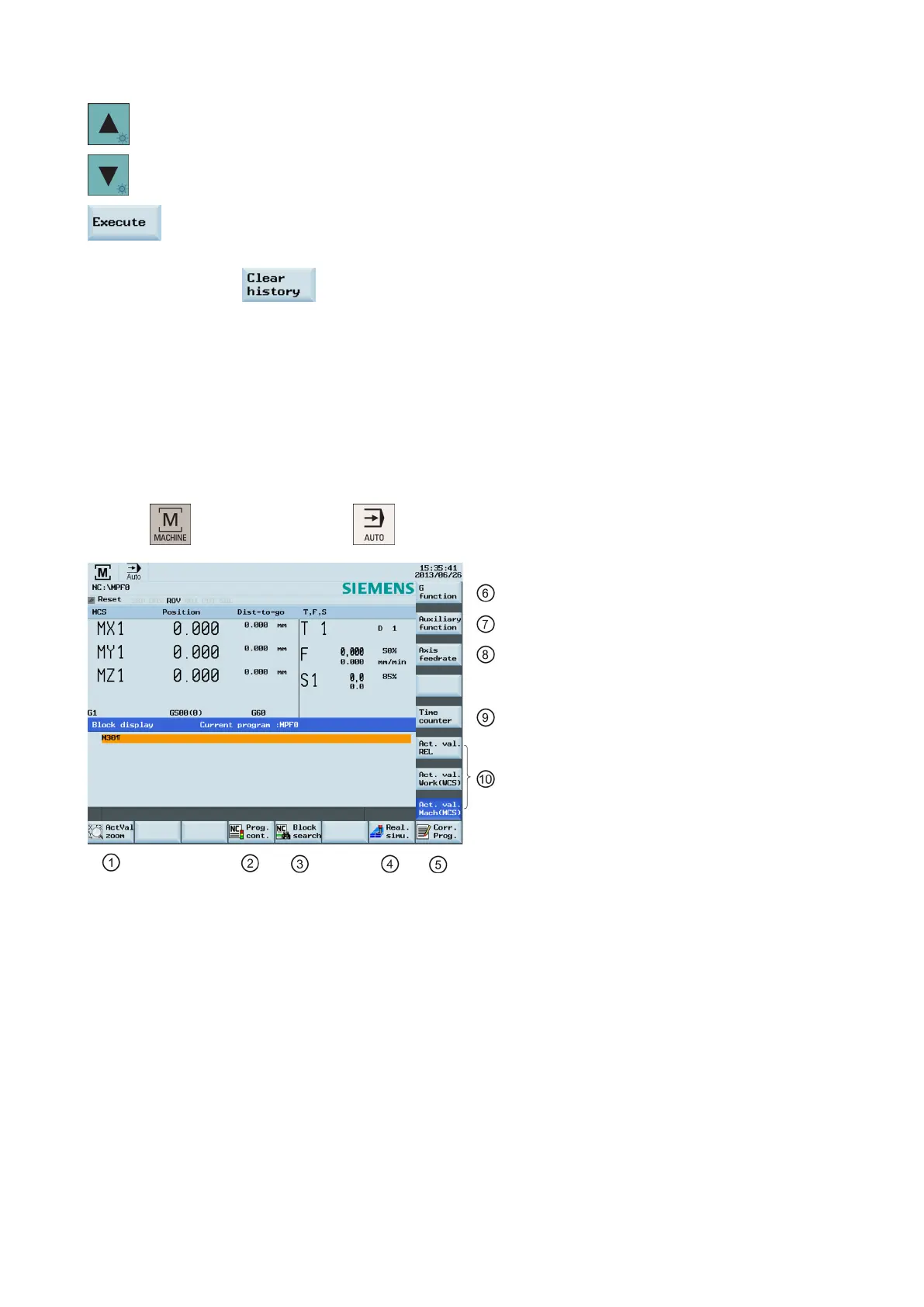

Pressing key on the PPU and then key on the MCP allows you to open the following window:
①
Zooms in the actual value window
⑥
Displays important G functions
②
Performs the program test, dry run, conditional stop,
block skipping, and auxiliary function lock
⑦
Displays currently active auxiliary and M functions
③
Finds the desired block location
⑧
Displays the axis feedrate in the selected coordinate
system
④
Activates the simulation function
⑨
Displays the information of part machining time (part
timer) and part counter
⑤
Corrects a wrong program block. Any changes will be
stored immediately.
⑩
Switches over the coordinate system in the actual value
window
To Next Page
