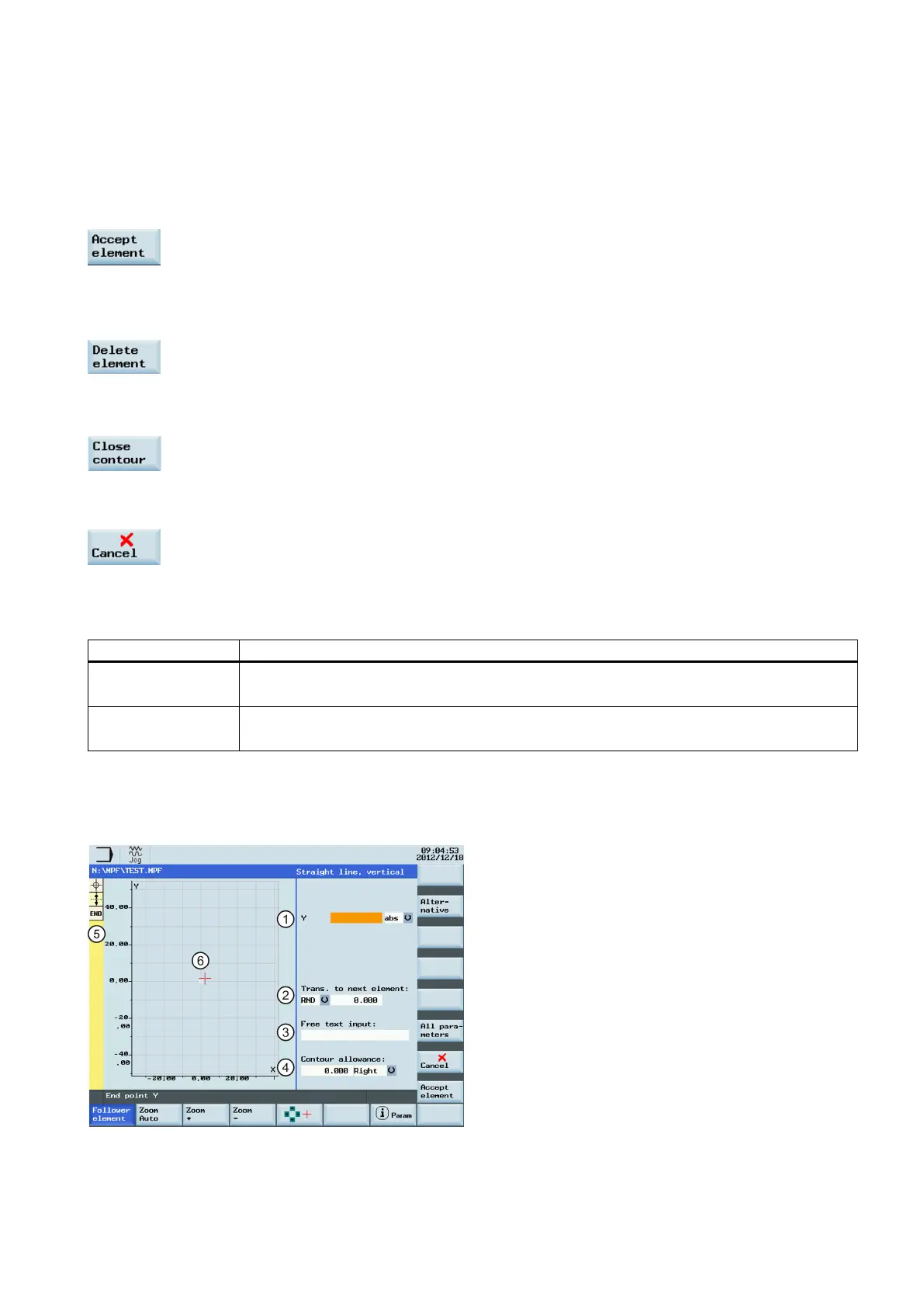

Use the cursor keys in the contour chain to select the contour element in front of the position for the new element.
Then select the contour element to be inserted from the softkey bar.
After you have configured the parameters for the new contour element, confirm the insert operation by pressing the following
softkey:
Subsequent contour elements are updated automatically according to the new contour status.
Use the cursor keys to select the element you wish to delete. The selected contour symbol and
associated contour element in the programming graphic are highlighted in red. Then press this
softkey and confirm the query.
By pressing this softkey, you can close the contour from the actual position with a straight line to
the starting point.
By selecting this softkey you can return to the main screen
transferring the last edited
values to the system.
The meaning of the symbol colors in the contour chain on the left of the main screen is as follows:
Selected Symbol color black on a red background -> Element is defined geometrically
Symbol color black on a light yellow background -> Element is not defined geometrically
Not selected Symbol color black on a gray background -> Element is defined geometrically
Symbol color white on a gray background -> Element is not defined geometrically
Parameters for contour elements
Parameters for programming straight lines
