Siemens SINUMERIK 808D ADVANCED Programming And Operating Manual

Programming and Operating Manual (Milling)
212 6FC5398-4DP10-0BA1, 01/2014
10

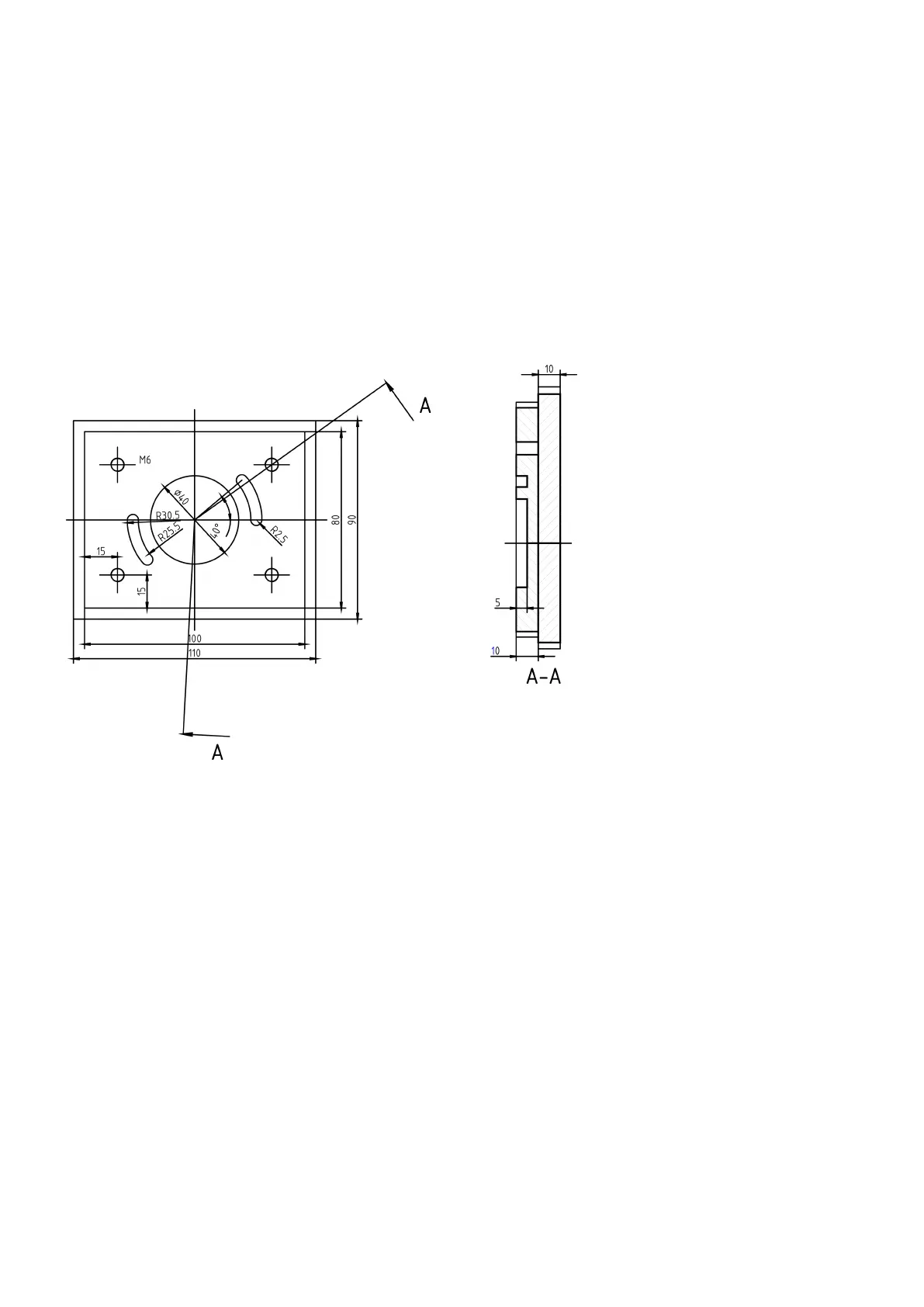

Typical milling program
Blank data
Blank material: Cube aluminum
Blank length: 100 mm
Blank width: 80 mm
Blank height: 60 mm (machining length: 46 mm; clamping length: 10 mm)
Required tools
T1, T2, T3, T4, T5, T6, T11, T14, T20
Programming example 1
T1
M06
G54G90
S4000M3
CYCLE71( 20.00000, 2.00000, 2.00000, 0.00000, -50.00000, -40.00000, 100.00000, 80.00000,
,5.00000, 30.00000, ,0.20000, 1500.00000, 31, )
CYCLE71( 20.00000, 2.00000, 2.00000, 0.00000, -50.00000, -40.00000, 100.00000, 80.00000,
,2.00000, 30.00000, ,0.20000, 1500.00000, 12, )
T2
M06
S4000M3
CYCLE76( 20.00000, 0.00000, 2.00000, -10.00000, ,90.00000, 70.00000, 1.00000, 0.00000,
0.00000, ,3.00000, 0.50000, ,1200.00000, 1000.00000, 0, 1, 100.00000, 80.00000)
POCKET4( 20.00000, 0.00000, 2.00000, -5.00000, 20.00000, 0.00000, 0.00000, 2.00000,
0.50000, 0.20000, 1000.00000, 200.00000, 0, 21, 5.00000, , ,2.00000, 2.00000)
T3
M06
M8
S5000M3
CYCLE76( 20.00000, 0.00000, 2.00000, -10.00000, ,90.00000, 70.00000, 1.00000, 0.00000,
