Programming and Operating Manual (Milling)
6FC5398-4DP10-0BA1, 01/2014
227
⑦
Displays the axis feedrate in the selected coordinate system.
⑧
Displays the axis position data in the relative coordinate system.
⑨
Displays the axis position data in the workpiece coordinate system.
â‘©
Displays the axis position data in the machine coordinate system.

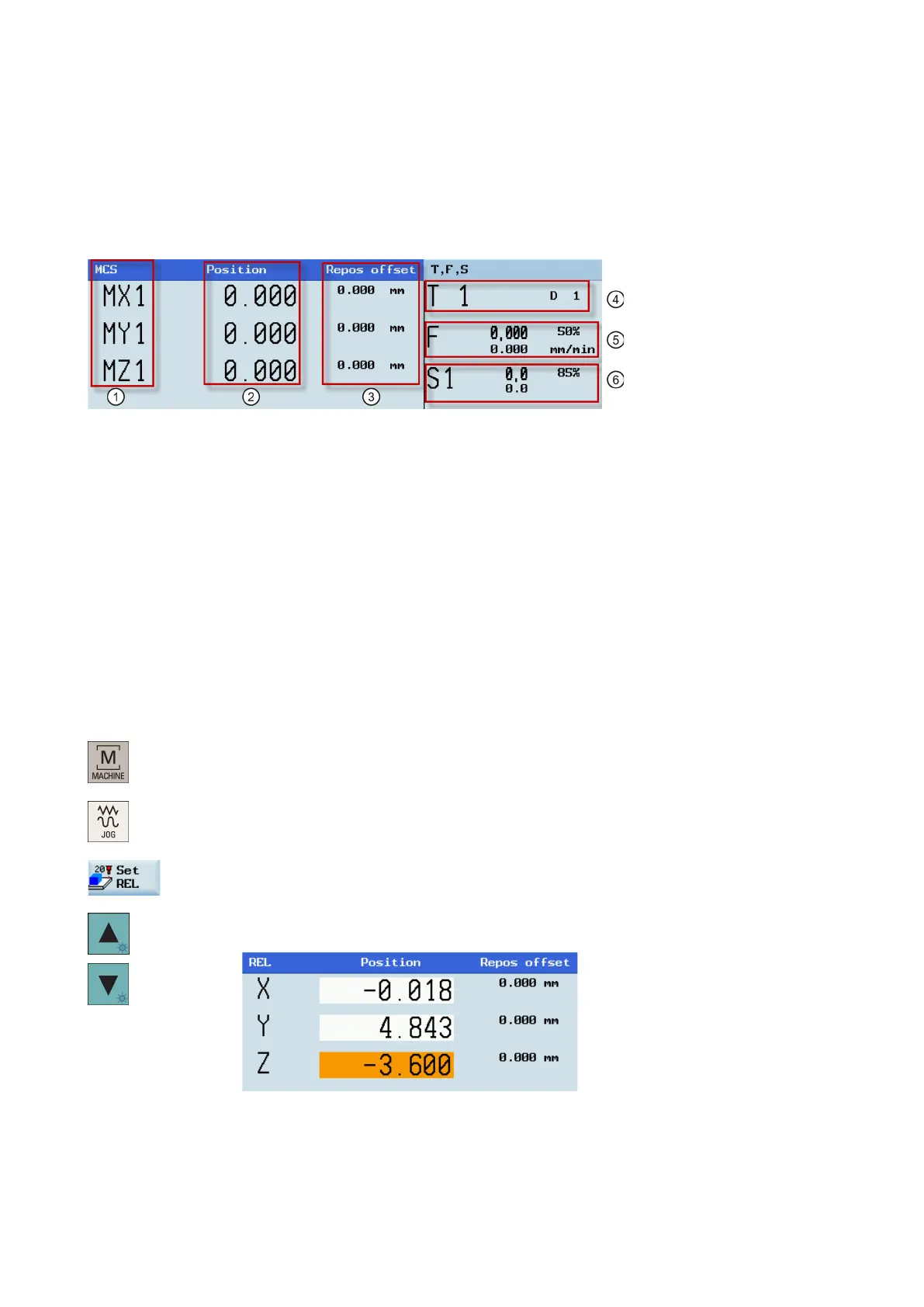

Parameters in the "JOG" window
â‘
Displays the axes that exist in the machine coordinate system (MCS), workpiece coordinate
system (WCS), or relative
coordinate system(REL).If you traverse an axis in the positive (+) or negative (-) direction, a plus or minus sign
appears in the relevant field. If the axis is already in the required position, no sign is displayed.
â‘¡
Displays the current position of the axes in the selected coordinate system.
â‘¢
Displays the distance traversed by each axis in "JOG" mode from the interruption point in the condition of program
interruption. For detailed information about program interruption, refer to Section "
Starting and stopping / interrupting a
part program (Page 42)".
â‘£
Displays the currently active tool number T with the current cutting edge number D.
⑤
Displays the actual axis feedrate and the setpoint (mm/min or mm/rev).
â‘¥
Displays the actual value and the setpoint of the spindle speed (r.p.m.).
Setting the relative coordinate system (REL)
Operating sequence
1. Select the desired operating area.
2. Switch to "JOG" mode.
3. Press this softkey to switch the display to the relative coordinate system.
4. Us
e the cursor keys to select the input field, and then enter the new position value of the reference
point in the relative coordinate system.
