Programming and Operating Manual (Milling)
6FC5398-4DP10-0BA1, 01/2014
229
7. Use this softkey to confirm your settings. The system now automatically creates the part program.
8. Press this key on the MCP to run the part program.

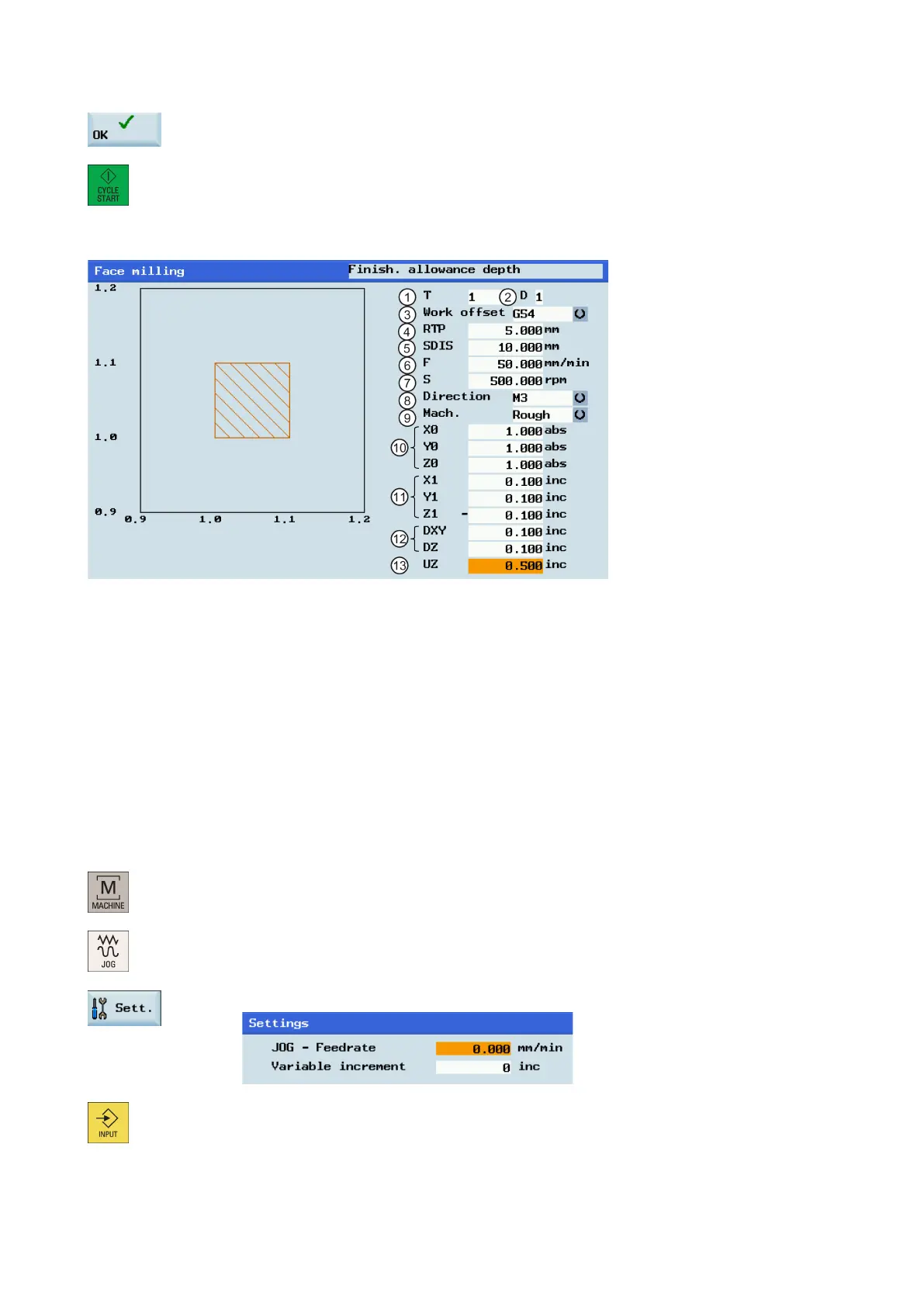

Parameters for face milling
①
Tool number
⑧
Direction of spindle rotation
②
Cutting edge number
⑨
Machining type selection: roughing or finishing
③
Work offset to be activated
⑩
X\Y\Z position of the blank
Retraction plane
Cutting dimension in the X\Y\Z direction, specified in
increments
Safety distance
Cutting length in the X\Y\Z direction, specified in
increments relative to the workpiece edge
Path feedrate
Stock allowance in the Z direction
⑦
Spindle speed
Setting the JOG data
Operating sequence
1. Select the desired operating area.
2. Switch to "JOG" mode.
3. Press this horizontal softkey to open the following window:
4. Enter values in the input fields and confirm your entries.
