Programming and Operating Manual (Milling)
238 6FC5398-4DP10-0BA1, 01/2014
Use this softkey to select the appropriate direction of rotation.
Use this softkey to define the given end point.
Enter the coordinates of the pole, the slope angle of the straight line, the ordinate of the end point and the circle radius as
the length.
Result: X= -19.499
Y = 30
Free contour programming
Functionality
Free contour programming enables you to create simple and complex contours.
A contour editor (FKE) calculates any missing parameters for you as soon as they can be obtained from other parameters.
You can link together contour elements and transfer to the edited part program.

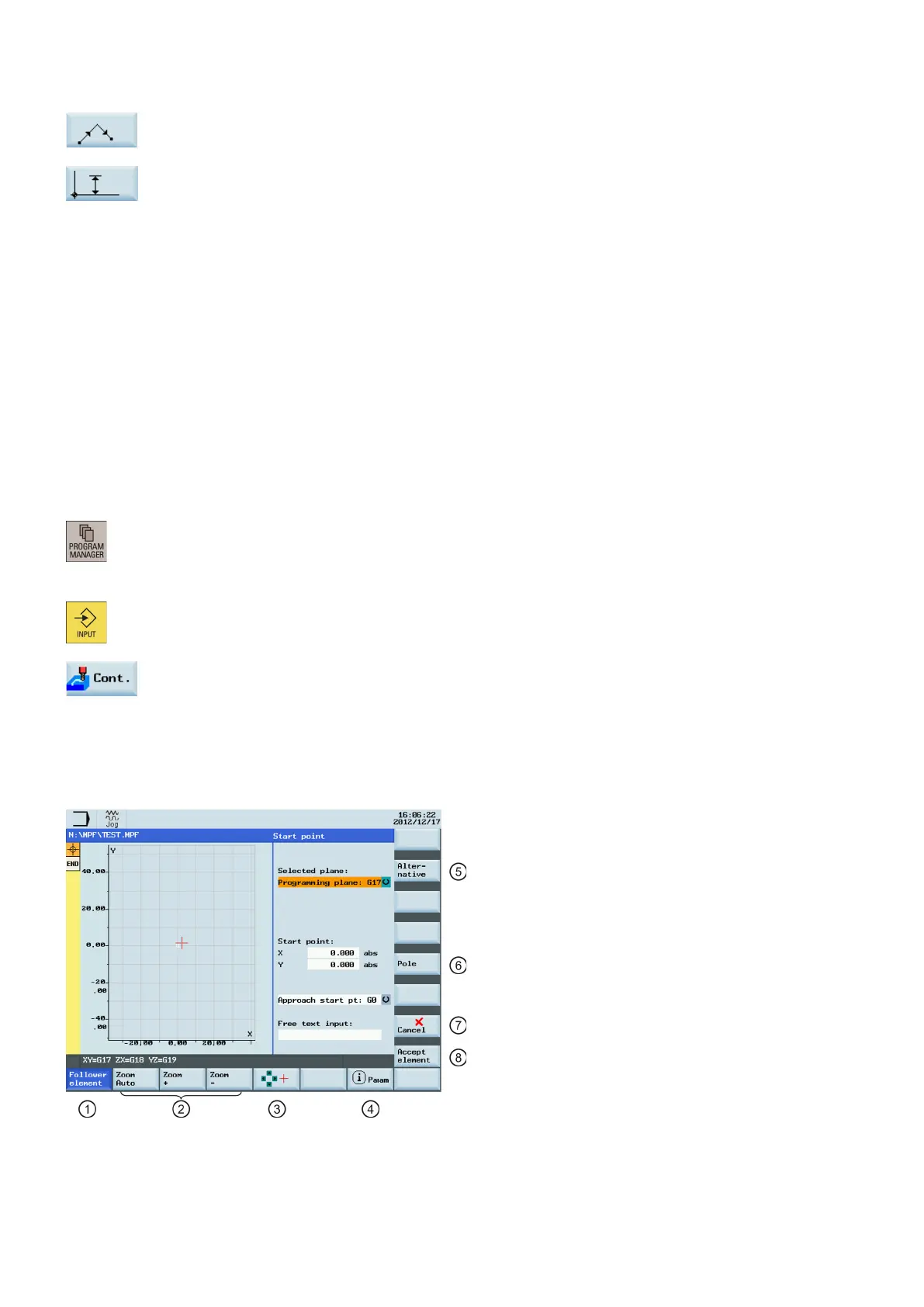

Proceed through the following steps to open the contour editor window:
1. Select the desired operating area.
2. Enter the desired program folder.
3. Select a program file, and press this key to open it in the program editor.
4. Press this softkey to open the contour editor window.
Initially, you define a contour starting point (see Section "Defining a starting point").
The contour is then programmed step-by-step (see Section "Programming example turning").
