Programming and Operating Manual (Milling)
6FC5398-4DP10-0BA1, 01/2014
9

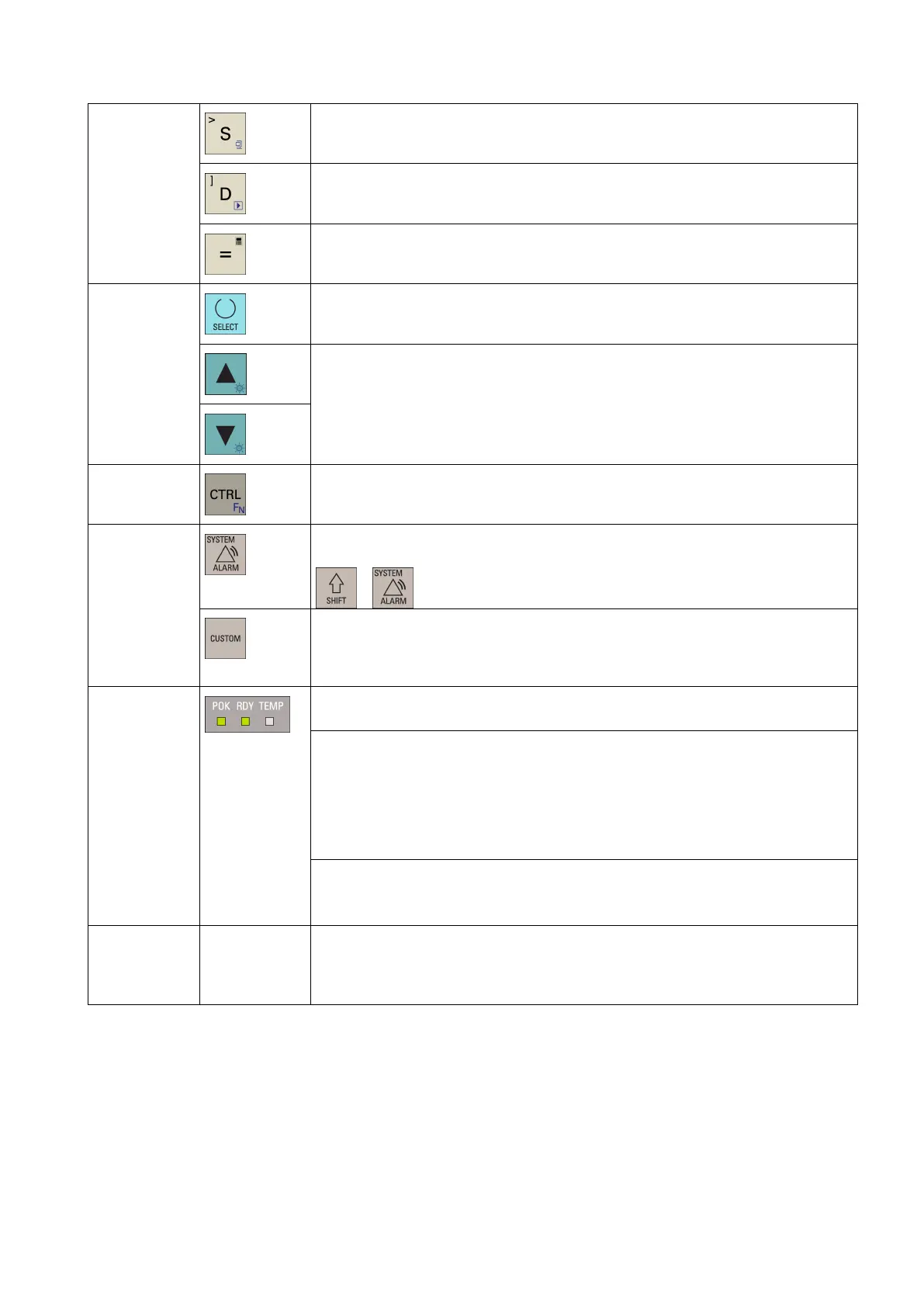

The icon on the key is a hint that you can press both <CTRL> and this key as
shortcuts for saving start-up archives.
The icon on the key is a hint that you can press both <CTRL> and this key as
shortcuts for displaying pre-defined slides on the screen.
The icon on the key is a hint that you can press this key to call the calculator function.
Cursor keys
● Toggles between entries in the input field
● Enters the "Set-up menu" dialog at NC start-up
Icons on both keys are available only with PPU161.2 and PPU160.2. The icon on the
key is a hint that you can press both <CTRL> and the key to adjust the screen
backlight brightness.
Control keys
The icon on the key is available only with PPU161.2 and PPU160.2. The icon is a hint
that this key can be used together with another key to function as a key combination.
Operating area
keys
To open the system data management operating area, press the following key
combination:
+
Enables user-defined extension applications, for example, generation of user dialogs
with the EasyXLanguage function.
For more information about this function, refer to SINUMERIK 808D ADVANCED
Function Manual.
Status LEDs
LED "POK"
Lights up green: The power supply for the CNC is switched on.
LED "RDY"
Lights up green: The CNC is ready and the PLC is in running mode.
Lights up orange:
● On: The PLC is in stop mode.
● Flashing: The PLC is in power-up mode.
Lights up red: The CNC is in stop mode.
LED "TEMP"
Unlit: The CNC temperature is within the specified range.
Lights up orange: The CNC temperature is out of range.
USB interface Connects to a USB device, for example:
● An external USB memory sticker, to transfer data between the USB sticker and the
CNC
An external USB keyboard which functions as an external NC keyboard
