Siemens SINUMERIK 808D ADVANCED Programming And Operating Manual

Programming and Operating Manual (Milling)
6FC5398-4DP10-0BA1, 01/2014
217
ROT
S4500 M3
_ANF1:
N160 POCKET3( 50.00000, 0.00000, 2.00000, -5.00000, 13.00000, 10.00000, 4.00000, -
13.00000, 16.00000, 0.00000, 2.50000, 0.10000, 0.10000, 300.00000, 200.00000, 2, 2,
2.50000, , , ,2.00000, 2.00000)
AROT Z90
_END1:
REPEAT _ANF1 _END1 P=3
ROT
G0 X0 Y0
POCKET4( 50.00000, 0.00000, 2.00000, -5.00000, 7.50000, 0.00000, 0.00000, 2.50000,
0.10000, 0.10000, 300.00000, 200.00000, 0, 21, 2.00000, , ,4.00000, 1.00000)
S4500 M3
POCKET4( 50.00000, 0.00000, 2.00000, -5.00000, 7.50000, 0.00000, 0.00000, 5.00000,
0.10000, 0.10000, 300.00000, 200.00000, 0, 12, 2.00000, , ,4.00000, 1.00000)
G0 Z100
T3 D1 ;DRILL D3
M6
S5000 M3
G0 X0 Y0
MCALL CYCLE81( 50.00000, 0.00000, 2.00000, -5.00000, 0.00000)
HOLES2( 0.00000, 0.00000, 10.00000, 45.00000, 60.00000, 6)
MCALL
M30

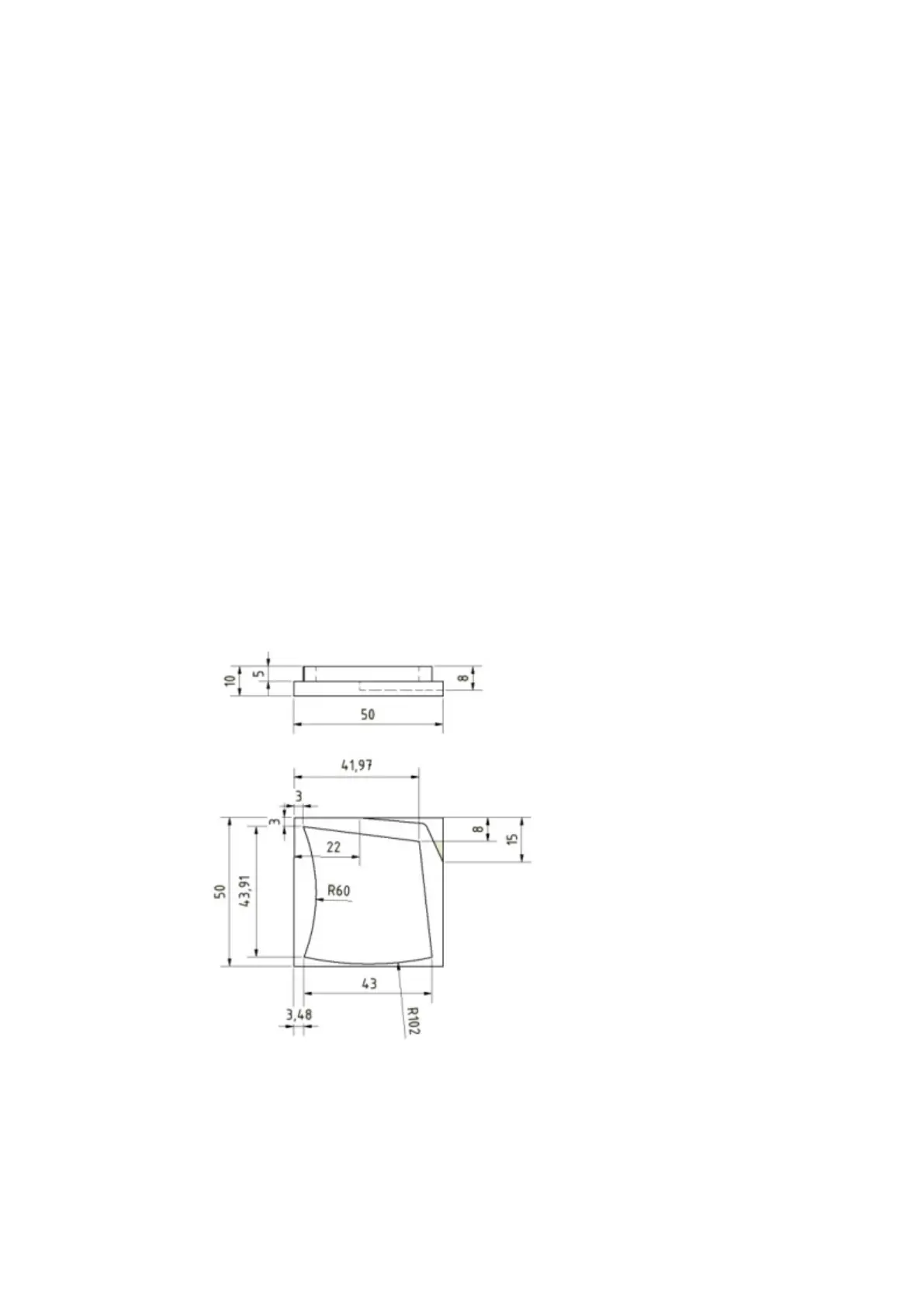

Programming example 4
G17 G90 G60 G54
T1 D1 ;FACEMILL D50
M6
S3500 M3
G0 X0 Y0
