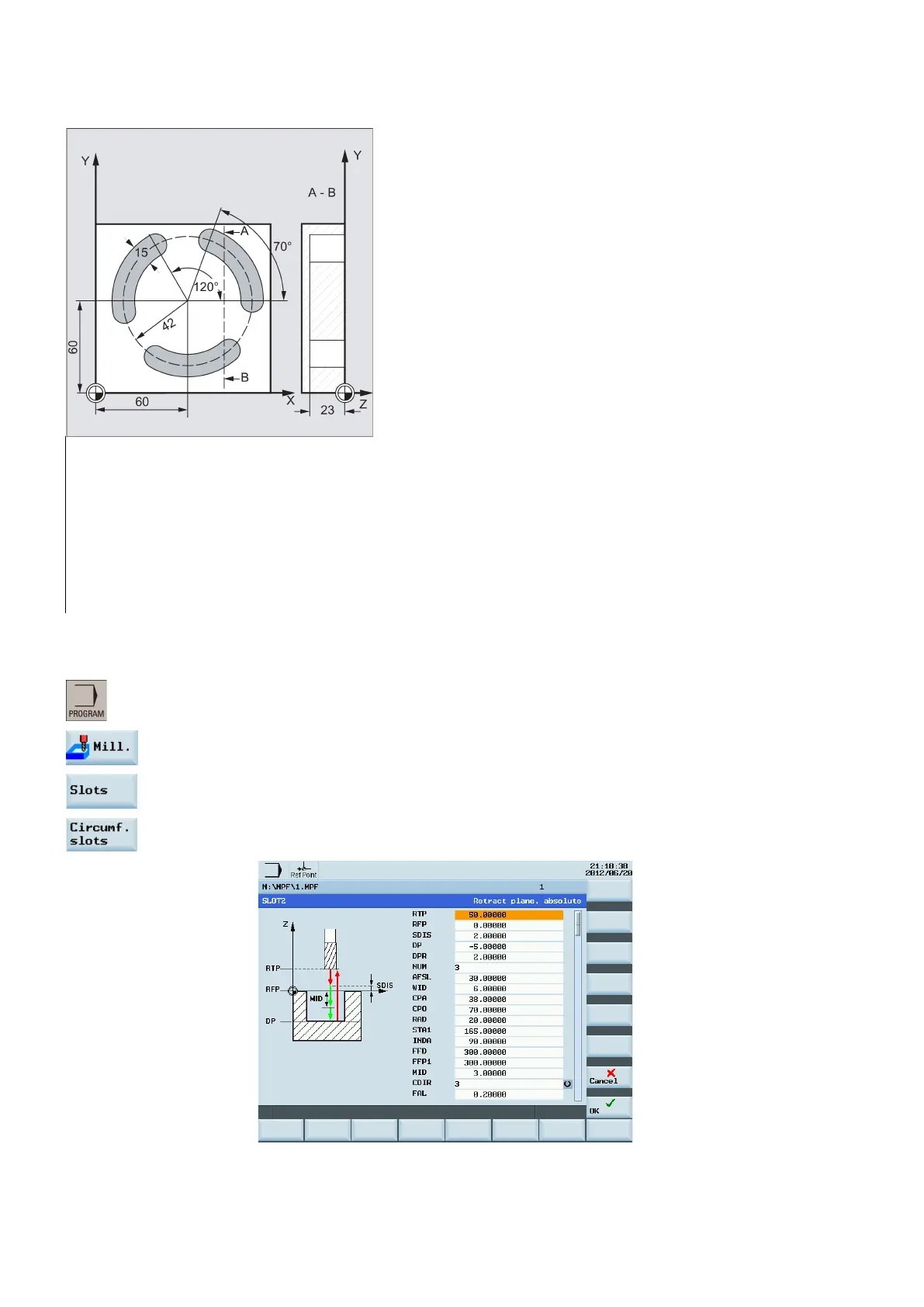

See the following programming example for circumferential slot:
N10 G17 G90 T1 D1 S600 M3
; Specification of technology values
N20 G0 X60 Y60 Z5
; Approach starting position
N30 SLOT2(2, 0, 2, -23, , 3, 70, 15, 60, 60, 42, , 120,
100, 300, 6, 2, 0.5, 0, , 0, )
; Cycle call
Reference plane+SDIS=retraction plane
means: Lowering in the infeed axis with
G0 to reference plane+SDIS no longer
applicable, parameters VAR, MIDF, FFP2
and SSF omitted
N40 M02
; End of program
Programming example 2: Slots2
Proceed through the following steps:
1.
Select the desired operating area.
2.
Open the vertical softkey bar for available milling cycles.
3.
Press this softkey from the vertical softkey bar.
4.
Press this softkey to open the window for SLOT2. Parameterize the cycle as desired.
