Programming and Operating Manual (Milling)
6FC5398-4DP10-0BA1, 01/2014
223

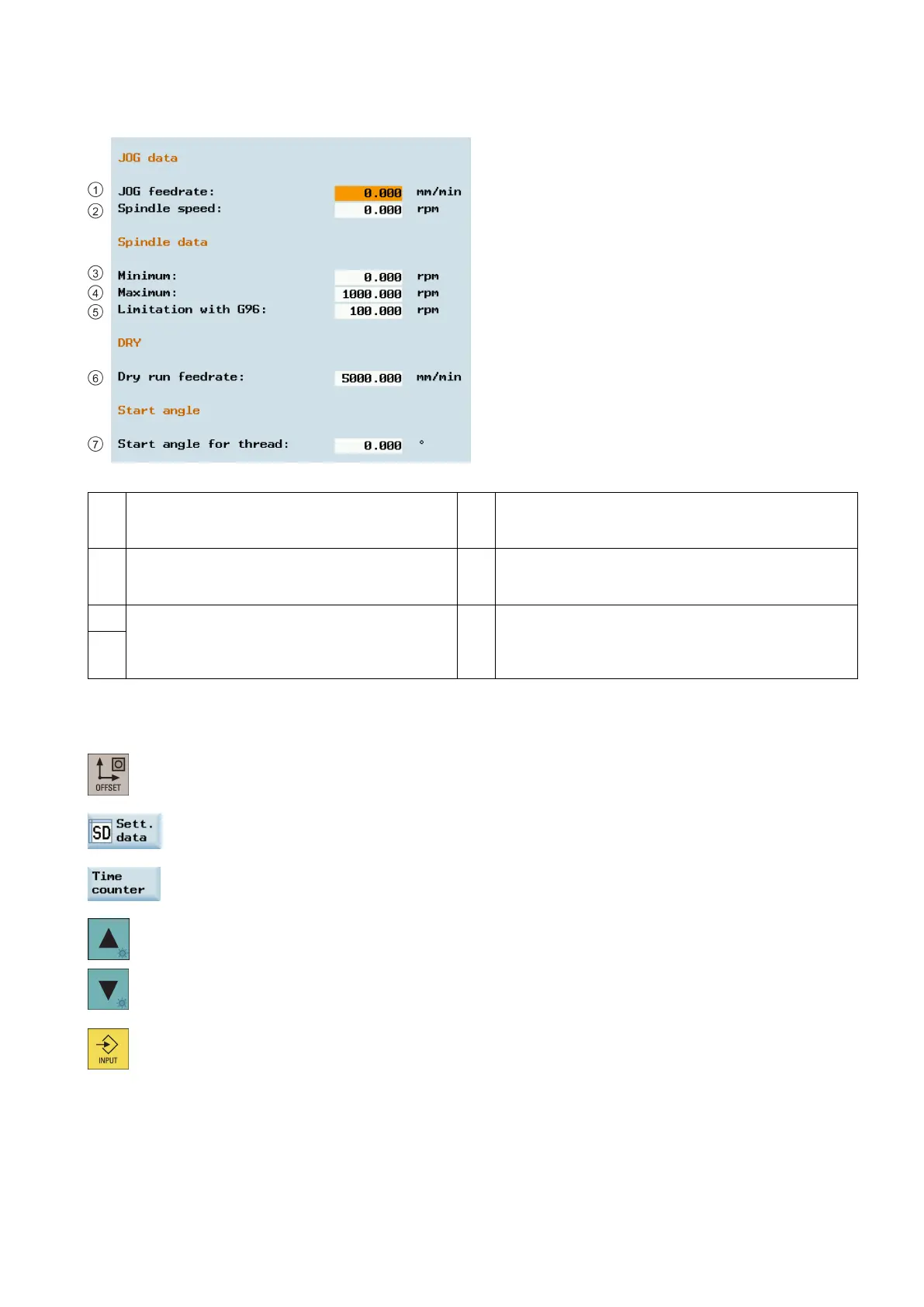

Parameters in the setting data window
①
The feedrate in "JOG" mode. If the feedrate value
is zero, then the control system will use the value
stored in the machine data.
⑤
Programmable upper speed limitation at constant cutting
rate (G96).
②
The speed of the spindle.
⑥
The feedrate which can be entered here will be used
instead of the programmed feedrate in "AUTO" mode if
the corresponding function is selected.
③
A limitation of the spindle speed in the Max.
(G26)/Min. (G25) fields can only be performed
within the limit values defined in the machine data.
⑦
For thread cutting, a start position for the spindle is
displayed as the start angle. A multiple thread can be cut
by changing the angle when the thread cutting operation
is repeated.
④
Setting the time counter
Operating sequence
1. Select the desired operating area.
2. Open the setting data window.
3. Open the time counter window.
4. Position the cursor bar in the input fields to be modified and enter the values (see table below for
the parameter descriptions).
5. Use this key or move the cursor to confirm your entries.
