Programming and Operating Manual (Milling)
48 6FC5398-4DP10-0BA1, 01/2014

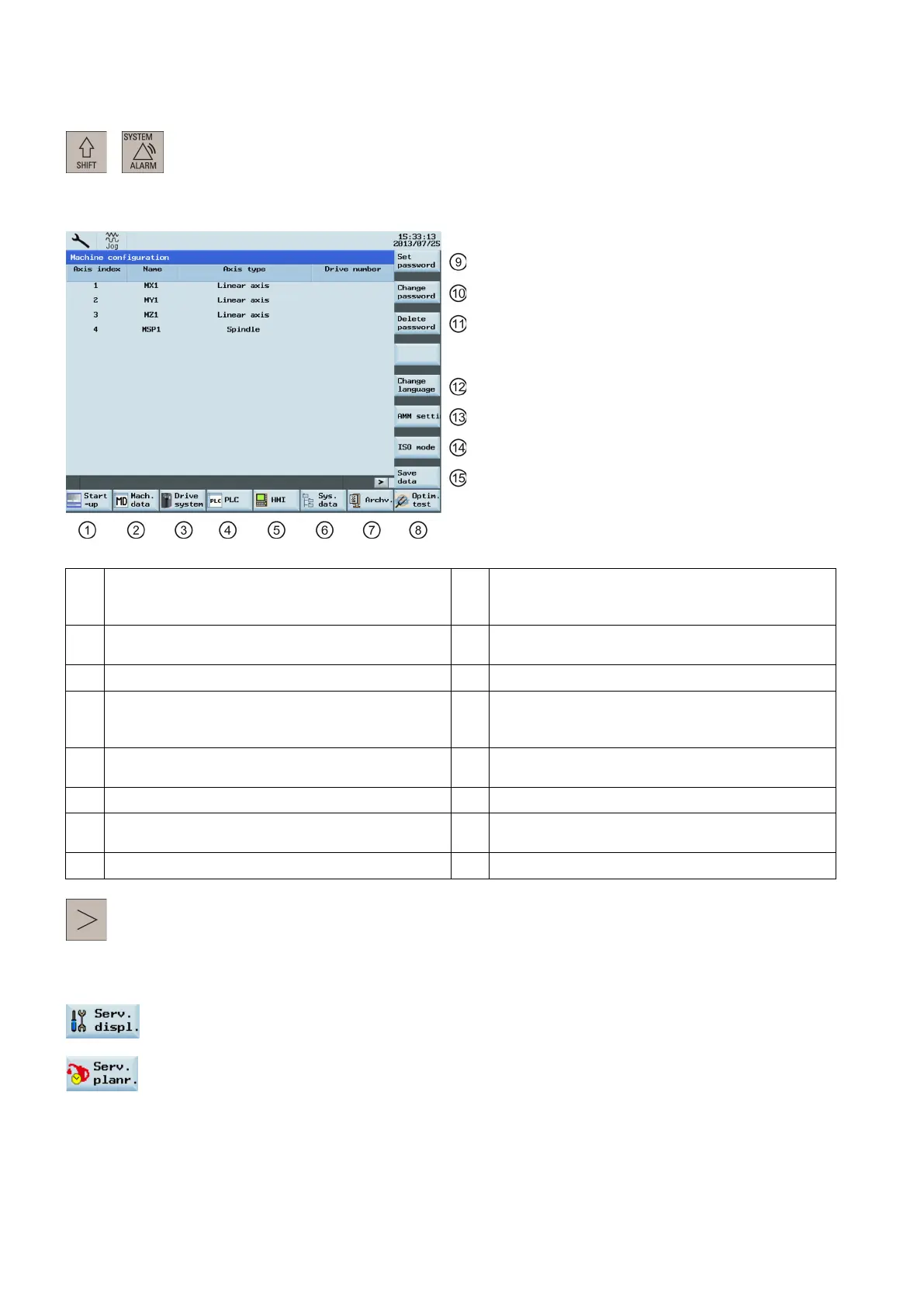

Overview of the system data management operating area
+
Pressing the above key combination allows you to open the following window. This operating area includes functions
required for parameterizing and analyzing the NCK, the PLC, and the drive.
①
Sets the NC, PLC and HMI start up modes
⑨
Enters the corresponding password (manufacturer
password, and end user password) for different
access levels
②
Sets the system machine data
⑩
Changes the password as per the corresponding
access levels
③
Configures the connected drives and motors
⑪
Deletes the current password
④
Provides PLC commissioning and diagnostics
⑫
Selects the user interface language. Note that the
HMI is automatically restarted when a new language
is selected.
⑤
Sets the system date and time and adjusts the
brightness of the screen
⑬
Configures the access right for the remote control
through the Ethernet connection
⑥
Backs up and restores system data
⑭
Switches to the ISO programming mode
⑦
Creates and restores startup archives, data archive
⑮
Saves the contents of the volatile memory into a non-
volatile memory area
⑧
Performs the axis optimization
An extended horizontal softkey bar can be accessed via this key on the PPU. Two extended horizontal softkeys
are provided:
An extended horizontal softkey bar can be accessed via this key on the PPU. Two extended horizontal softkeys are
provided:
Views the service information
Defines the maintenance planner
For more information about the softkey functions in this operating area, refer to SINUMERIK 808D ADVANCED Diagnostics
Manual.
