The instructions which contain ROT or AROT each require a separate block.

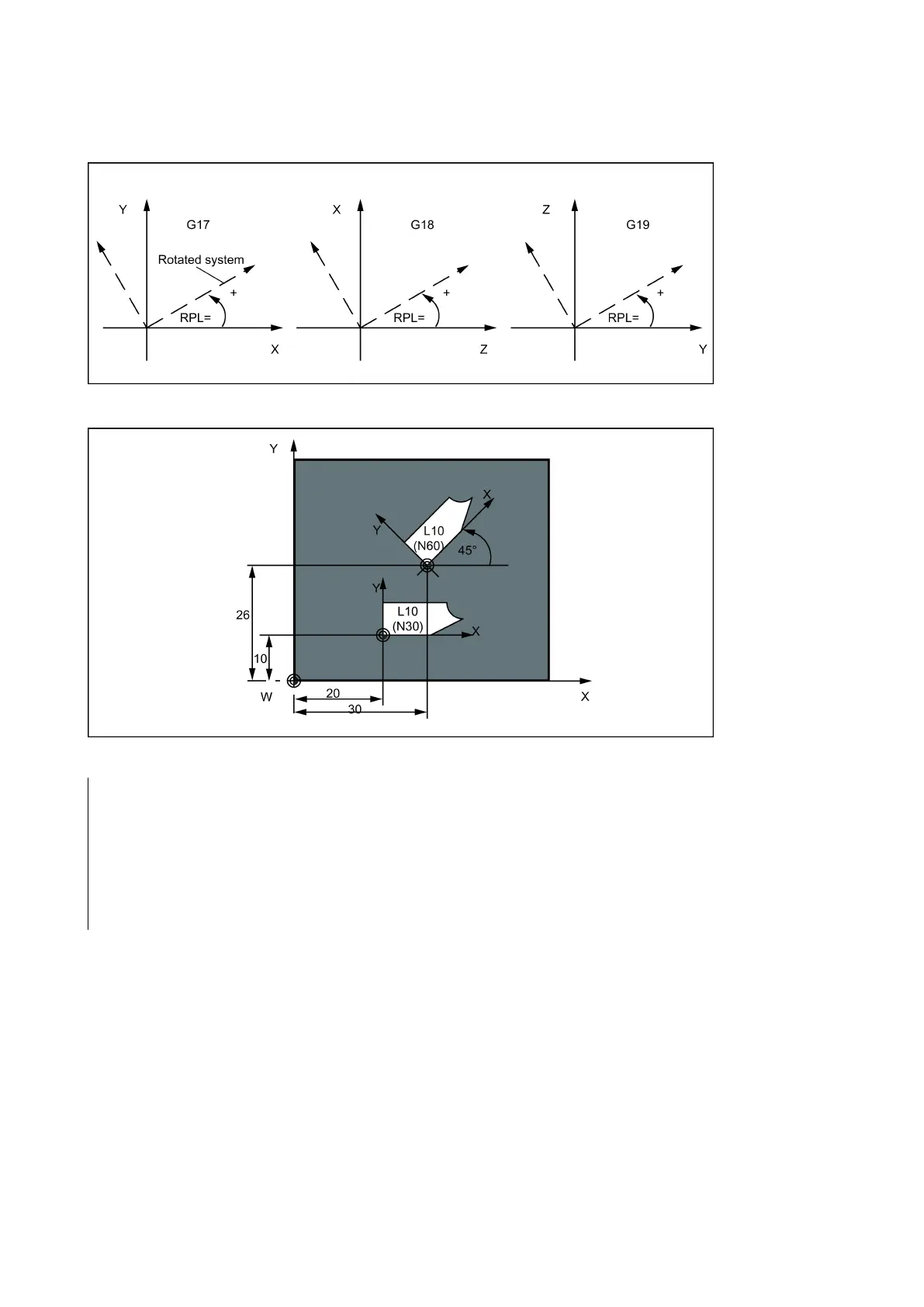

See the following illustration for definition of the positive direction of the angle of rotation in the individual planes:
See the following illustration for programming example for programmable offset and rotation:
; Programmable translation
; Subroutine call; contains the geometry to be offset
; Additive 45 degree rotation
; Offset and rotation cleared
Subroutine call - see Section "Subroutine technique (Page 110)".
