Siemens SINUMERIK 808D ADVANCED Programming And Operating Manual

Programming and Operating Manual (Milling)
6FC5398-4DP10-0BA1, 01/2014
71
Programming
G1 X... Y... Z... F... ; Cartesian coordinates
G1 AP=... RP=... F... ; Polar coordinates
G1 AP=... RP=... Z... F... ; cylindrical coordinates (3dimensional)
Note
Another option for linear programming is available with the angle specification ANG=... (see Section "Contour definition
programming (Page 88)").

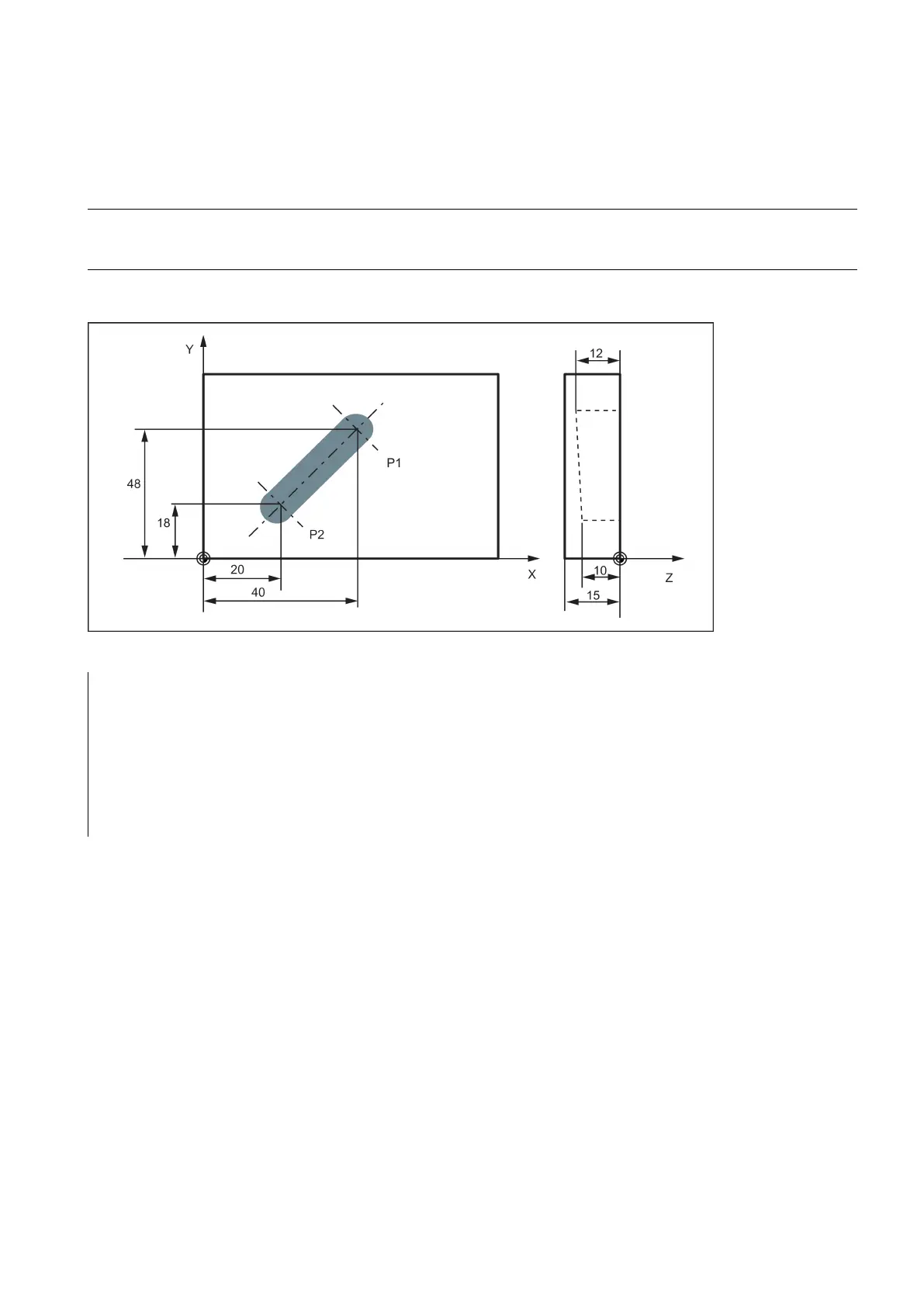

See the illustration for linear interpolation in three axes using the example of a slot:
Programming example
N05 G0 G90 X40 Y48 Z2 S500 M3 ; The tool traverses in rapid traverse on P1,
three axes concurrently, spindle speed = 500 rpm,
clockwise
N10 G1 Z-12 F100
; Infeed on Z-12, feed 100 mm/min
N15 X20 Y18 Z-10
; Tool travels on a straight line in space on P2
N20 G0 Z100
; Retraction in rapid traverse
N25 X-20 Y80
N30 M2
; End of program
To machine a workpiece, spindle speed S ... and direction M3/M4 are required (see Section "Spindle movements
(Page 87)").
