Programming and Operating Manual (Milling)
6FC5398-4DP10-0BA1, 01/2014
89
ANG=... ; Angle specification for defining a straight line
RND=... ; Insert rounding, value: Radius of chamfer
CHR=... ; Insert chamfer, value: Side length of the chamfer
The blueprint programming function is executed in the current plane G17 to G19. It is not possible to change the plane
during blueprint programming.
If radius and chamfer are programmed in one block, only the radius is inserted regardless of the programming sequence.
If only one end point coordinate of the plane is known for a straight line or for contours across multiple blocks the cumulative
end point, an angle parameter can be used for uniquely defining the straight line path. The angle is always referred to the
abscissa of the current plane G17 to G19, e.g. for G17 on the X axis. Positive angles are aligned counter-clockwise.

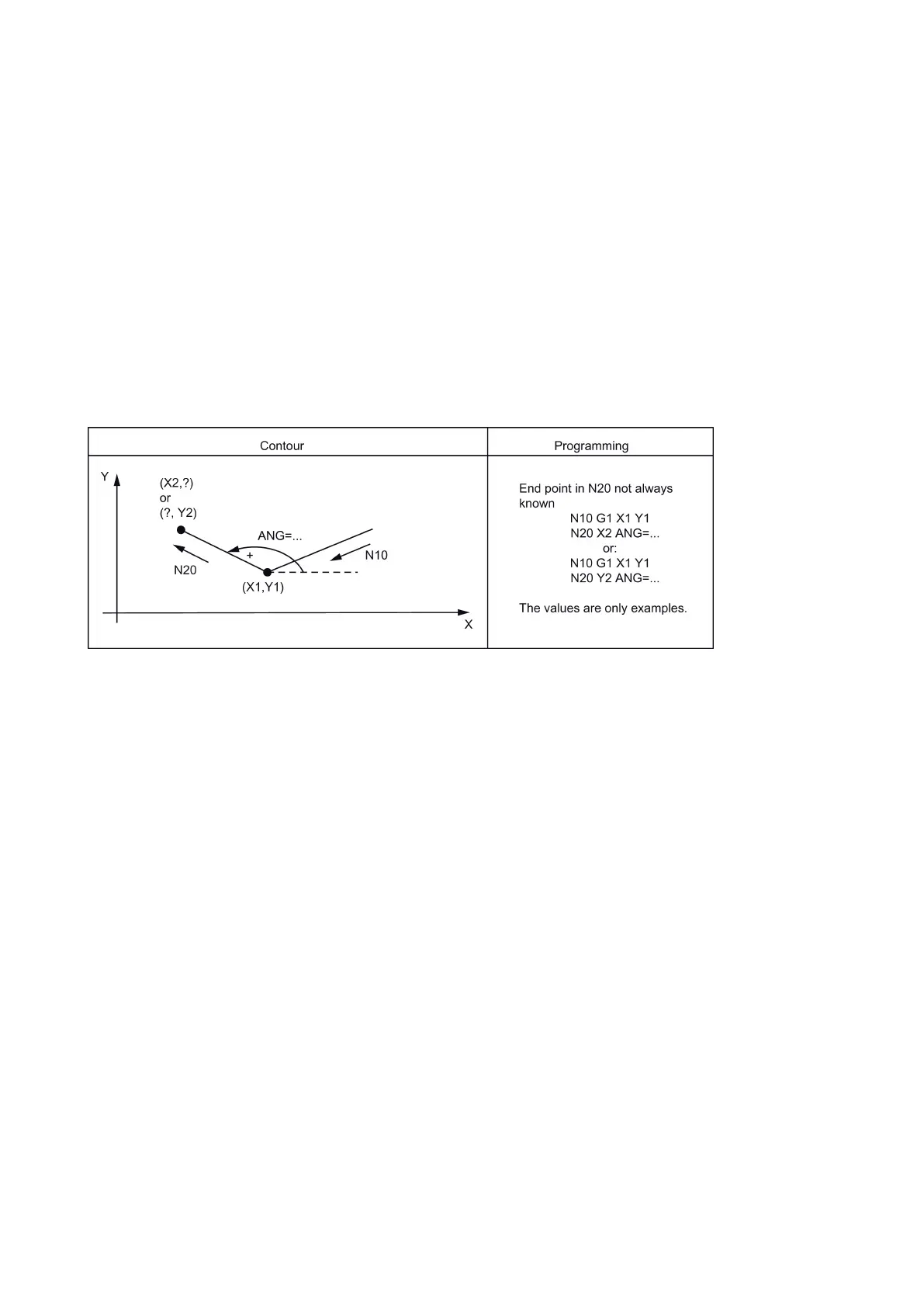

See the following specification of an angle for determination of a straight line using the example of the G17 plane:
