Programming and Operating Manual (Milling)
92 6FC5398-4DP10-0BA1, 01/2014

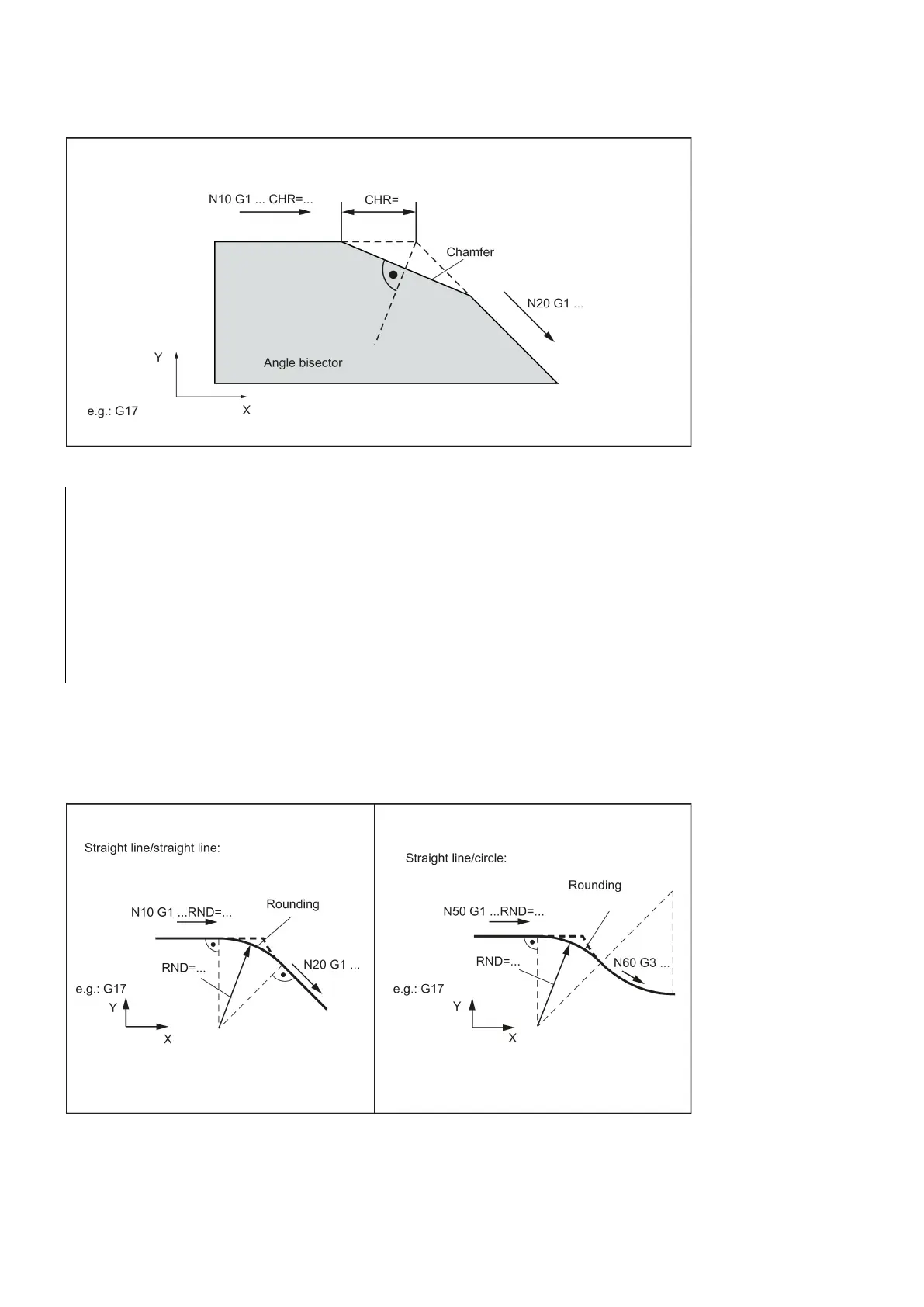

See the following illustration for inserting a chamfer with CHR using the example: Between two straight lines.
Programming examples of chamfer
N5 G17 G94 F300 G0 X100 Y100
; Insert chamfer with chamfer length of 5 mm
; Insert chamfer with leg length of 7 mm
N200 G1 FRC=200 X30 CHR=4
; Insert chamfer with feedrate FRC
A circle contour element can be inserted with tangential connection between the
linear and circle contours
in any
combination.
See the following examples for inserting roundings:
