Siemens SIPROTEC 7SJ80 User Manual

[7sj80-unterspgs-schutz-20061219, 1, en_US]

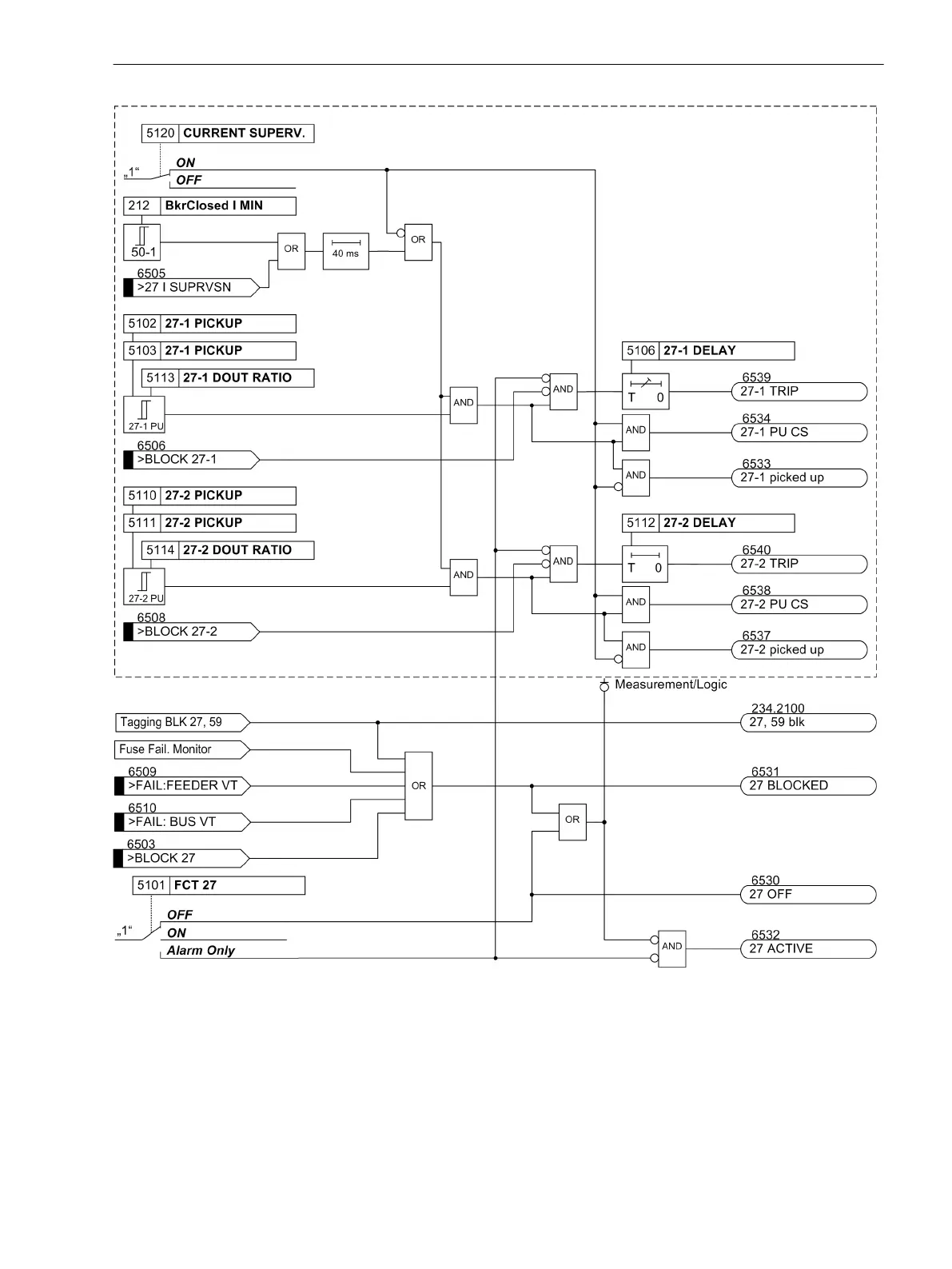

Figure 2-47
Logic diagram of the undervoltage protection
Setting Notes
General
Voltage protection is only effective and accessible if address 150 27/59 is set to Enabled during configura-
tion of protection functions. If this function is not required, then Disabled is set.
2.6.4
Functions
2.6 Voltage Protection 27, 59
SIPROTEC 4, 7SJ80, Manual 127
E50417-G1140-C343-A8, Edition 12.2017

Siemens SIPROTEC 7SJ80 Specifications

General

Rated Frequency	50/60 Hz
Rated Current	1 A / 5 A
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to +70°C
Current Transformer Inputs	4
Application	Protection of feeders, motors, transformers, and generators
Rated Voltage	100-240 V AC/DC
Communication Protocols	IEC 61850, Modbus, DNP3, IEC 60870-5-103
Display	Graphical LCD
Mounting	Flush mounting
Protection Functions	Overcurrent, Earth fault
Communication Interfaces	Ethernet, RS485
Housing	Plastic
Weight	Approx. 1.5 kg
