Siemens SIPROTEC 7SJ80 User Manual

[com-modul-20071107, 1, --_--]

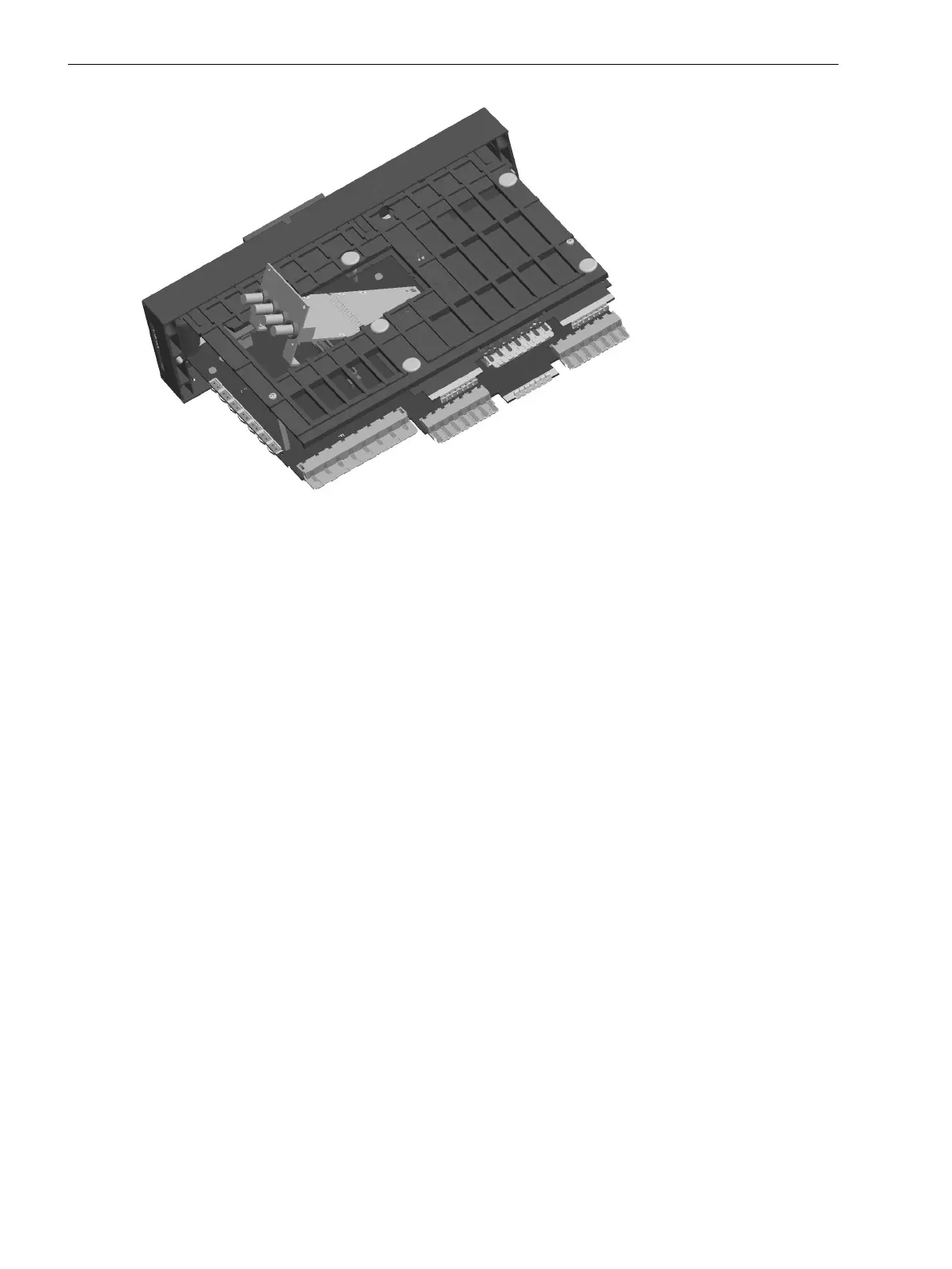

Figure 3-9 Installation of a SIPROTEC 4 communication module
The device can now be reassembled again (see Section Reassembly).
Reassembly
The reassembly of the device is performed in the following steps:
Carefully insert the complete electronics block into the housing. Please observe the following:
The connections of the communication modules point at the bottom of the housing. If there is no communica-
tion module, orient yourself to the connections for the current terminal. These connections are located on the
side of the printed circuit board pointing at the device bottom.
Insert the electronics block into the housing, until the supporting part rests against the front edge of the
housing. Press the left housing wall slightly out and insert the electronics block carefully further into the
housing. When the front edge of the housing and the inside of the front plate touch, center the front plate by
carful lateral movements. This makes sure that the front plate encloses/surrounds the housing. The electronics
block can only be inserted centered up to the end stop.
3.1.2.5
Mounting and Commissioning
3.1 Mounting and Connections
322 SIPROTEC 4, 7SJ80, Manual
E50417-G1140-C343-A8, Edition 12.2017

Siemens SIPROTEC 7SJ80 Specifications

General

Rated Frequency	50/60 Hz
Rated Current	1 A / 5 A
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to +70°C
Current Transformer Inputs	4
Application	Protection of feeders, motors, transformers, and generators
Rated Voltage	100-240 V AC/DC
Communication Protocols	IEC 61850, Modbus, DNP3, IEC 60870-5-103
Display	Graphical LCD
Mounting	Flush mounting
Protection Functions	Overcurrent, Earth fault
Communication Interfaces	Ethernet, RS485
Housing	Plastic
Weight	Approx. 1.5 kg
