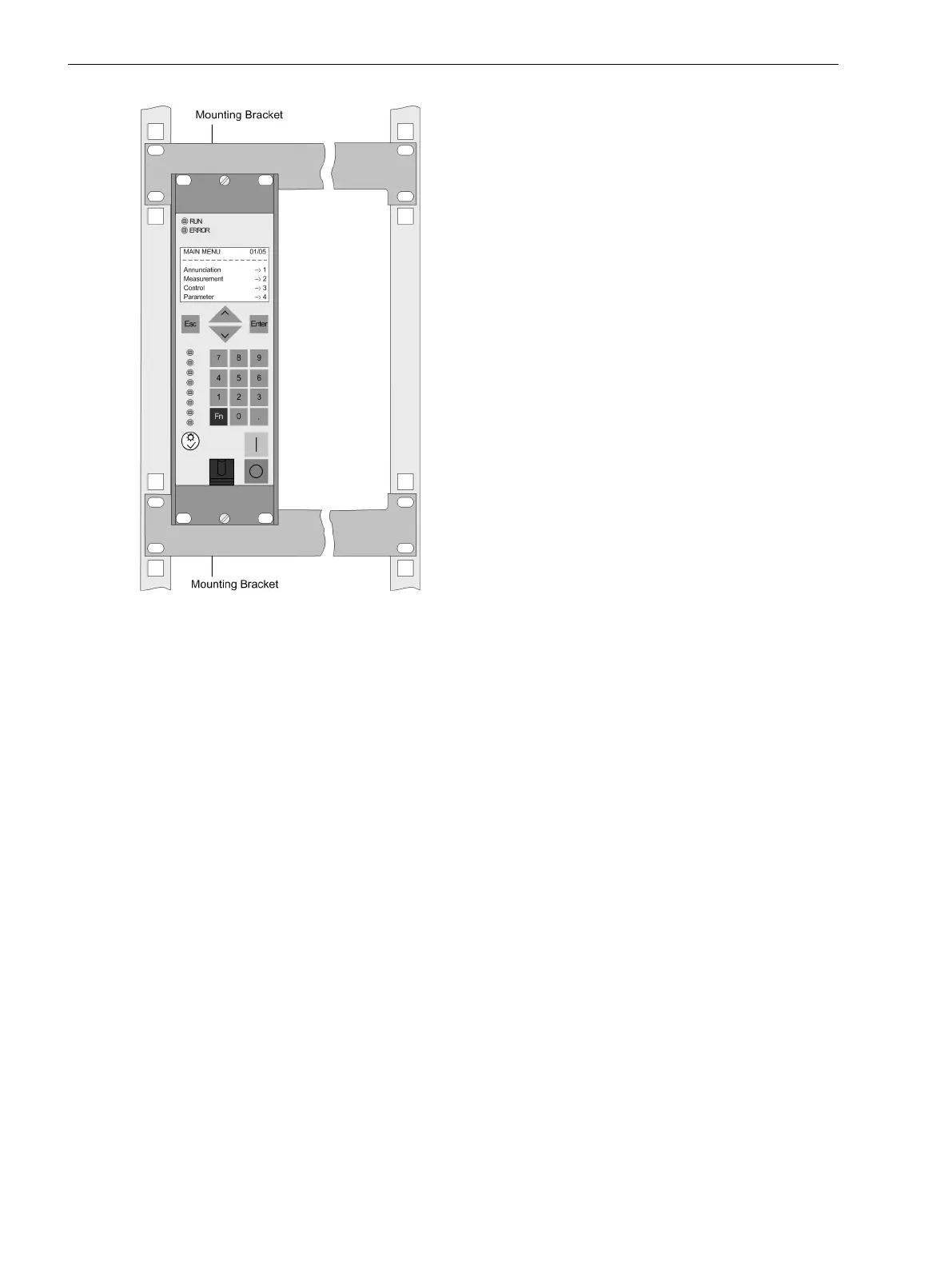

Figure 3-14
Example installation of a 7SJ80 in a rack or cubicle
Panel Surface Mounting
When ordering the device as surface-mounting case (9th digit of the ordering number= B), the mounting
frame shown below is part of the scope of delivery.
For installation, proceed as follows:
•
Drill the holes for the mounting frame into the control panel.
•
Fasten the mounting frame with 4 screws to the control panel (the continuously open side of the
mounting frame is intended for the cable harnesses and can point at the top or bottom according to
customer specification).
•
Loosen the terminal blocks for the wiring, wire the terminal blocks and then click them in again.
•
Connect a solid low-ohmic protective and operational ground to the grounding terminal of the device.
The cross-section of the cable used must correspond to the maximum connected cross-section but must
be at least 2.5 mm
2
(Grounding area > M4, grounding area to be lacquer-free).
•
Connections are to be established via the screw terminals on the rear panel of the device in accordance
with the circuit diagram. The details on the connection technique for the communication modules at the
bottom of the device (port A and port B) in accordance with the SIPROTEC 4 System Description and the
details on the connection technique for the current and voltage terminals on the rear of the device in the
Sections “Connections of the Current Terminals” and “Connections of the Voltage Terminals” must be
strictly observed.
•
Insert the device into the mounting frame (make sure that no cables are jammed).
•
Secure the device to the mounting frame with 4 screws. For dimensional drawings, refer to the Technical
Data, Section 4.25 Dimensions.
3.1.3.4
Mounting and Commissioning
3.1 Mounting and Connections
326 SIPROTEC 4, 7SJ80, Manual
E50417-G1140-C343-A8, Edition 12.2017
