Siemens SIPROTEC 7SJ80 User Manual

Dimensions
Panel Flush and Cubicle Mounting (Housing Size 1/6)
[abmess-sechstel-gehaeuse-7sx80-060606, 1, en_US]

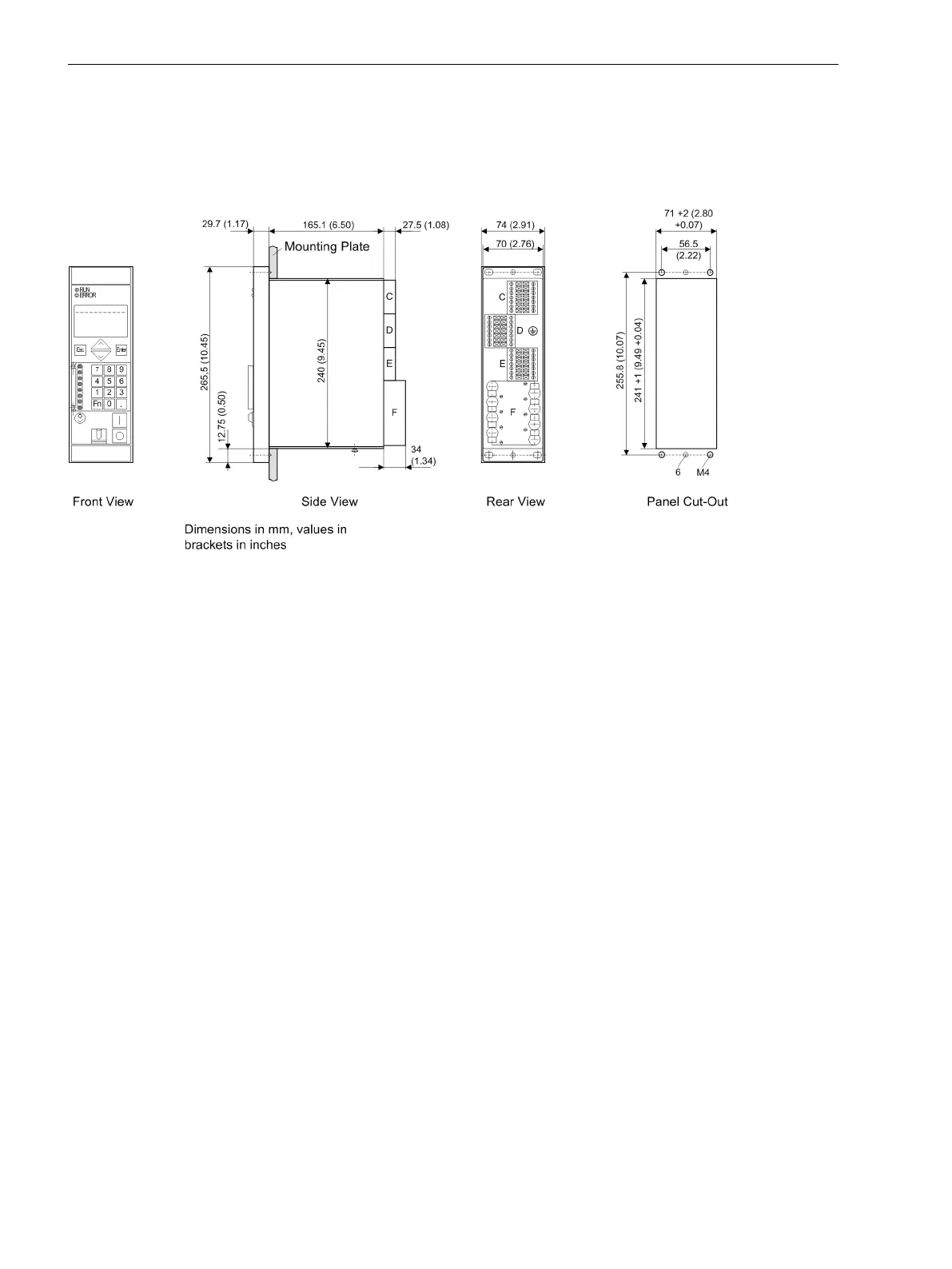

Figure 4-12
Dimensional drawing of a 7SJ80 for panel flush or cubicle mounting (housing size
1
/
6
)
Note: A set of mounting brackets (consisting of upper and lower mounting rail) (order no. C73165-A63-
D200-1) is required for cubicle mounting. When using the Ethernet interface, it may be necessary
to rework the lower mounting rail.
Provide for sufficient space at the device bottom side or below the device to accommodate the
cables of the communication modules.
4.25
4.25.1
Technical Data
4.25 Dimensions
422 SIPROTEC 4, 7SJ80, Manual
E50417-G1140-C343-A8, Edition 12.2017

Siemens SIPROTEC 7SJ80 Specifications

General

Rated Frequency	50/60 Hz
Rated Current	1 A / 5 A
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to +70°C
Current Transformer Inputs	4
Application	Protection of feeders, motors, transformers, and generators
Rated Voltage	100-240 V AC/DC
Communication Protocols	IEC 61850, Modbus, DNP3, IEC 60870-5-103
Display	Graphical LCD
Mounting	Flush mounting
Protection Functions	Overcurrent, Earth fault
Communication Interfaces	Ethernet, RS485
Housing	Plastic
Weight	Approx. 1.5 kg
