Siemens SIPROTEC 7SJ80

Panel Surface Mounting (Housing Size 1/6)
[abmess-sechstel-gehaeuse-aufbau-7sx80-060606, 1, en_US]
Figure 4-13

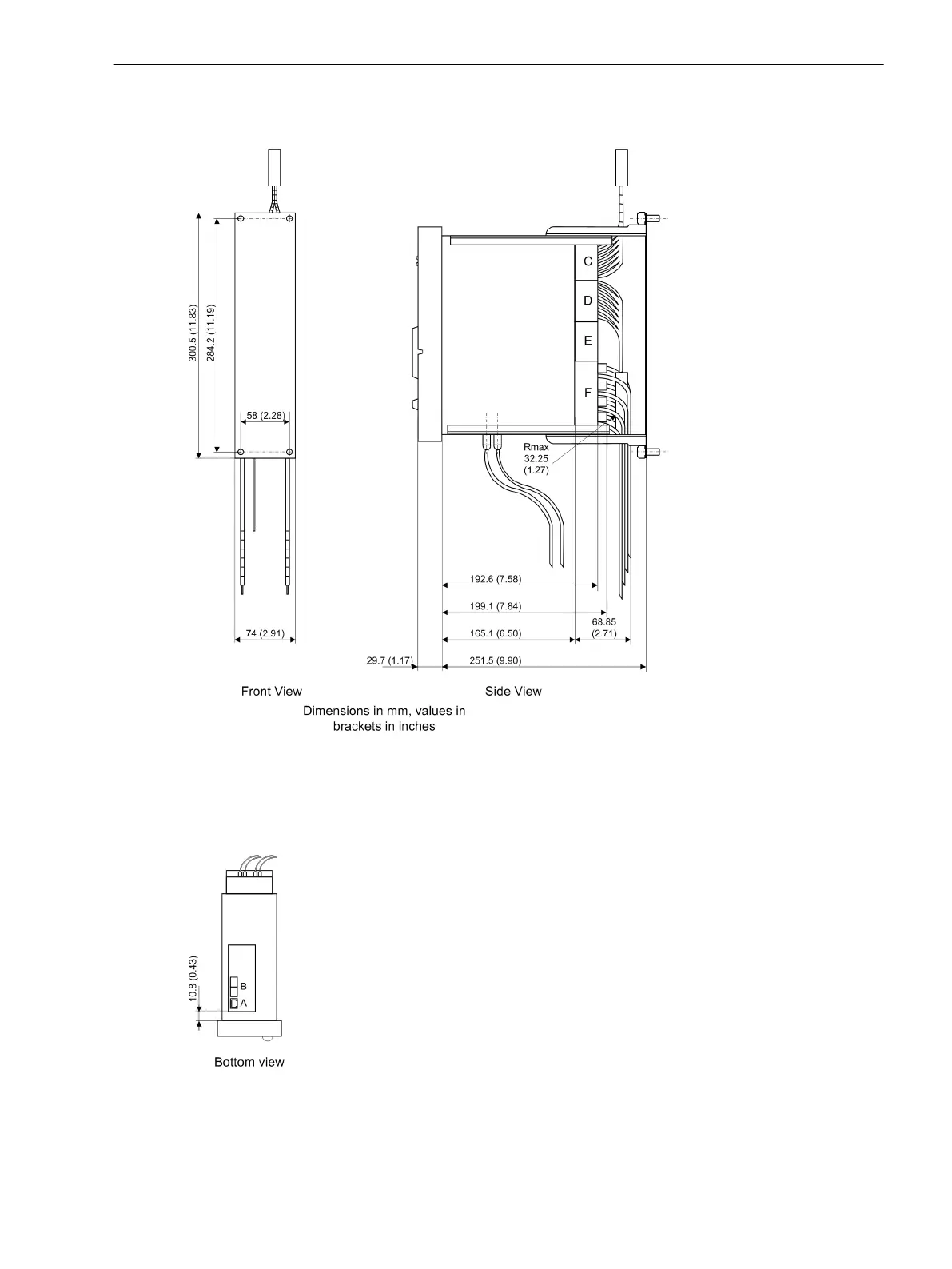

Dimensional drawing of a 7SJ80 for panel surface mounting (housing size
1
/
6
)
Bottom view
[ansicht-unten-sechstel-gehaeuse-7sx80-070914, 1, en_US]
Figure 4-14
Bottom view of a 7SJ80 (housing size
1
/
6
)
4.25.2
4.25.3
Technical Data
4.25 Dimensions
SIPROTEC 4, 7SJ80, Manual 423
E50417-G1140-C343-A8, Edition 12.2017
