[7sj80_ueberlastschutz-061116, 1, en_US]

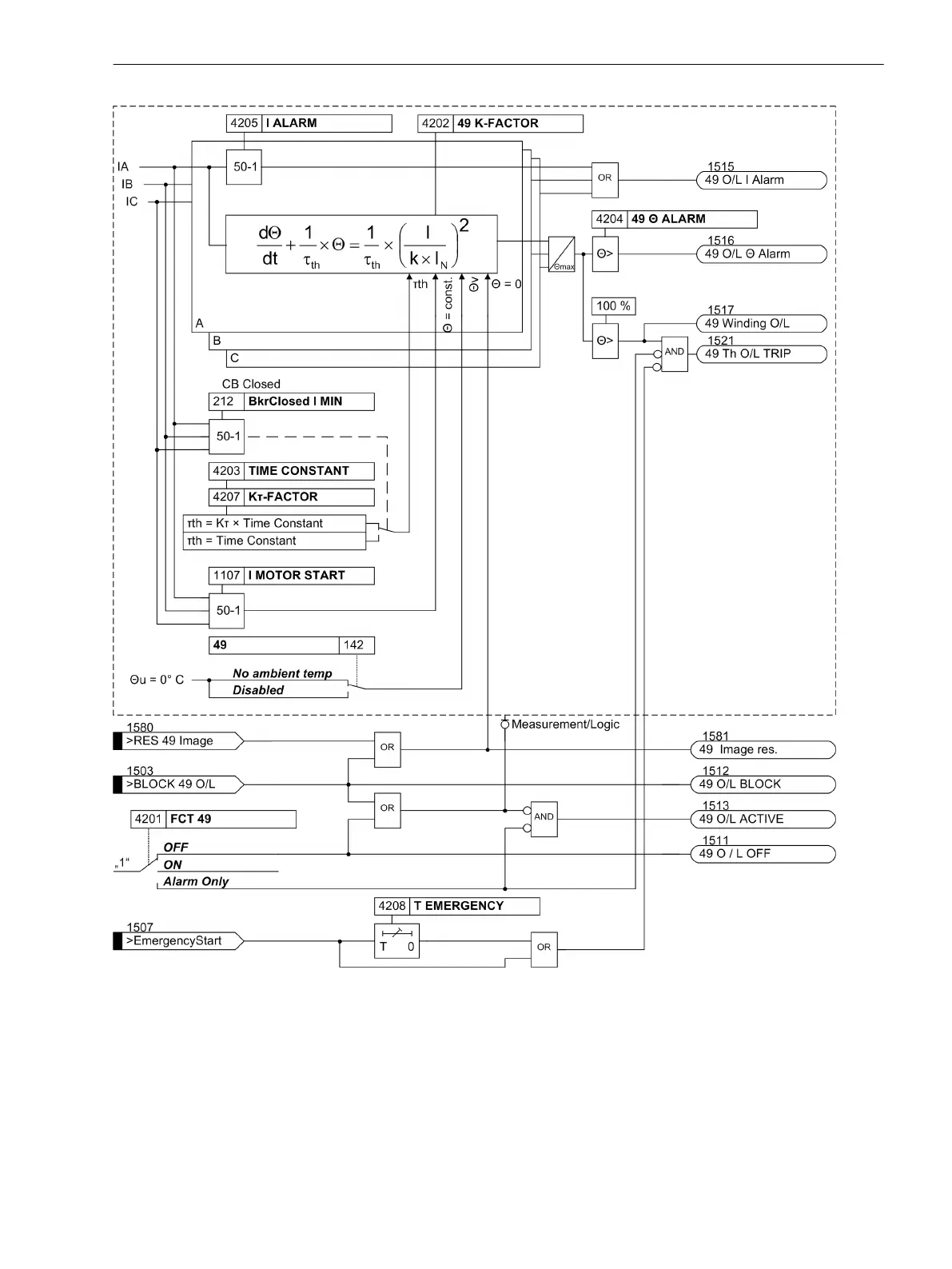

Figure 2-54
Logic diagram of the overload protection
Setting Notes
General
Overload protection is only in effect if address 142 49 is set to No ambient temp during configuration. If
this function is not required, select Disabled.
2.10.2
Functions
2.10 Thermal Overload Protection 49
SIPROTEC 4, 7SJ80, Manual 149
E50417-G1140-C343-A8, Edition 12.2017
