Siemens SIPROTEC 7SJ80

Connection Examples for Current and Voltage Transformers
[anschl-3-stromwdl-sternpunktstrom-060606, 1, en_US]

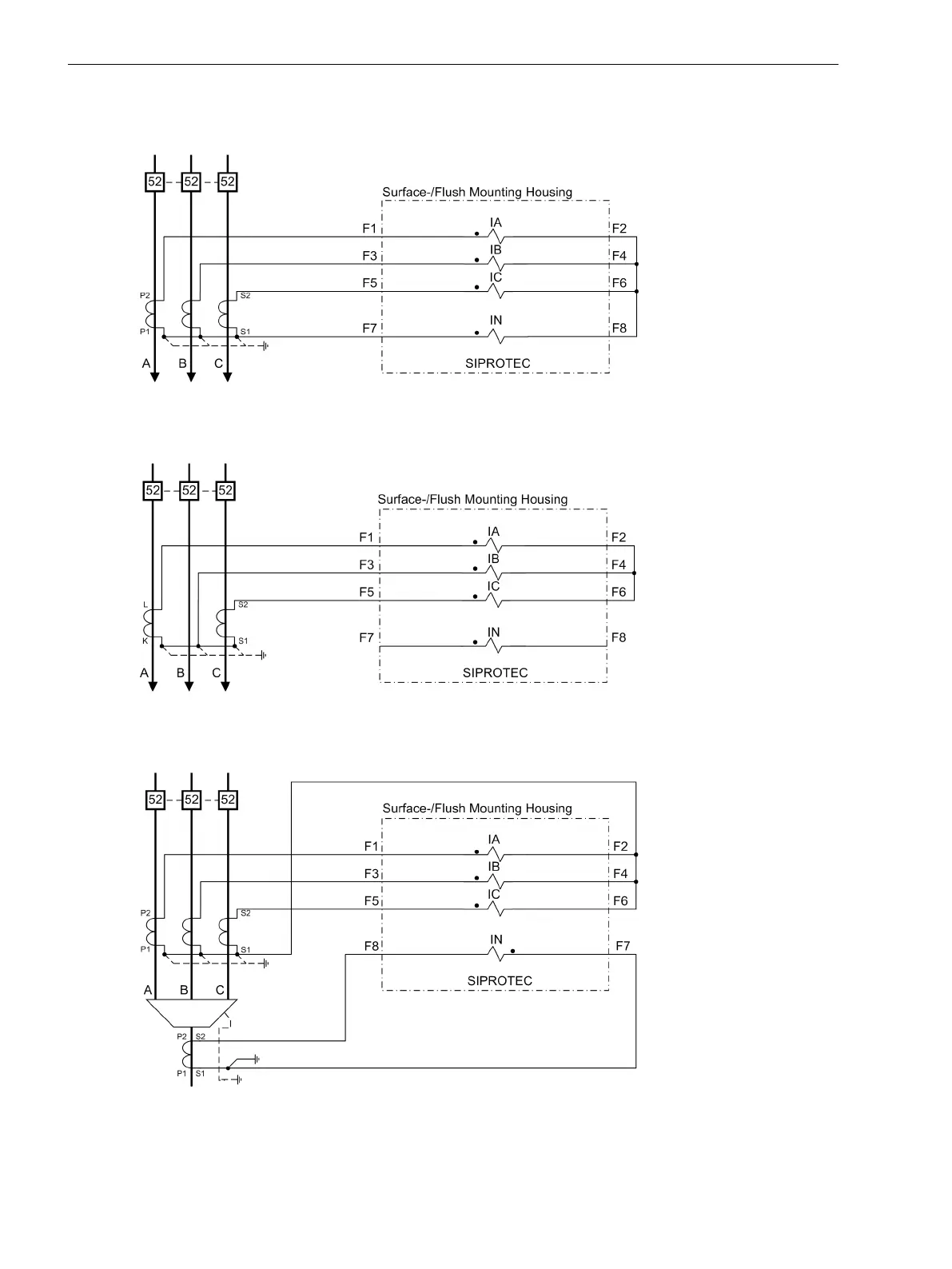

Figure C-1 Current transformer connections to three current transformers and neutral rpoint current
(ground current) (Holmgreen connection) – appropriate for all networks
[anschl-2-stromwdl-060606, 1, en_US]
Figure C-2 Current transformer connections to two current transformers – only for isolated or resonant-
grounded networks
[anschl-3-stromwdl-summenstromw-060606, 1, en_US]
Figure C-3 Current transformer connections to three current transformers, ground current from addi-
tional summation current transformer – preferably for effectively or low-resistance grounded
networks
C.1
Connection Examples
C.1 Connection Examples for Current and Voltage Transformers
442 SIPROTEC 4, 7SJ80, Manual
E50417-G1140-C343-A8, Edition 12.2017
