Siemens SIPROTEC 7SJ80 User Manual

Connection Examples for SICAM I/O Units
[sicam-io-unit-01-20120731-kn, 1, en_US]

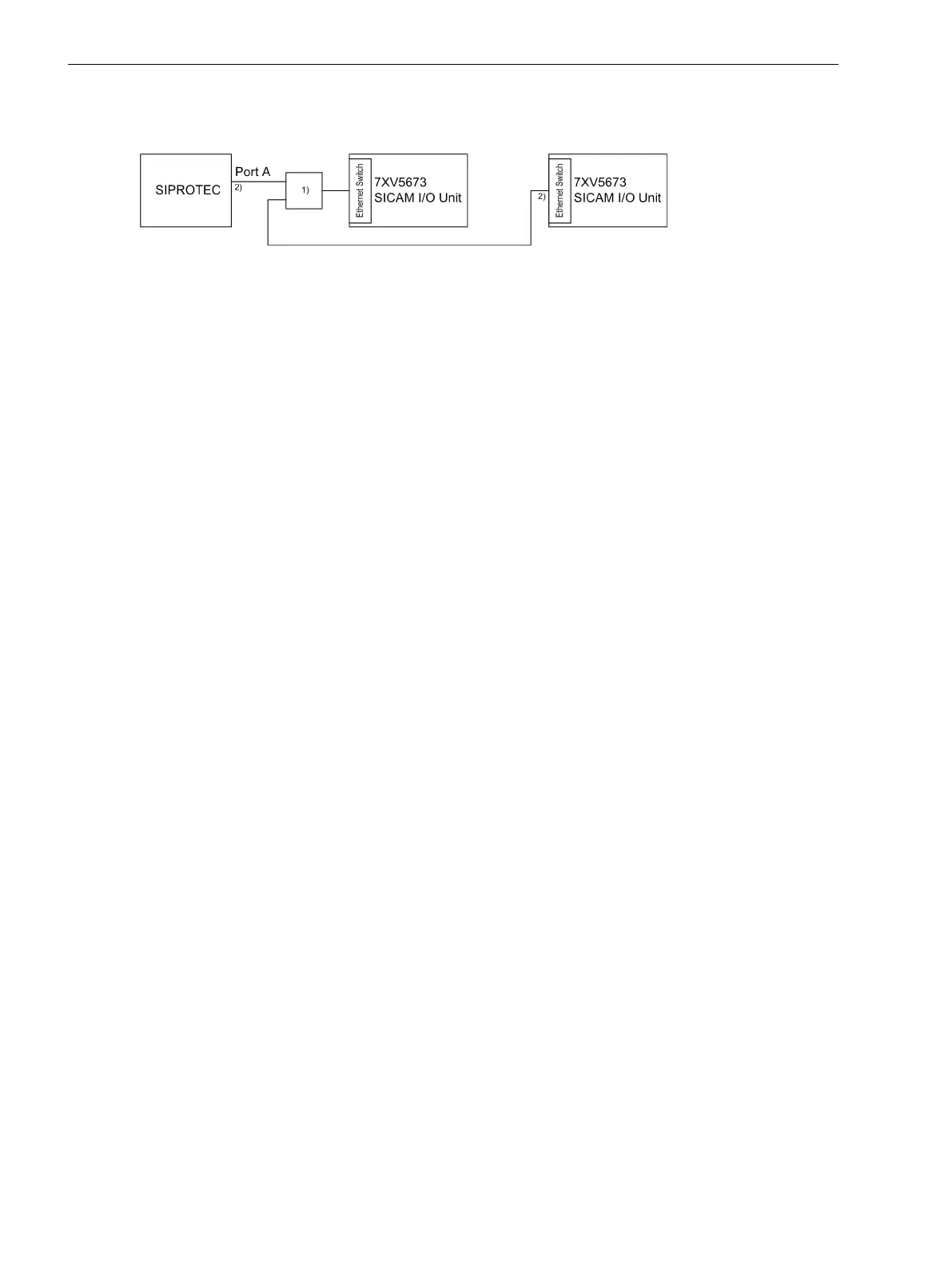

Figure C-23 Connection of 2 SICAM I/O units to port A via Y cable (up to 2 SICAM I/O units connectable)
1 Y cable 7KE6000–8GD00–0BA2
2 RJ45 cable
C.2
Connection Examples
C.2 Connection Examples for SICAM I/O Units
454 SIPROTEC 4, 7SJ80, Manual
E50417-G1140-C343-A8, Edition 12.2017

Siemens SIPROTEC 7SJ80 Specifications

General

Rated Frequency	50/60 Hz
Rated Current	1 A / 5 A
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to +70°C
Current Transformer Inputs	4
Application	Protection of feeders, motors, transformers, and generators
Rated Voltage	100-240 V AC/DC
Communication Protocols	IEC 61850, Modbus, DNP3, IEC 60870-5-103
Display	Graphical LCD
Mounting	Flush mounting
Protection Functions	Overcurrent, Earth fault
Communication Interfaces	Ethernet, RS485
Housing	Plastic
Weight	Approx. 1.5 kg
