[ausloese-iec-schieflast-inv-stark-extr-170502-wlk, 1, en_US]

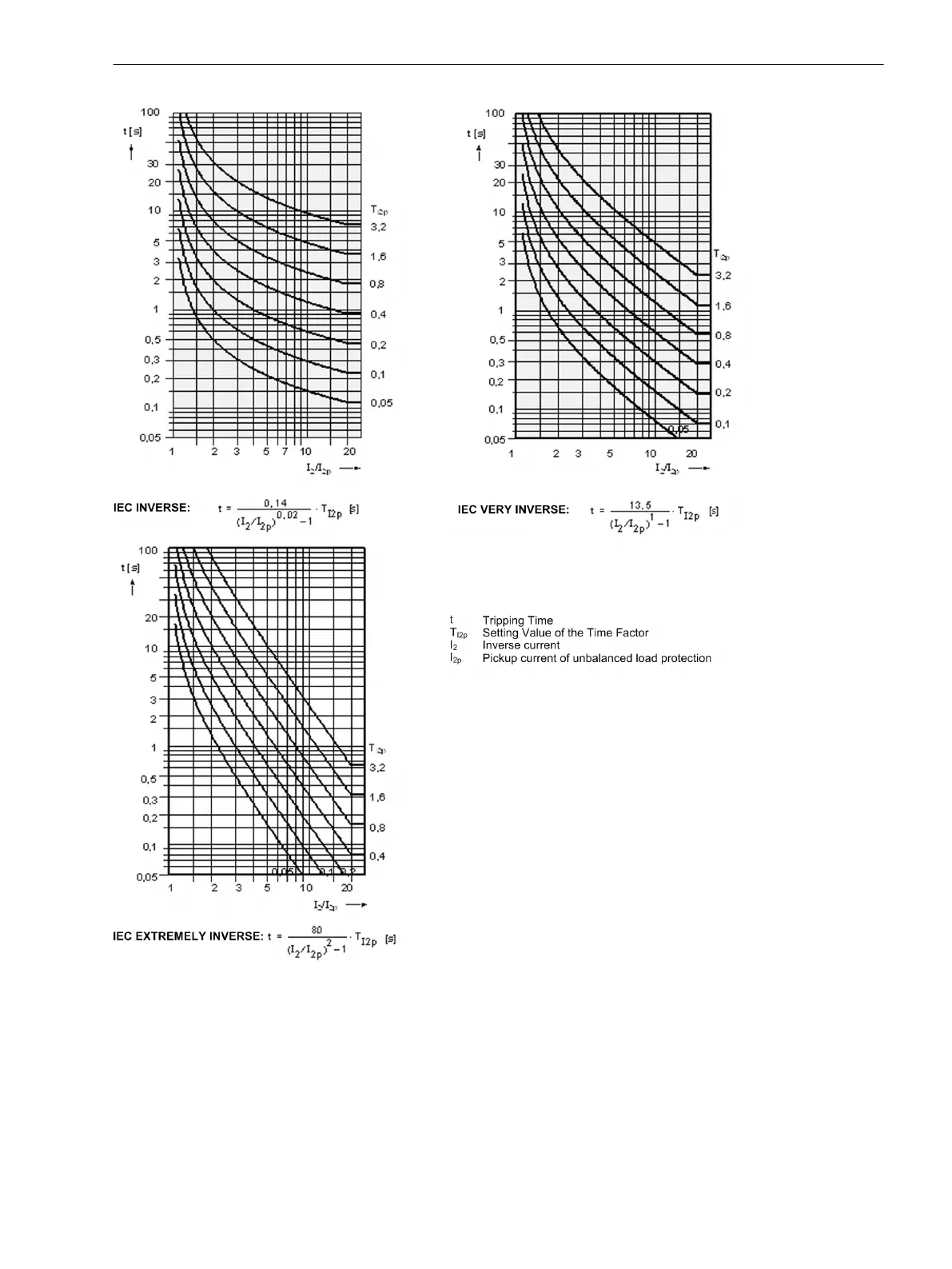

Figure 4-7
Trip time characteristics of the inverse time negative sequence element 46-TOC, acc. to IEC
Technical Data
4.10 Negative Sequence Protection (inverse-time characteristics)
SIPROTEC 4, 7SJ80, Manual 387
E50417-G1140-C343-A8, Edition 12.2017
