[ausl-rueckfall-schieflast-ansi-stark-extrem-170502-wlk, 1, en_US]

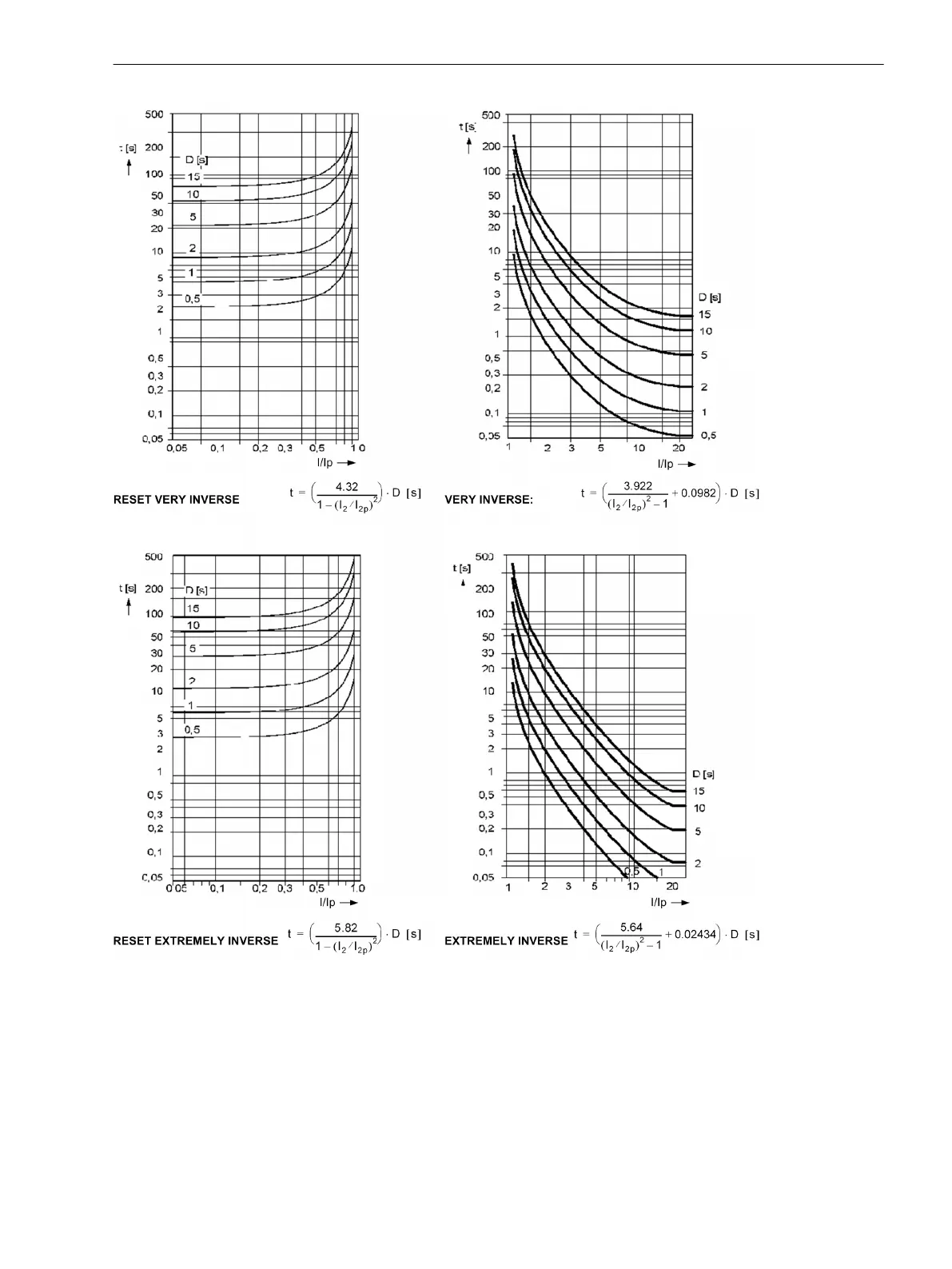

Figure 4-9
Dropout time and trip time characteristics of the inverse time unbalanced load stage, acc. to
ANSI
Technical Data
4.10 Negative Sequence Protection (inverse-time characteristics)
SIPROTEC 4, 7SJ80, Manual 389
E50417-G1140-C343-A8, Edition 12.2017
