Frequency in the range of 25 Hz to 70 Hz
Frequency in the range of 0.95 ≤ f/f
Nom
≤ 1.05 (f
Nom
= 50 Hz or 60 Hz) 1 %
Frequency outside range 0.95 ≤ f/f
Nom
≤ 1.05 Increased tolerances
[ausloesekennlinie-ueberlast-1111203-he, 1, en_US]
Figure 4-10

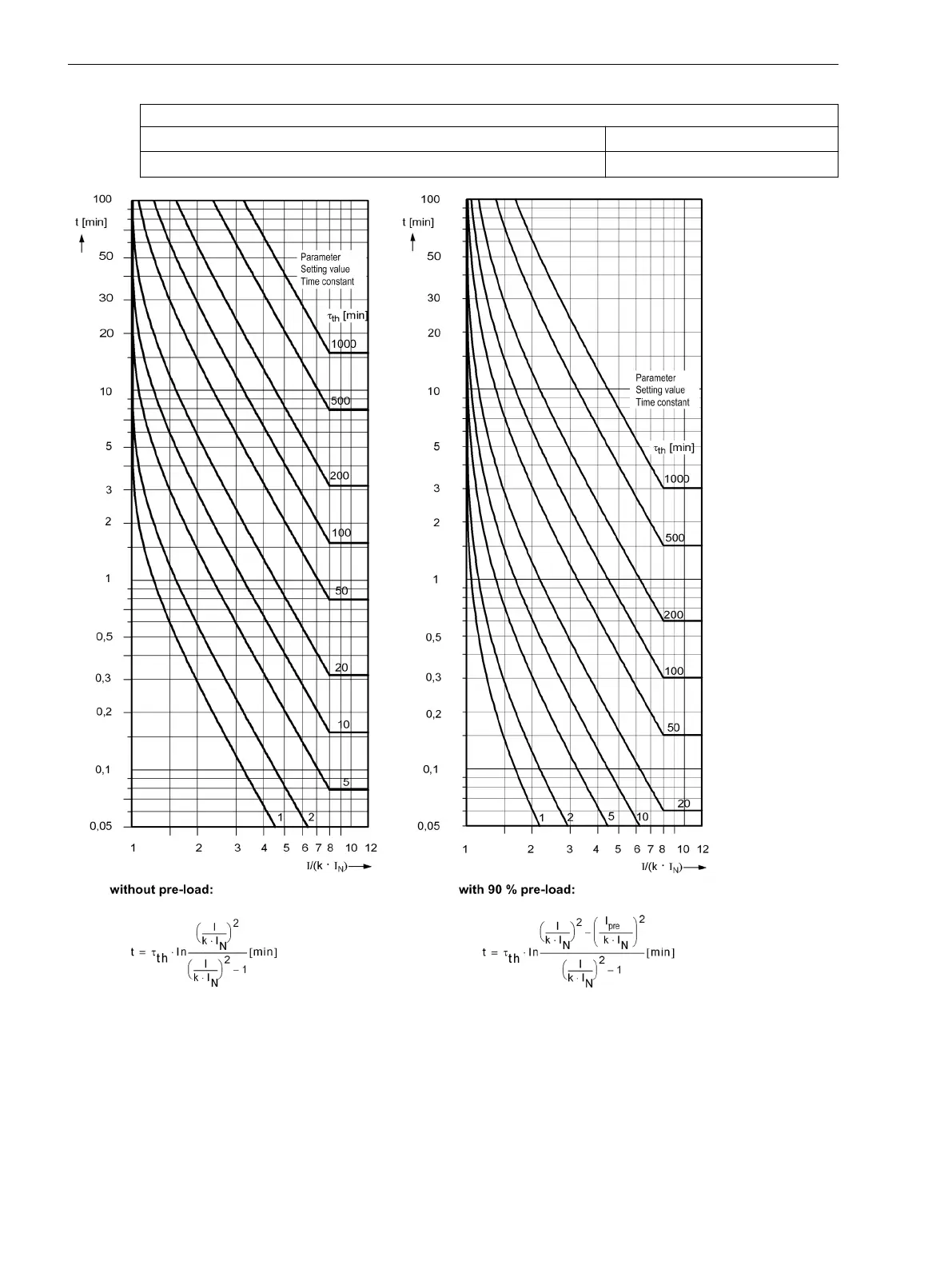

Trip time curves for the thermal overload protection (49)
Technical Data
4.13 Thermal Overload Protection
