7SJ807*
[kl-uebers-7sx80-7, 1, en_US]

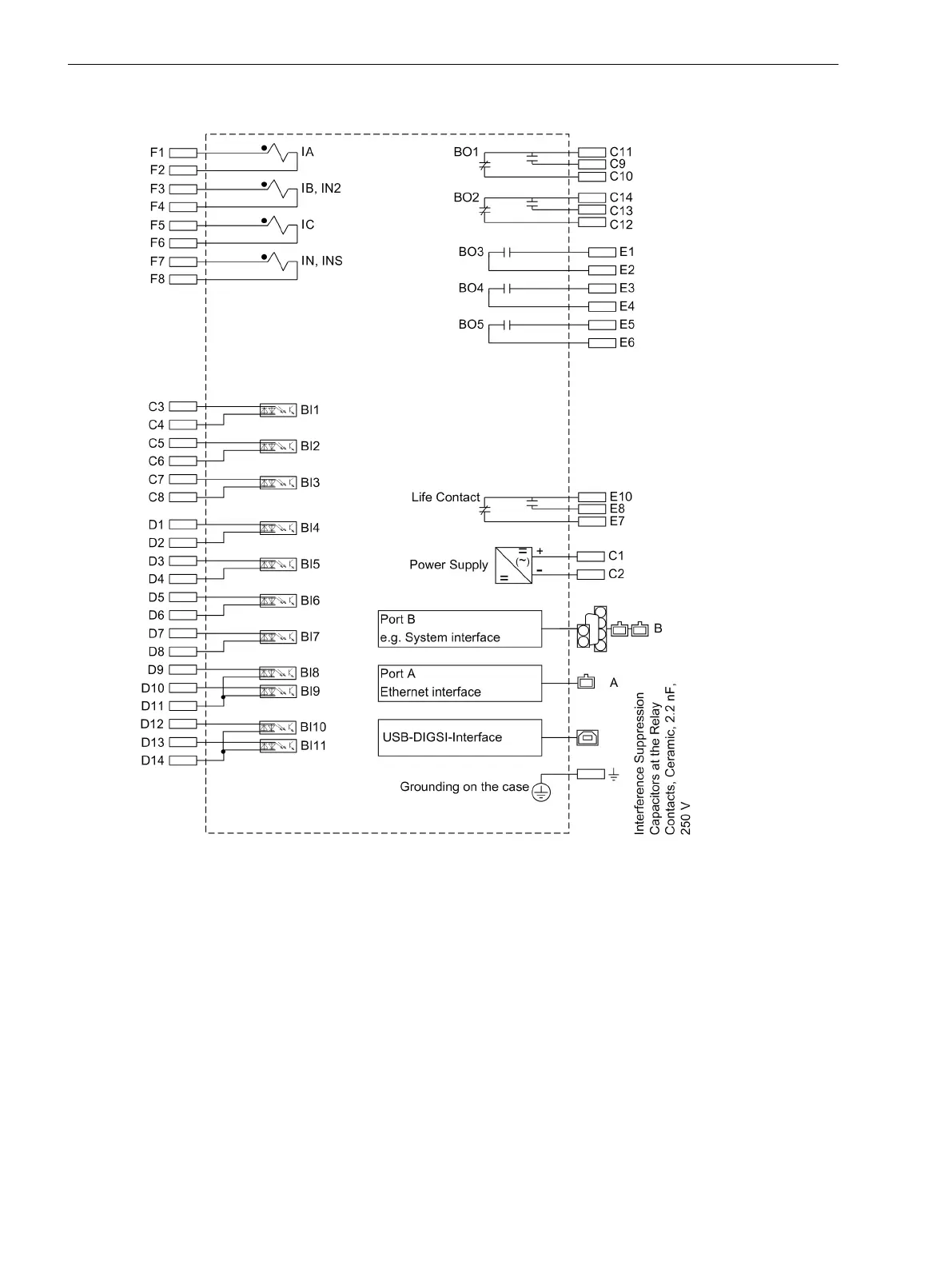

Figure B-5
Block diagram 7SJ807*
*) The shield of the connecting cable is connected directly to the shield cover
Terminal Assignments
B.1 7SJ80 — Housing for panel flush mounting and cubicle installation and for panel surface mounting
438 SIPROTEC 4, 7SJ80, Manual
E50417-G1140-C343-A8, Edition 12.2017
