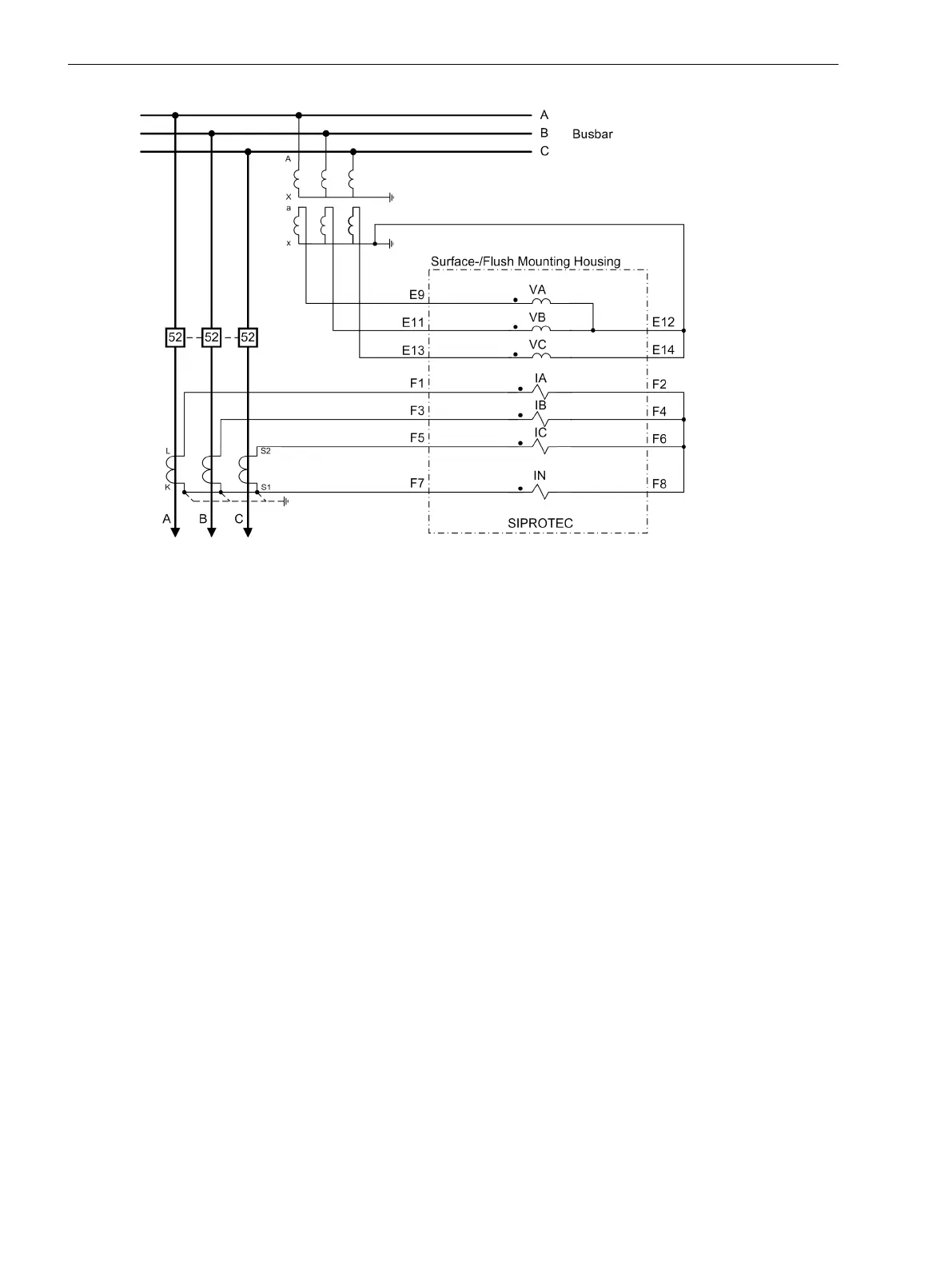

Figure C-6
Transformer connections to three current transformers and three voltage transformers (phase-
to-ground voltages), normal circuit layout – appropriate for all networks
Connection Examples
C.1 Connection Examples for Current and Voltage Transformers
444 SIPROTEC 4, 7SJ80, Manual
E50417-G1140-C343-A8, Edition 12.2017
