Important! Grounding of the cable shield must be effected at the cable side
For busbar-side grounding of the current transformers, the current polarity of the device is changed via
address 0201. This also reverses the polarity of the current input IN/INs. When using a cable-type current
transformer, the connection of k and I at F8 and F7 must be exchanged.
[7sj80-mess-2erdstroeme-20070301, 1, en_US]

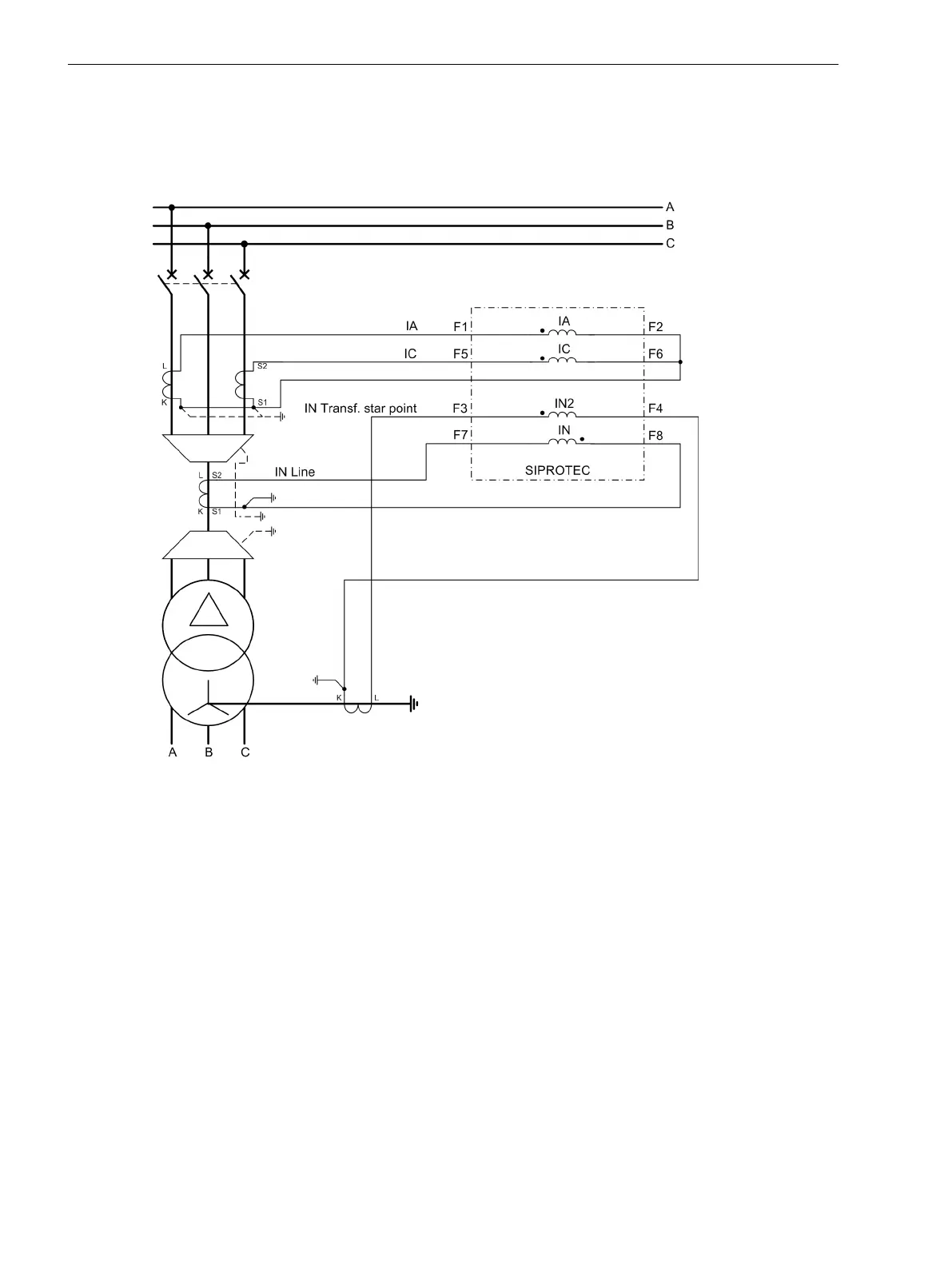

Figure C-12
Current transformer connections to two phase currents and two ground currents; IN/INs –
ground current of the line, IN2 – ground current of the transformer starpoint
Important! Grounding of the cable shield must be effected at the cable side
For busbar-side grounding of the current transformers, the current polarity of the device is changed via
address 0201. This also reverses the polarity of the current input IN/INs. When using a cable-type current
transformer, the connection of k and I at F8 and F7 must be exchanged.
Connection Examples
C.1 Connection Examples for Current and Voltage Transformers
448 SIPROTEC 4, 7SJ80, Manual
E50417-G1140-C343-A8, Edition 12.2017
