Siemens SIPROTEC 7SJ80 User Manual

[grundbild6zei-ohne-u-ohne-erw-mw-20070116, 1, en_US]

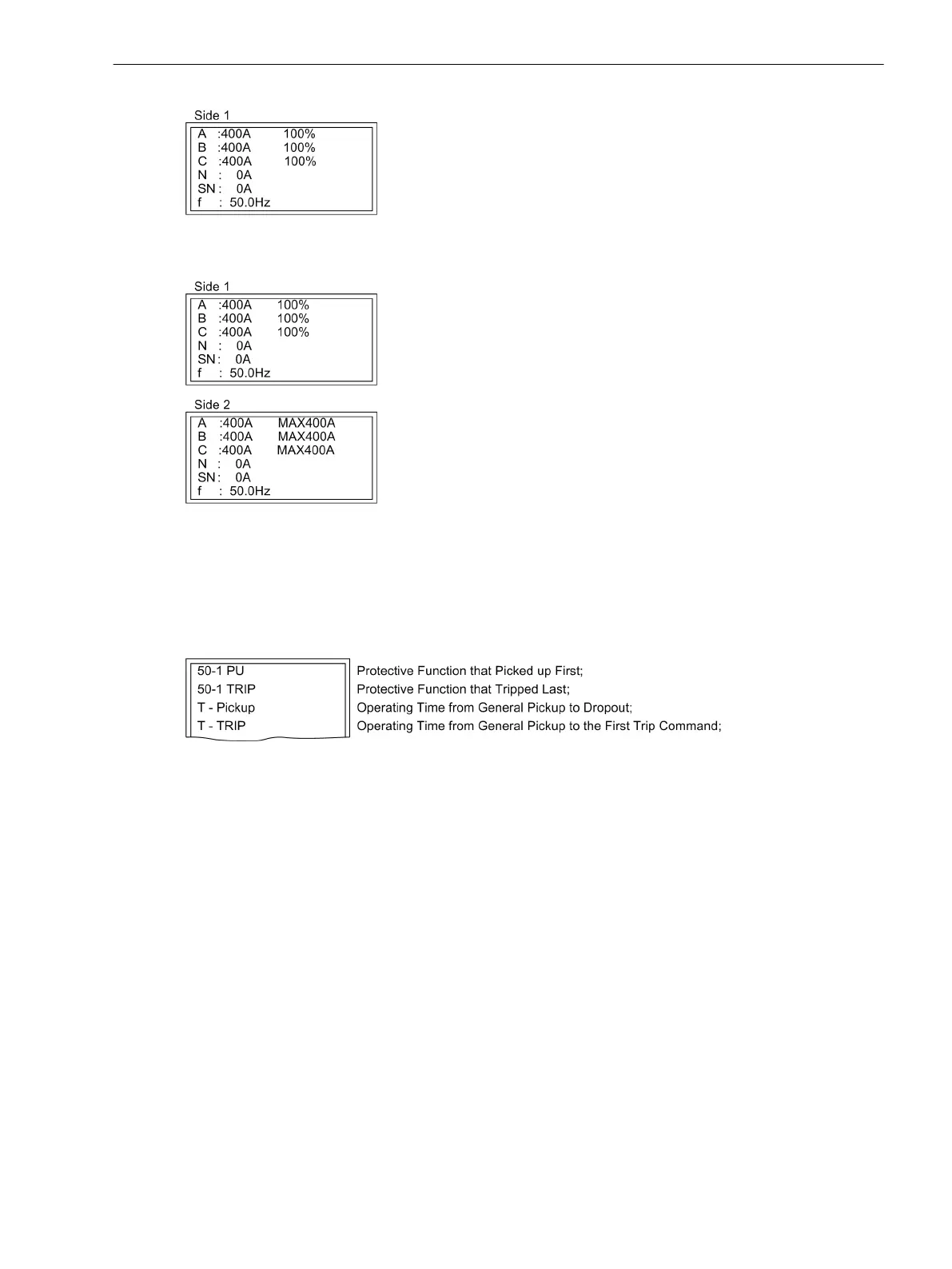

Figure E-3 Default display of the 7SJ80 for models without V and extended measured values
[grundbild6zei-ohne-u-und-erw-mw-20070116, 1, en_US]
Figure E-4 Default display of the 7SJ80 for models without V with extended measured values
Spontaneous Fault Display
After a fault has occurred, the most important fault data are automatically displayed after general device
pickup in the order shown in the picture below.
[anzeige-spontanmeldungen-im-display-des-geraetes-260602-kn, 1, en_US]
Figure E-5 Representation of spontaneous messages on the device display
Default Settings and Protocol-dependent Functions
E.5 Default Display
SIPROTEC 4, 7SJ80, Manual 467
E50417-G1140-C343-A8, Edition 12.2017

Siemens SIPROTEC 7SJ80 Specifications

General

Rated Frequency	50/60 Hz
Rated Current	1 A / 5 A
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to +70°C
Current Transformer Inputs	4
Application	Protection of feeders, motors, transformers, and generators
Rated Voltage	100-240 V AC/DC
Communication Protocols	IEC 61850, Modbus, DNP3, IEC 60870-5-103
Display	Graphical LCD
Mounting	Flush mounting
Protection Functions	Overcurrent, Earth fault
Communication Interfaces	Ethernet, RS485
Housing	Plastic
Weight	Approx. 1.5 kg
