98
Description Of Specific Functions
V800 Series High Performance Closed-Loop Vector Inverter User Manual
4: 2 wire Control 2/AI1 setting
Refer to Figure 7-2-B for the application wiring diagram, and refer to Table 7-1 for macro- related parameters.
5: 3 wire control 1/AI1 setting
Refer to Figure 7-3 for the application wiring diagram, and refer to Table 7-1 for macro- related parameters.
Table 7-1: Table Application Macro Association Self-Setting Parameters
Parameters
Application
Macro 1
Application
Macro 2
Application
Macro 3
Application
Macro 4
Application
Macro 5
Remarks
F0.1.15
0
0
0
0
0
Locked
F0.1.16
0
0
0
0
0
Locked
F0.1.18
1.00
1.00
1.00
1.00
1.00
Locked
F0.2.25
2 (0~2)
3
9
9
9
Locked
F0.3.33
0
0
1
1
1
Locked
F0.3.35
—
—
0
1
2
Locked
F0.4.37
0
0
0
0
0
Locked
F0.4.38
0
0
0
0
0
Locked
F3.0.01
—
—
—
—
19
Locked
F3.0.02
—
—
7
7
7
Locked
F3.0.03
—
—
8
8
8
Locked
F3.0.04
13
13
13
13
13
Locked

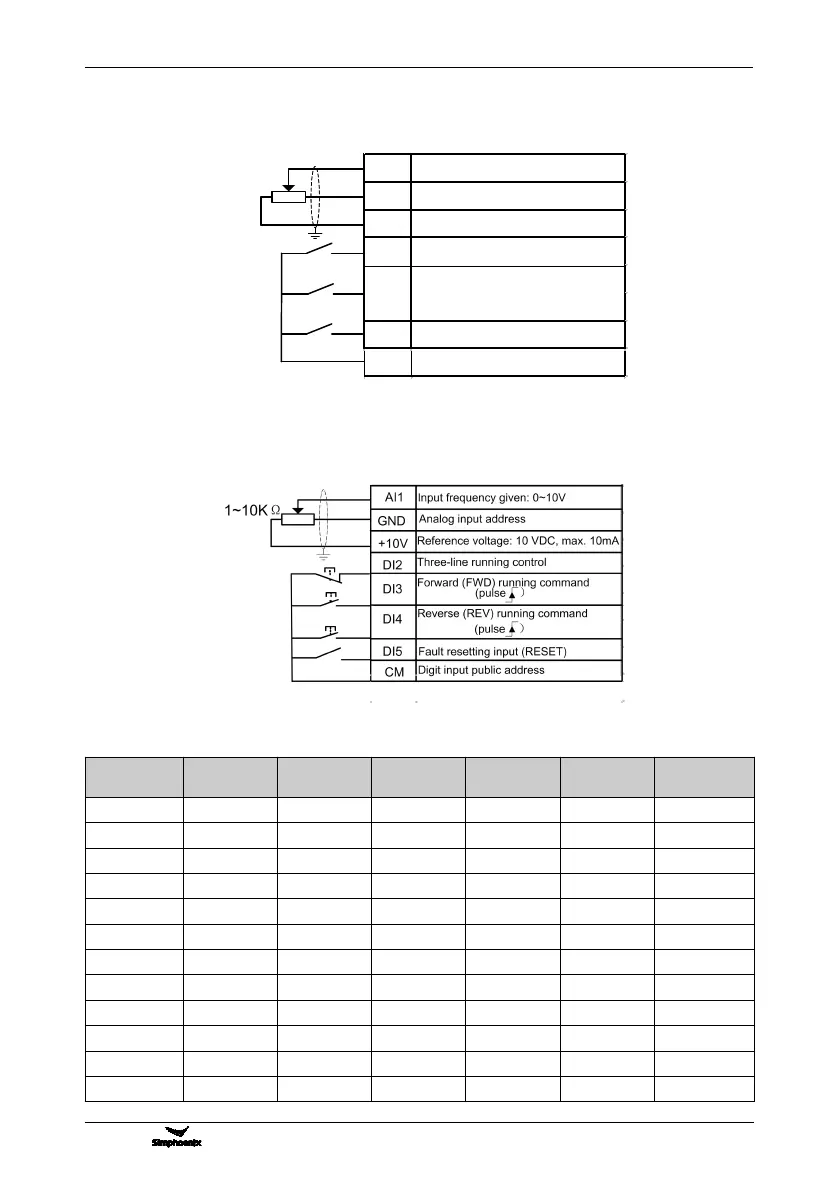

Figure 7-3 3 wire control 1/AI1 setting wiring diagram
AI1
Input frequency given: 0~10V
GND
Analog input address
+10V
Reference voltage:10 VDC, max. 10mA
DI3
Switch disengaged: FWDcommand
Switch engaged: REV command
DI4
Running command
DI5
Fault resetting input (RESET)
1~10KΩ
CM
Digit input public address
Figure 7-2-B 2 wire control 2/AI1 setting wiring diagram
