Description Of Specific Functions
107
V800 Series High Performance Closed-Loop Vector Inverter User Manual
5: Channel 1 amplified by Channel 2
Frequency set value = set value 1* (1+set value 2 /[F0.2.31])

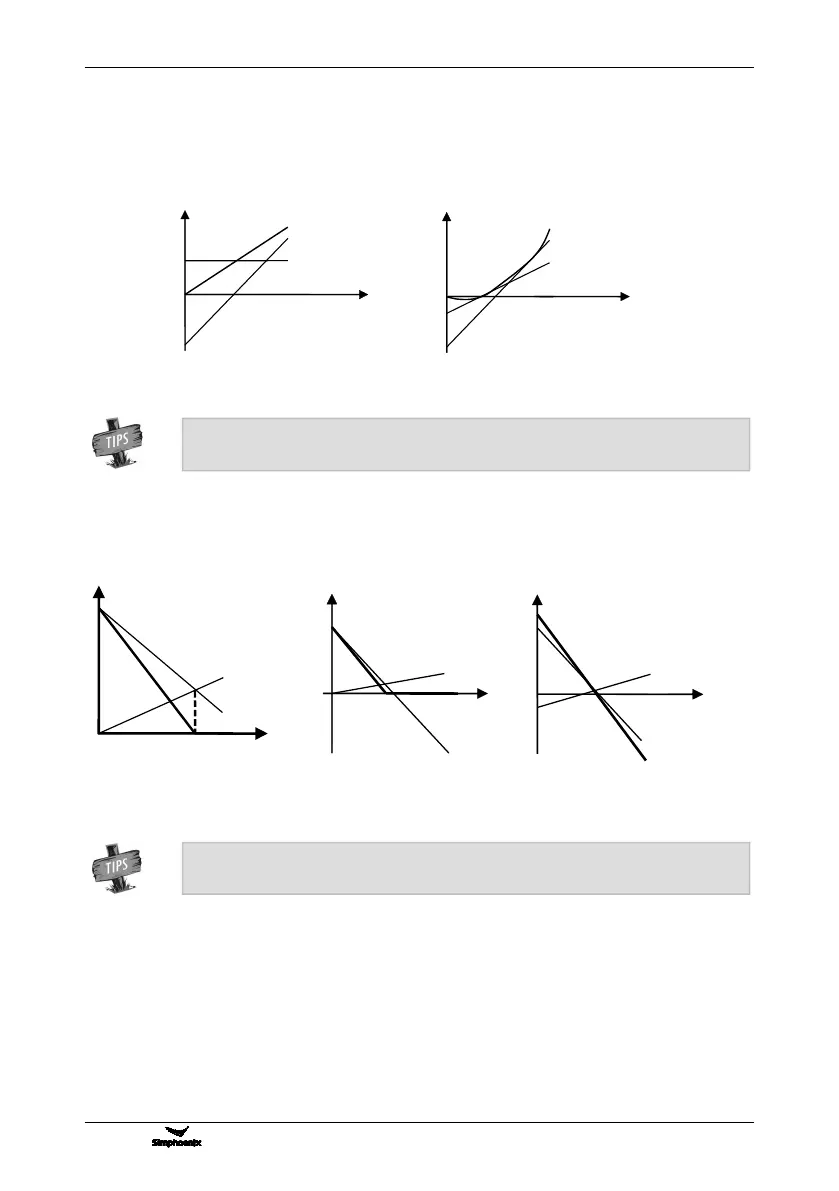

The sketch of frequency combination setting is shown as below:
6: Channel 1 - Channel
Frequency set value = setting 1 - set value 2
The sketch of frequency combination setting is shown as below:
Figure 7-9-B Frequency Combination Sketch 2
Figure 7-9-C Frequency combination sketch 3
Combination value
Set value 1( unipolarity)
Set value 2( bipolarity)
（a）
Combination value
Set value 1( bipolarity)
Set value 2( bipolarity)
（b）
Figure 7-9-B Frequency combination sketch 2

The combination results will only be in bipolarity when the setting source 1 is set in
bipolarity way. (Figure b)
 The combination result will only be in bipolarity when only two setting sources are set in
bipolarity way. (Figure c)
Combination value
Set value 1 (bipolarity)
Set value 2(unipolarity)
（b）
Combination value
Set value 1 (bipolarity)
Set value 2 (bipolarity)
（c）
（a）
Combination value
Set Value 1(unipolarity)
Set value2 (unipolarity)
