Choosingwhichechodatale(s)toreplay
Everytimeyourecordechodata,theinformationisstoredontheProcessorUnitharddisk.
Dependingonyourinitialsettings,thelesmayalsobestoredonaUSBharddiskorevena
networkdisk.Theechodatalescanberetrieved,andplayedbackontheST90.
Context

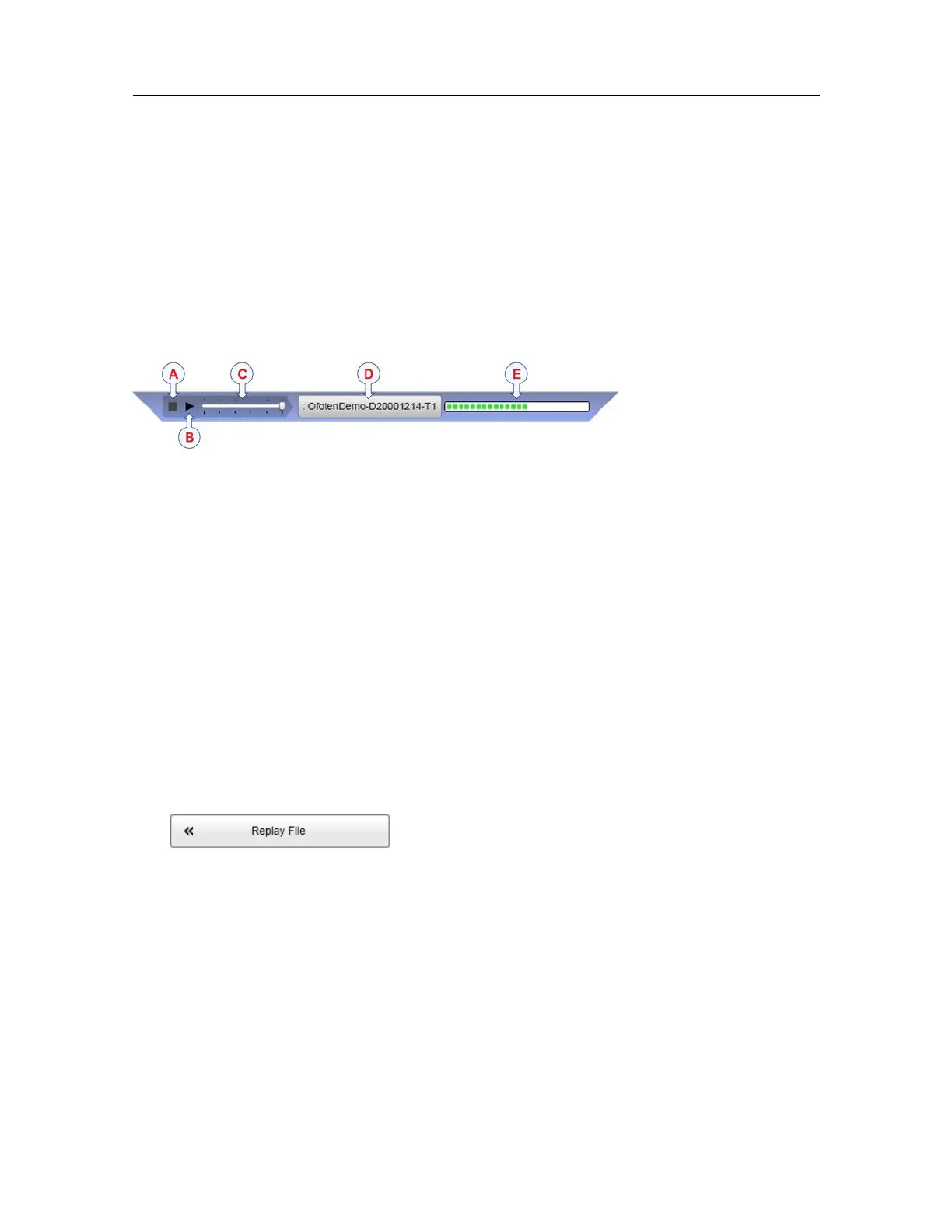

Allplaybackiscontrolledbythereplaybar.
AStop:Selectthisbuttontostoptheplayback.
BPlay/Pause:Selectthisbuttontostarttheplayback,ortopauseit.
CReplaySpeed:Selectthissliderandmoveitsidewaystoadjustthereplayspeed.
DReplayFile:Thebuttonshowsyouwhichleyouarereplaying.Selectthebuttonto
opentheReplayFiledialogbox.
EPlaybackProgress:Thisbarshowsyoutheprogressofthereplaysequence.Ifyou
havechosentorestartthereplayle(s)automatically(inaloop),thegreenindicator
startsfromlefteverytimethelerestarts.
Procedure
1OpentheOperationmenu.
2SelectOperationtoseetheavailablechoices.
3SelectReplayFiletoopenthedialogbox.
TheReplayFiledialogboxallowsyoutochoosewhichle(s)toplayback.Thele
namesweregeneratedautomaticallyduringrecording,andeachleisidentiedwith
thetimeanddateitwasmade.
4SelectAddtochooseareplayle.
Astandardoperatingsystemdialogboxisusedtolocateandselectthelesyouwish
touse.
5Ifyouwishtoreplaytheselectedlesinan"endless"loop,selectLoop.
6SelectOKtosavetheselectedsettingsandclosethedialogbox.
SimradST90OperatorManual
