 The left impression on the left side (sinister)
 The right impression on the right side (dexter)
(side reference considered from the patient’s viewpoint).
ds Production
Color-coded object holders and bases
free Stage
Left = front, right = back
mono Scan

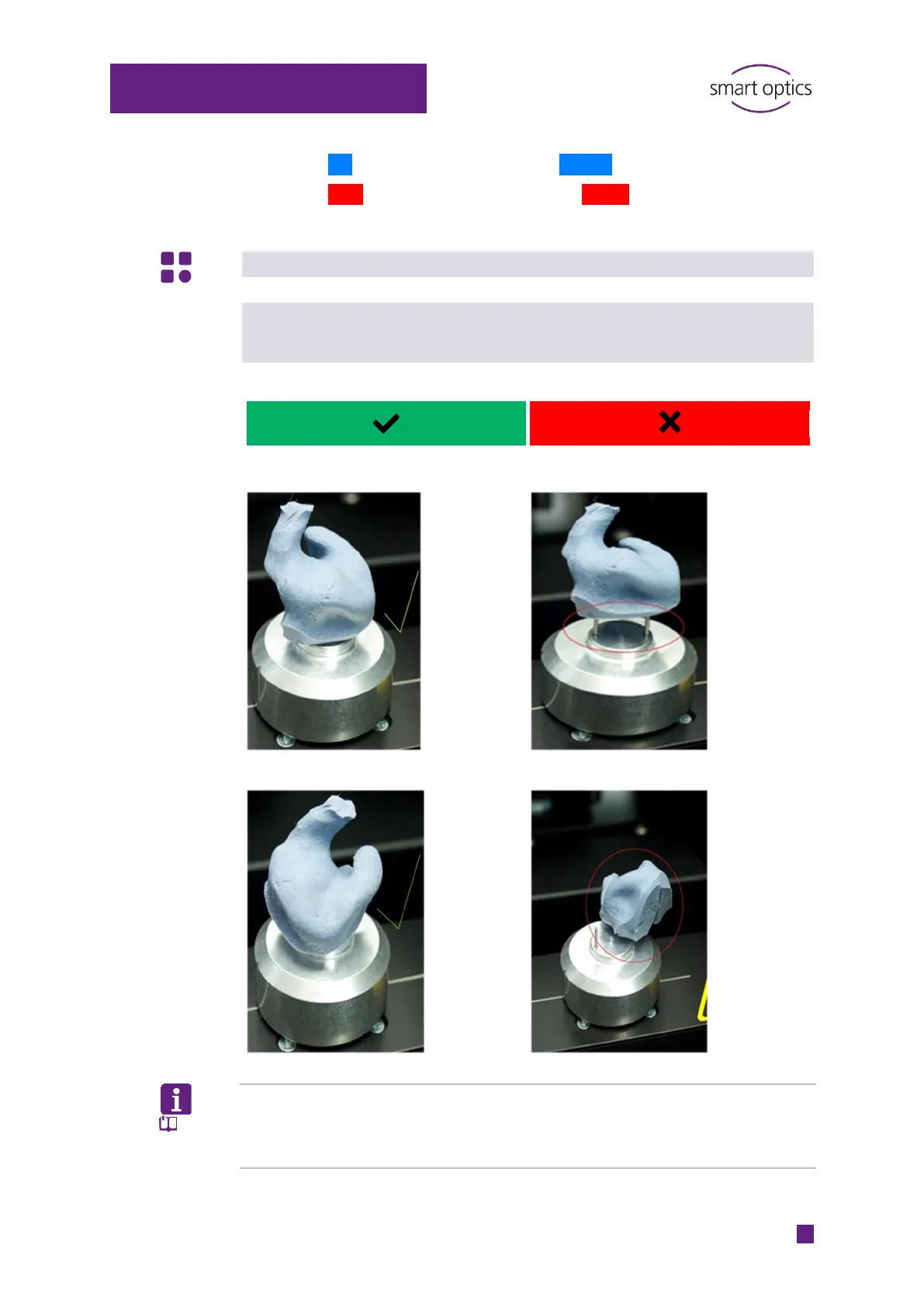

Only one base (impressions must be scanned one after
the other)
 Gapless fit

Alignment parallel to the guiding line
 Gap between impression and object holder

No alignment with the guiding line
 Flat side on both needles
 Shaped side on one needle
TIP
The axes can move when inserting and removing objects. The axes move back
to the home position with the Move to service function.
