Key Snapshots
Chapter 4 Keys
Key Snapshots
Key settings other than the key on/off status and the key
priority can all be instantaneously saved in a dedicated
register, for recall when required. A key snapshot
comprises three values: a cross-point button number, key
memory full mode, and independent key transition, and
can be called in any combination.
There are four key snapshot registers for each keyer.
Key Snapshot Operations
Key snapshot operations are carried out in the downstream
key control block (MKS-8032 DSK Fader Module). Each
keyer is provided with four dedicated key snapshot
registers.

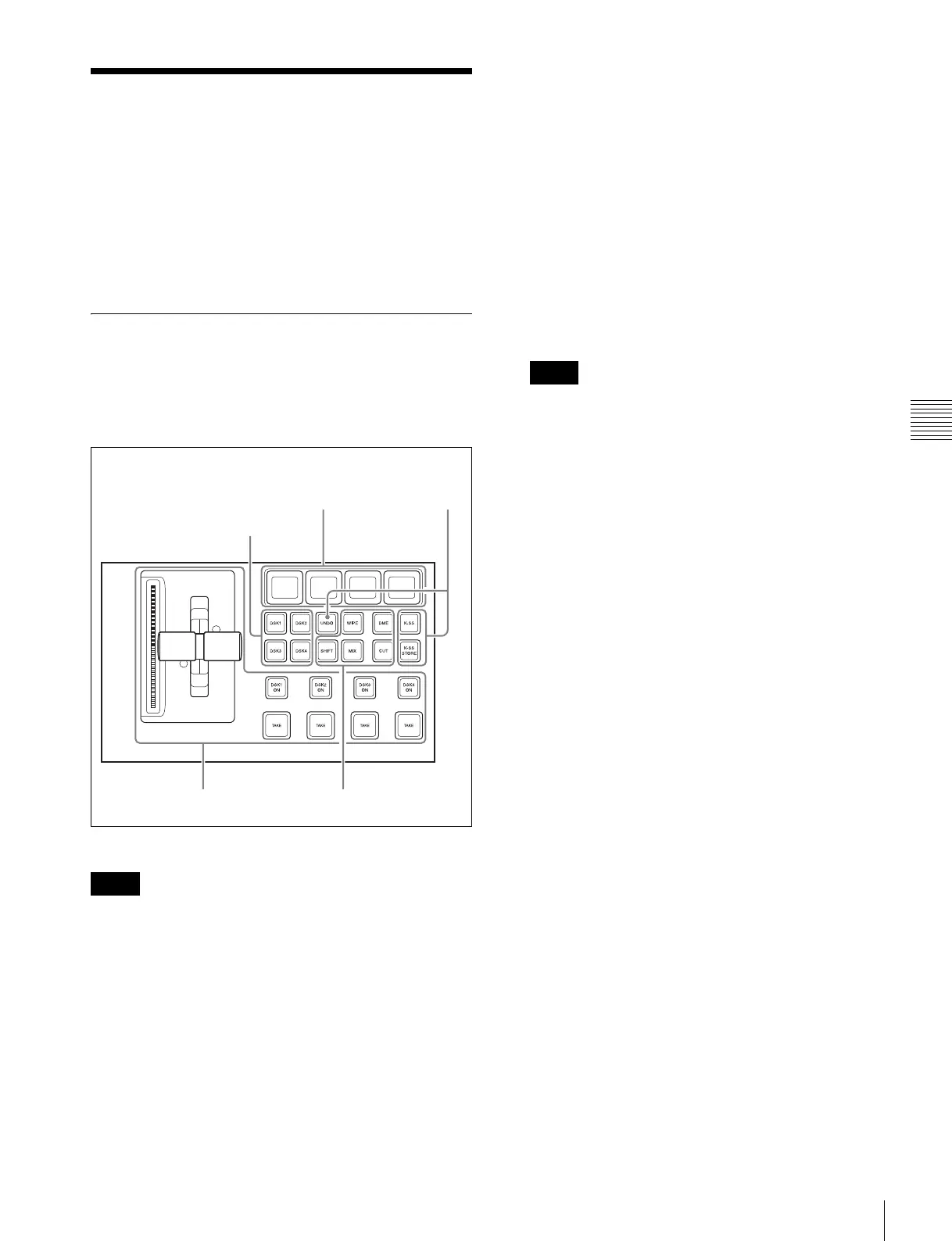

Downstream key control block (MKS-8032)
To select [Key5] to [Key8] or [DSK5] to [DSK8] in the
downstream key control block, a previous assignment in
the Setup menu is required (see page 345).
Saving a key snapshot
For example, the following procedure saves the state of the
DSK1 settings.
1
Press the key delegation button [DSK1], turning it on.
2
Press the [K-SS] button, turning it on.
The system switches to key snapshot mode, and the
key source name display/key snapshot buttons show
the status of registers 1 to 4 for DSK1.
Off: Nothing is saved in the register.
Lit orange: Settings are saved in the register.
For a register holding a snapshot, the register name is
shown as up to eight characters.
3
Hold down the [K-SS STORE] button, and press the
key source name display/key snapshot button
corresponding to the register in which you want to
save the snapshot.
The key source name display/key snapshot button
which you pressed lights yellow.
If you save a key snapshot in a register for which the
button is lit orange or yellow, the existing contents of
the register are overwritten.
Recalling a key snapshot
For example, the following procedure recalls the state of
the DSK1 settings.
1
Press the key delegation button [DSK1], turning it on.
2
Press the [K-SS] button, turning it on.
3
Press the key source name display/key snapshot button
corresponding to the register you want to recall.
The button you pressed lights yellow, and this recalls
the key snapshot.
To cancel the recall, press the [UNDO] button.
